Specifications & Procedures: Specifications

For rear wheel alignment procedures, see REAR SUSPENSION article.

Use illustrations for front and rear wheel alignment specifications. See Fig 1 and Fig 2 .

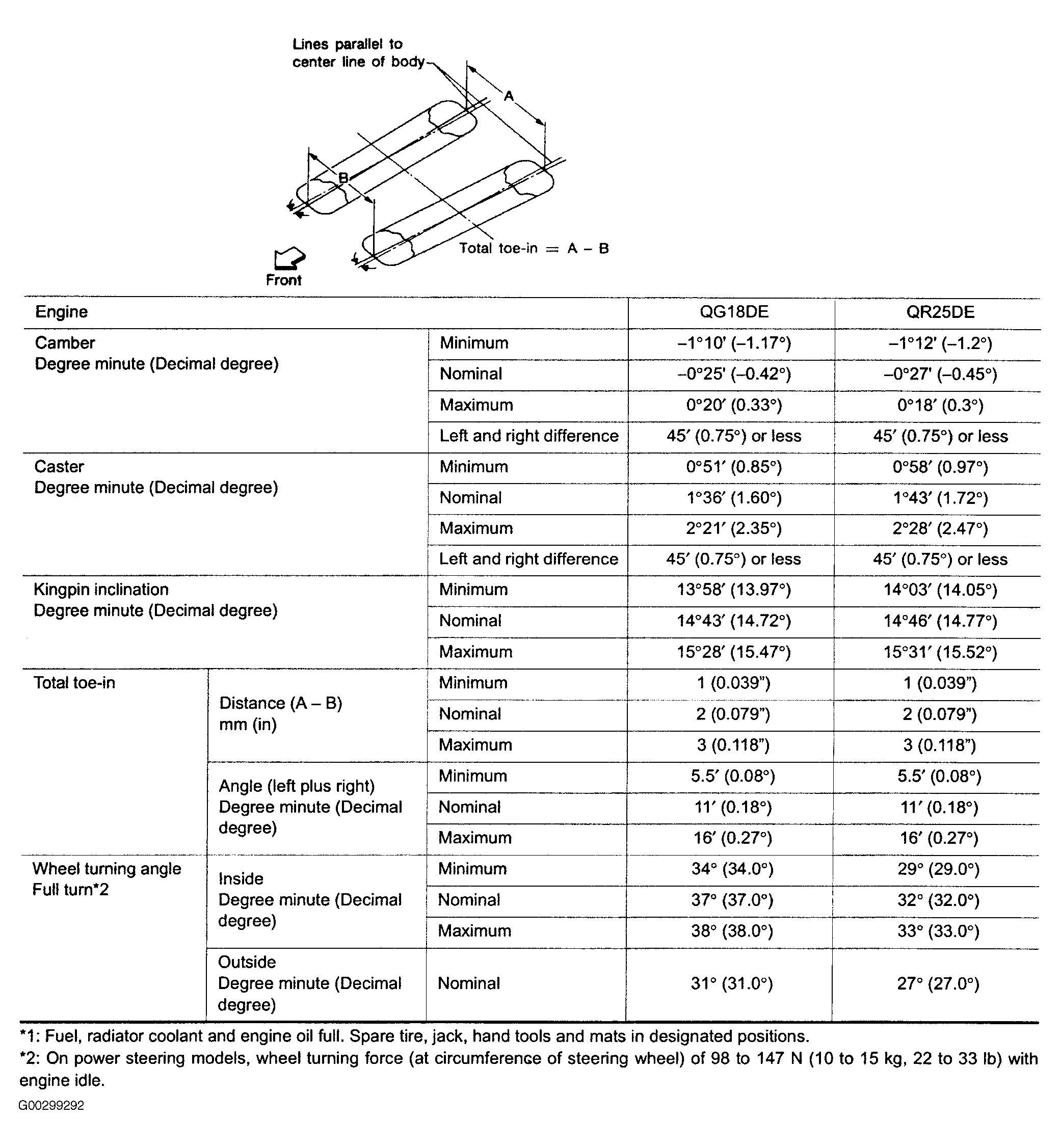

Fig 1: Front Wheel Alignment Specifications (Sentra)

Courtesy of NISSAN MOTOR CO., U.S.A.

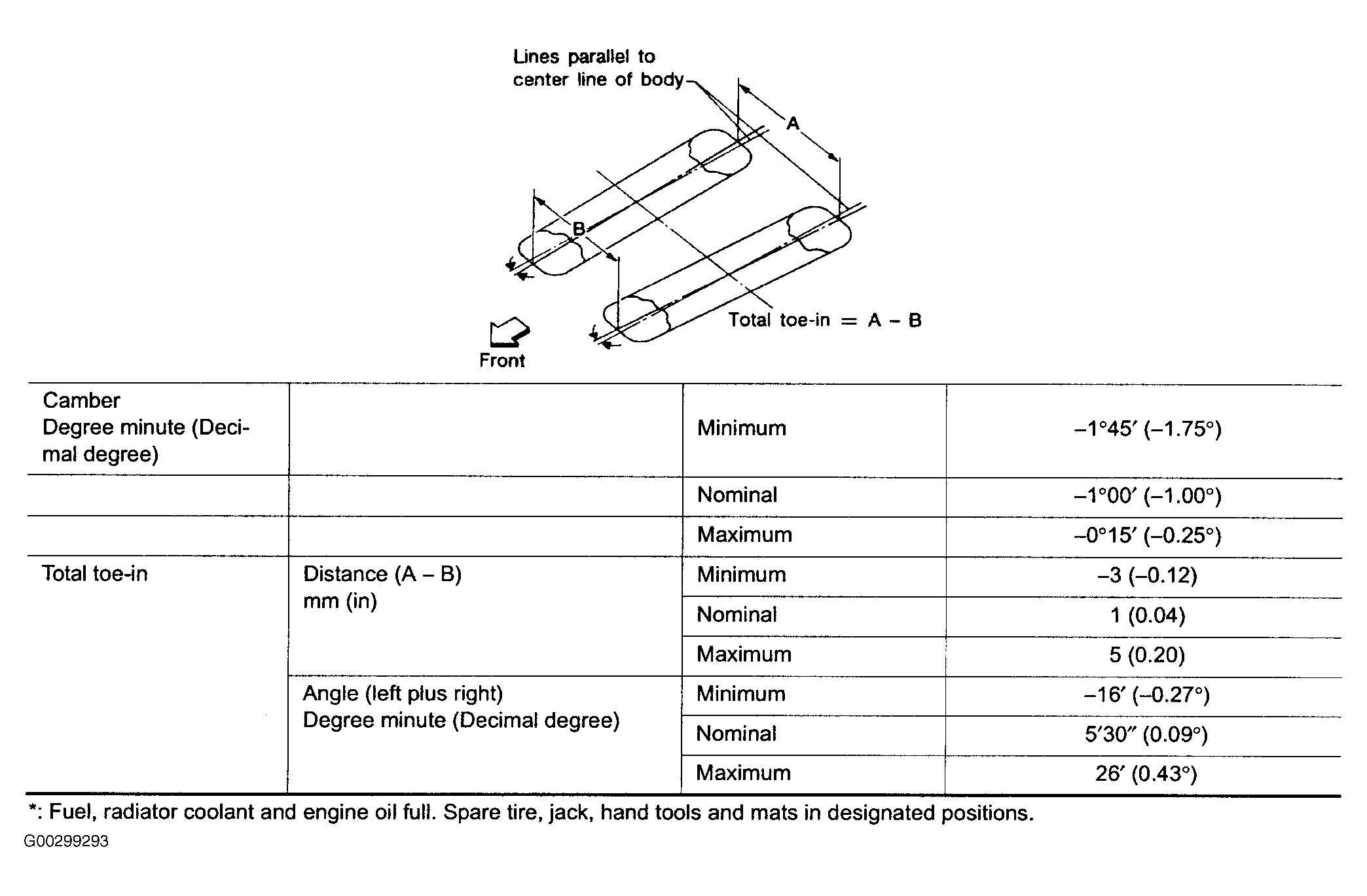

Fig 2: Rear Wheel Alignment Specifications (Sentra)

Courtesy of NISSAN MOTOR CO., U.S.A.
