Key Interlock Cable: Removal

  1. Unlock slider by squeezing lock tabs on slider from adjuster holder and remove interlock rod from cable.

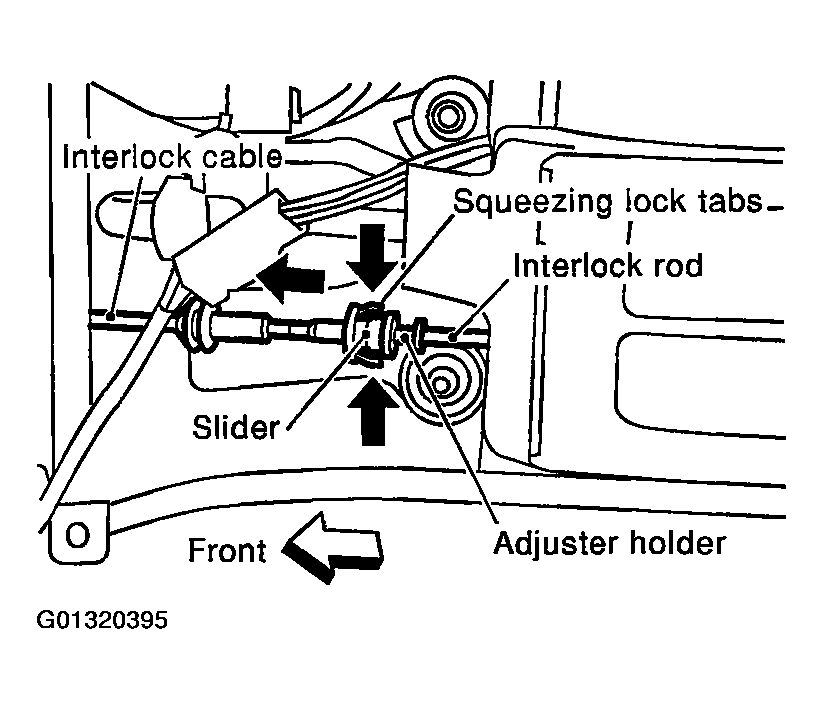

    Fig 1: Removing Interlock Rod From Cable
    G01320395Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove lock plate from steering lock assembly and remove key interlock cable.

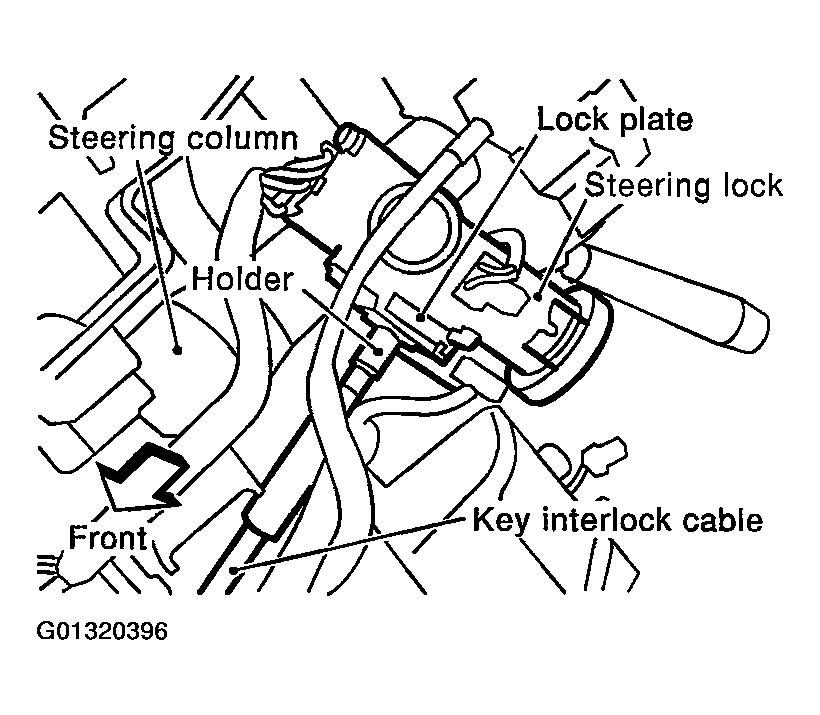

    Fig 2: Removing Lock Plate From Steering Lock Assembly And Removing Key Interlock Cable
    G01320396Courtesy of NISSAN MOTOR CO., U.S.A.
