Control Valve Upper Body: Assembly: Notes

Lay control valve body down when installing valves. Do not stand the control valve body upright.

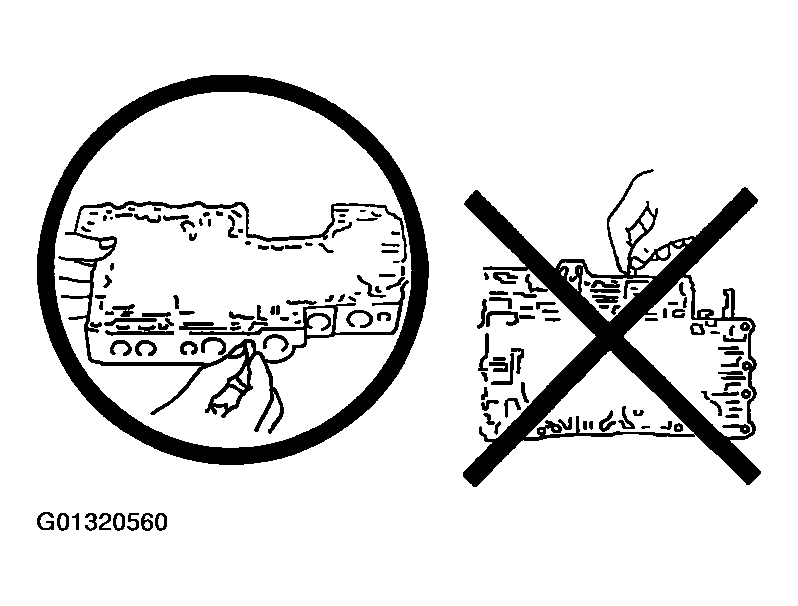

Fig 1: Identifying Control Valve Body Positions

Courtesy of NISSAN MOTOR CO., U.S.A.

Lubricate the control valve body and all valves with ATF. Install control valves by sliding them carefully into their bores.
- Be careful not to scratch or damage valve body.

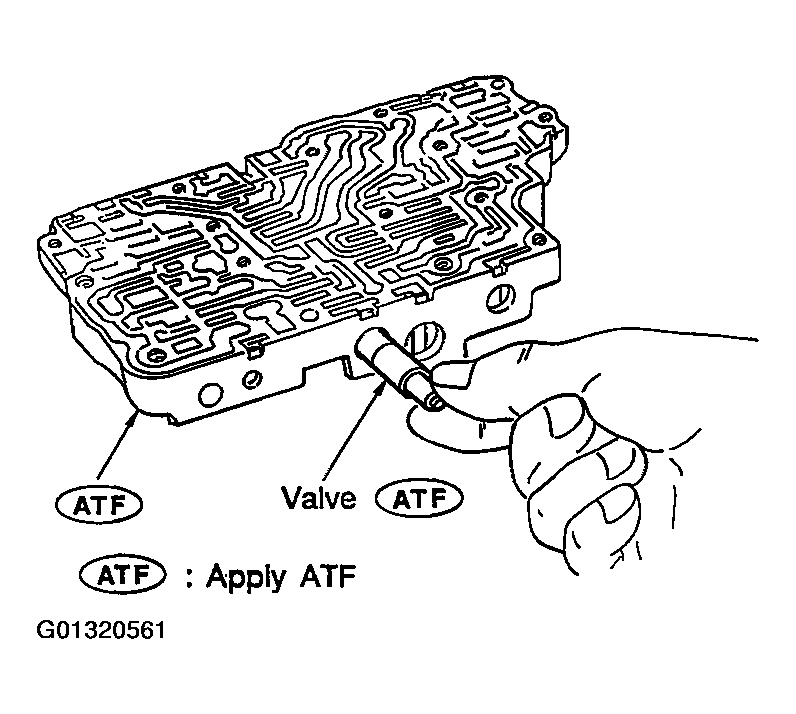

Fig 2: Installing Control Valves
Courtesy of NISSAN MOTOR CO., U.S.A.
Wrap a small screwdriver with vinyl tape and use it to insert the valves into their proper positions.

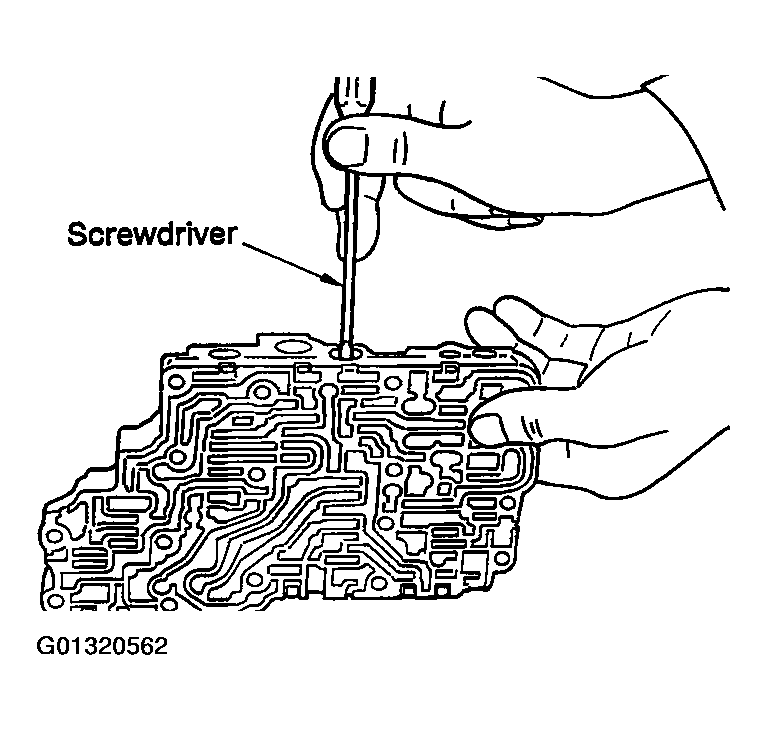

Fig 3: Inserting Valves Into Proper Positions
Courtesy of NISSAN MOTOR CO., U.S.A.
