Service Data And Specifications (SDS): Accumulator: O-Ring

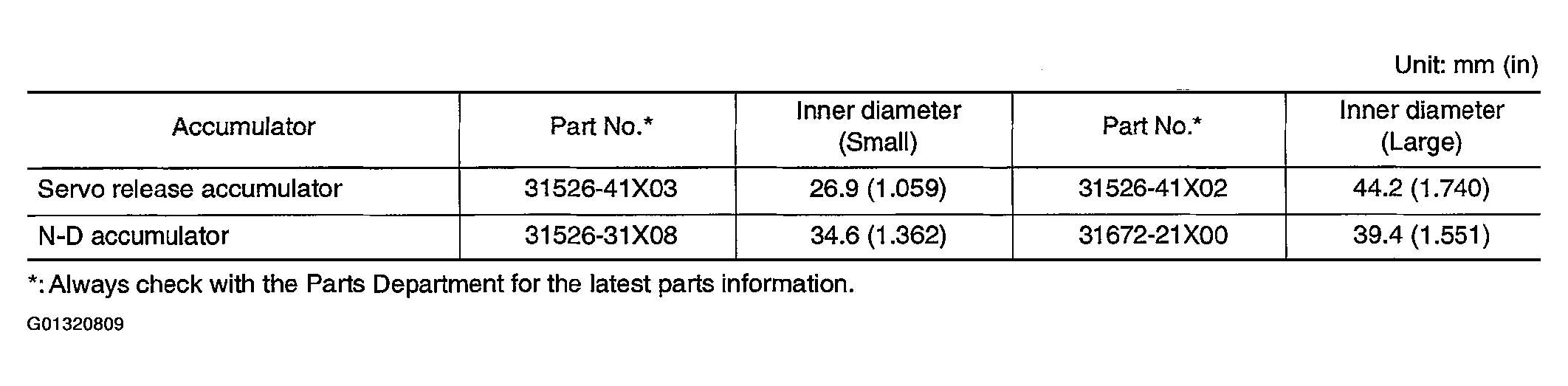

Fig 1: Accumulator O-Ring Specifications
G01320809Courtesy of NISSAN MOTOR CO., U.S.A.
