Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

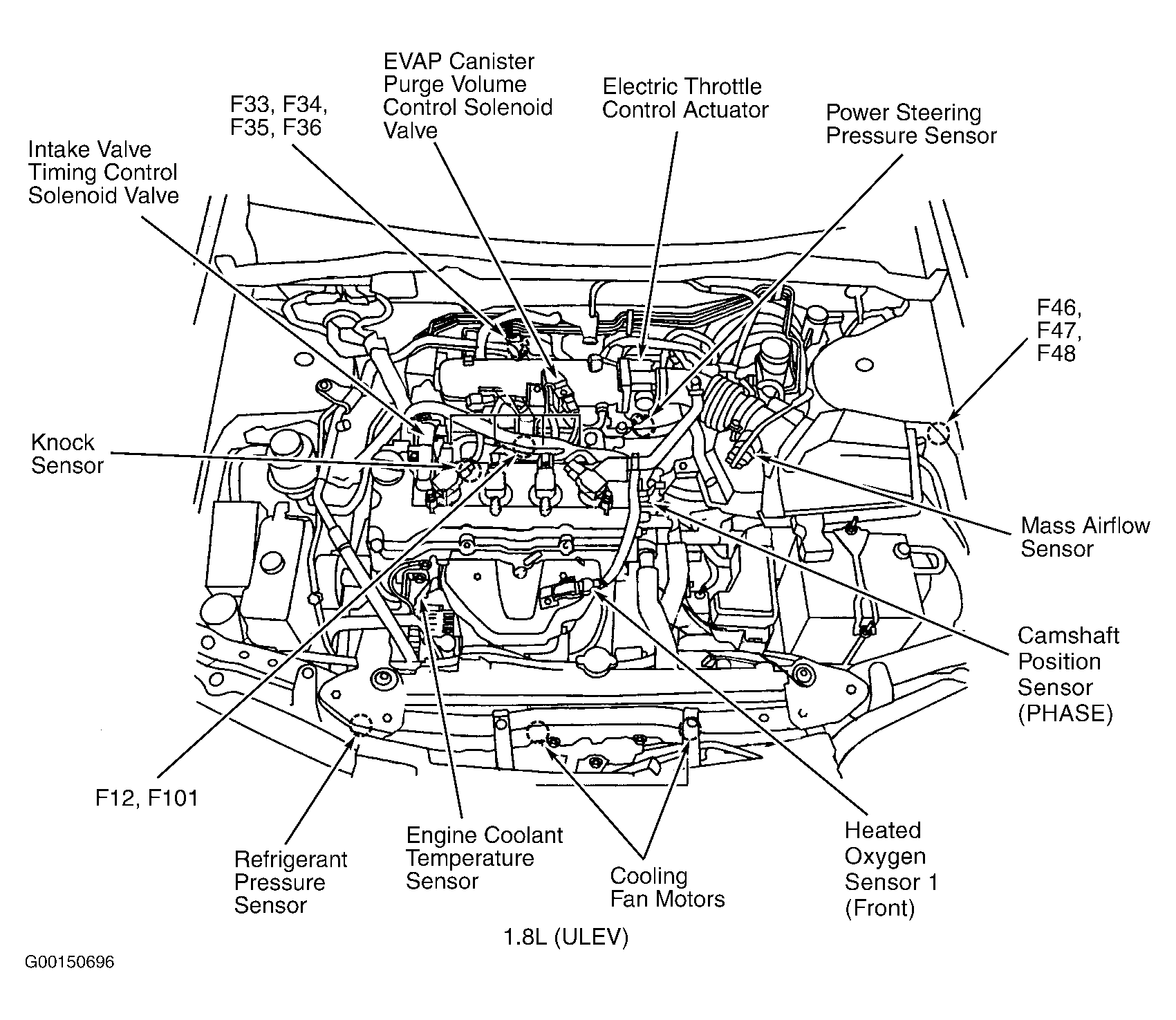

Fig 1: Engine Compartment (1.8L ULEV)

Courtesy of NISSAN MOTOR CO., U.S.A.

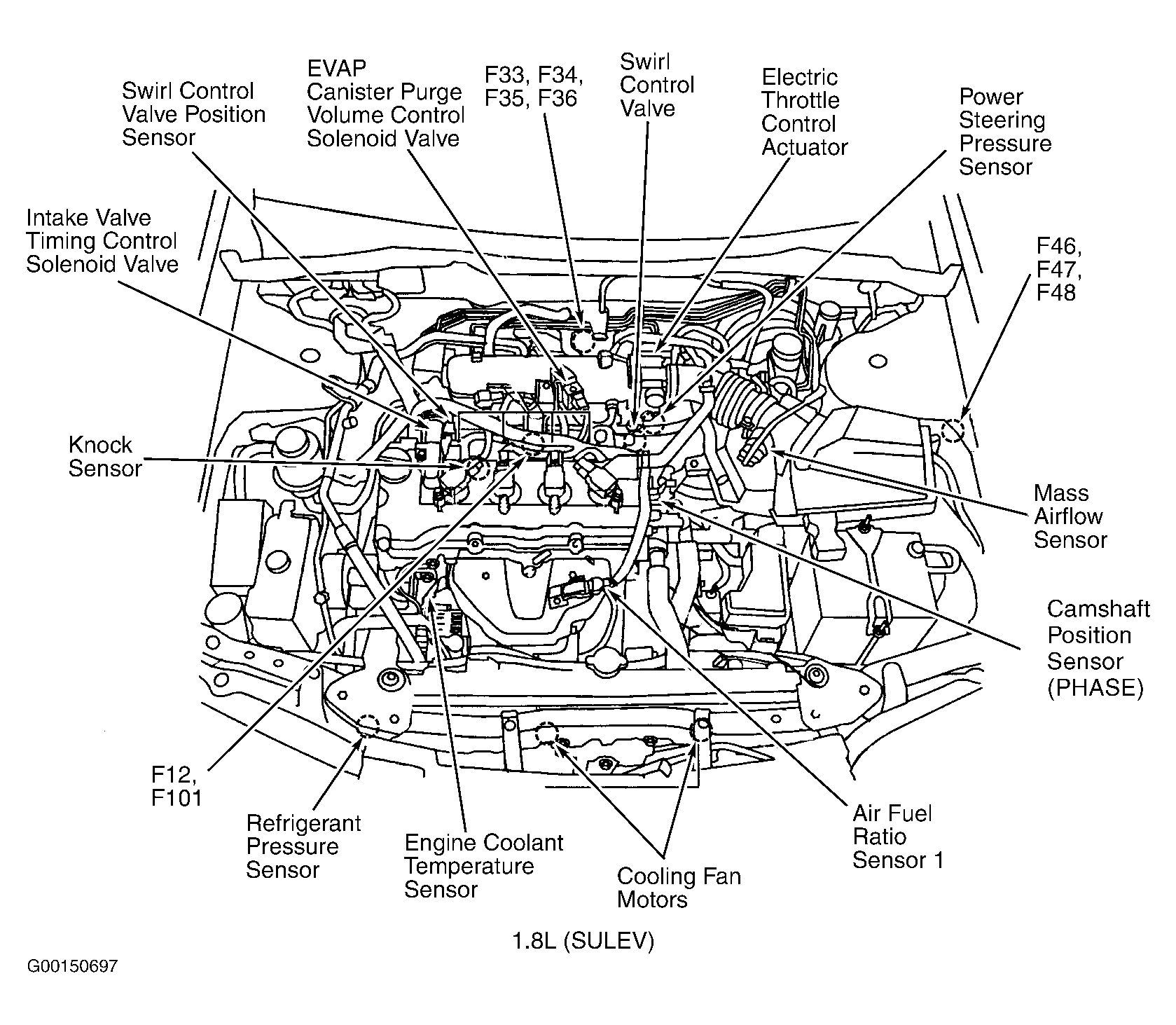

Fig 2: Engine Compartment (1.8L SULEV)

Courtesy of NISSAN MOTOR CO., U.S.A.

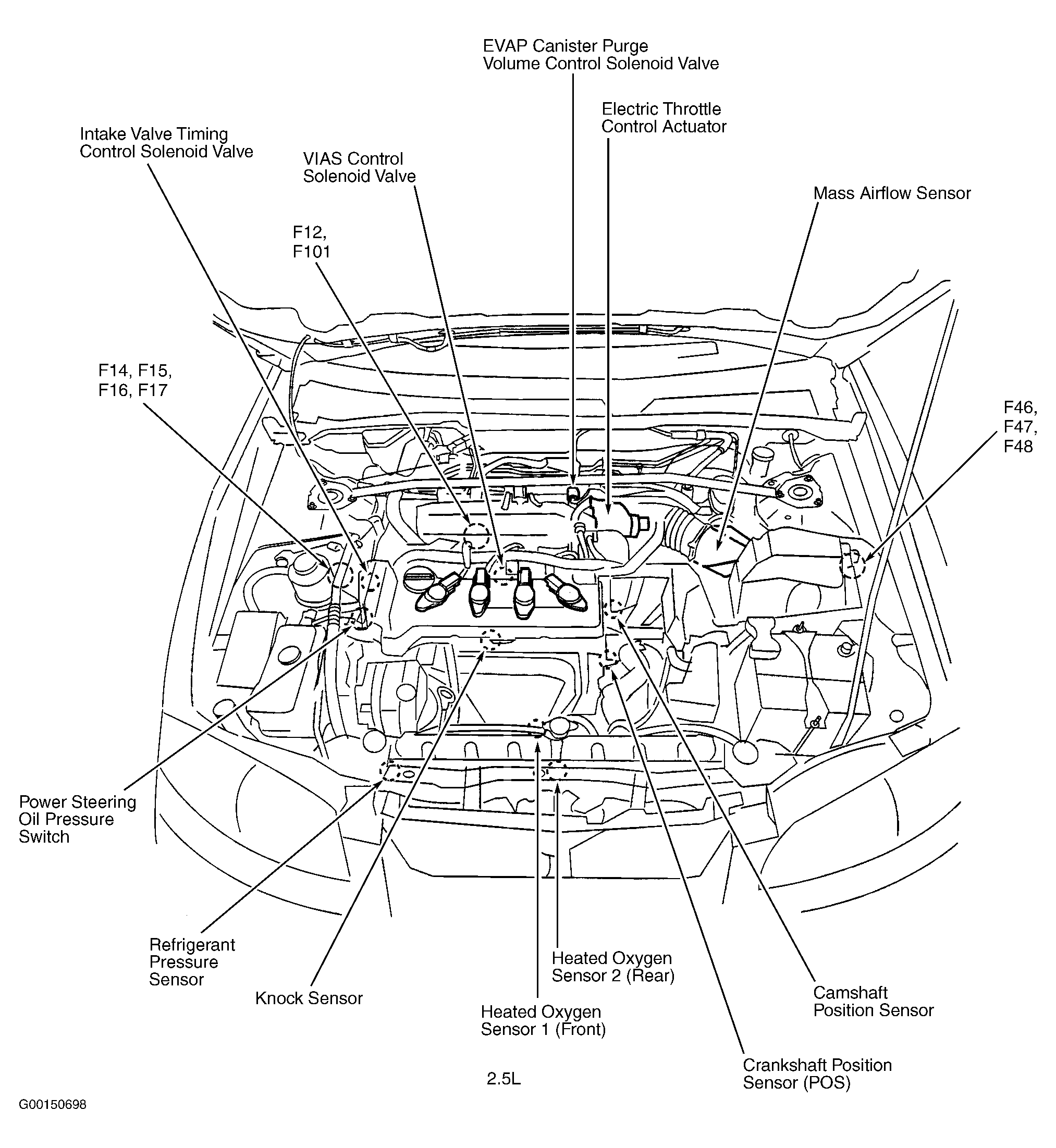

Fig 3: Engine Compartment (2.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Front Of Vehicle

Courtesy of NISSAN MOTOR CO., U.S.A.

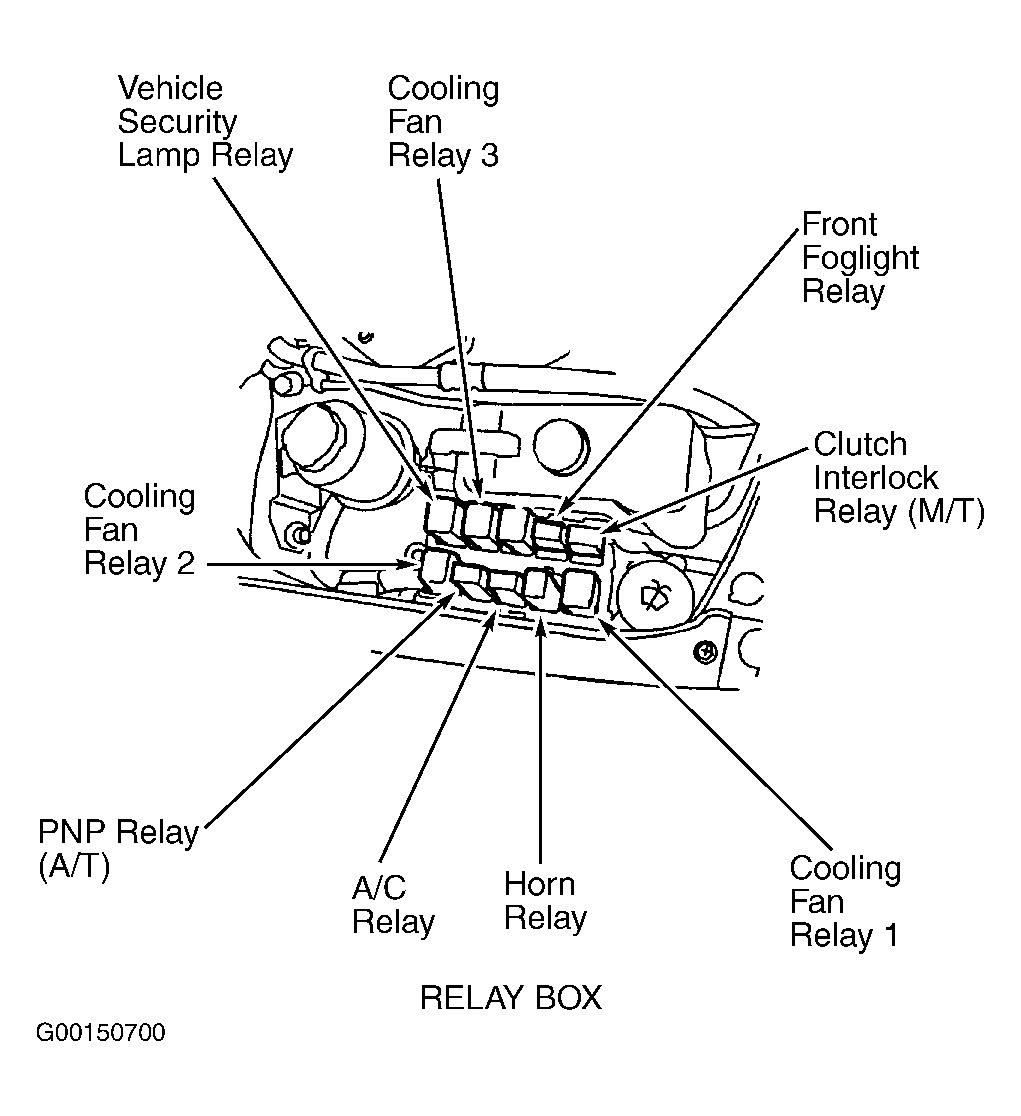

Fig 5: Relay Box

Courtesy of NISSAN MOTOR CO., U.S.A.

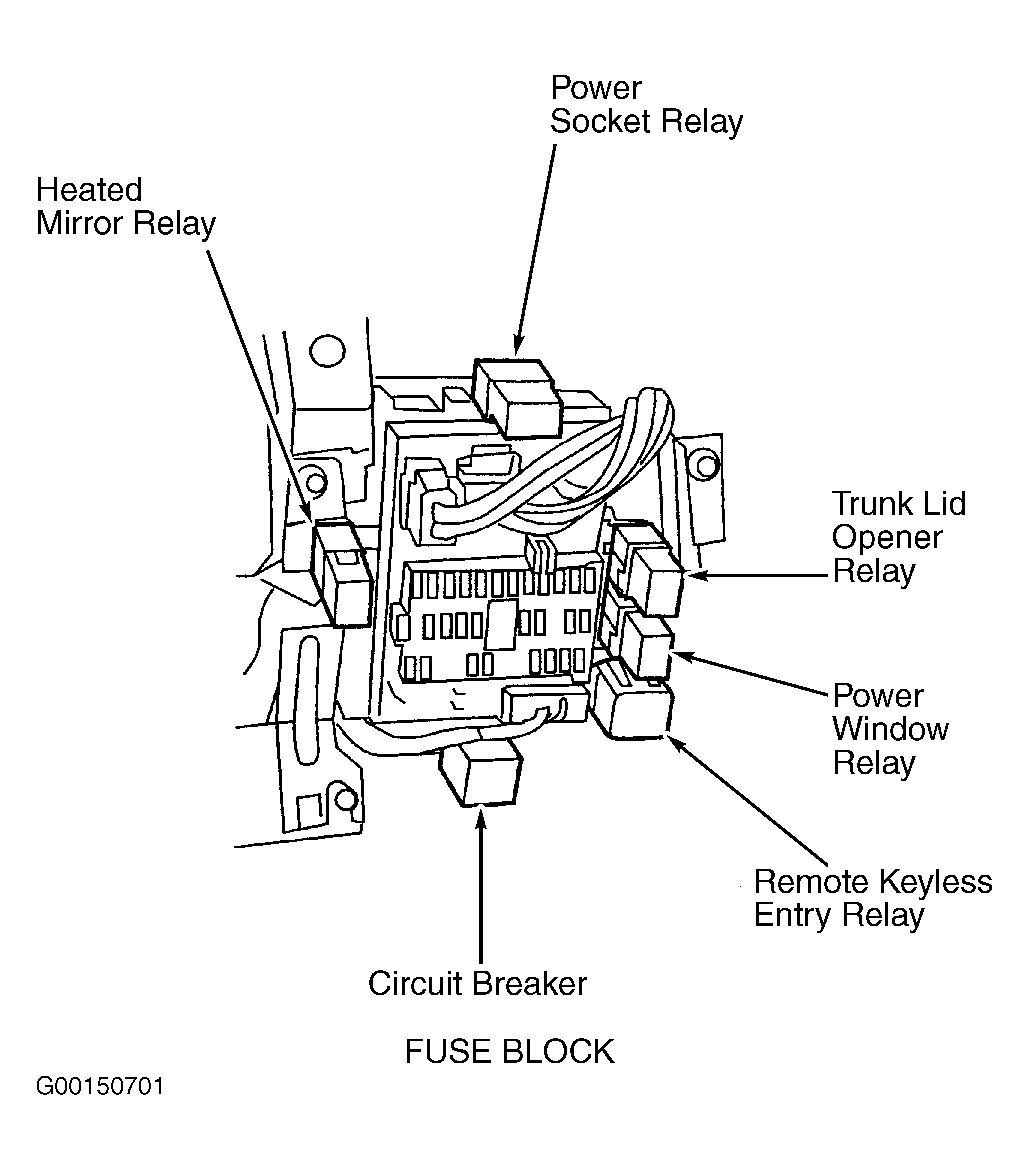

Fig 6: Fuse Block

Courtesy of NISSAN MOTOR CO., U.S.A.

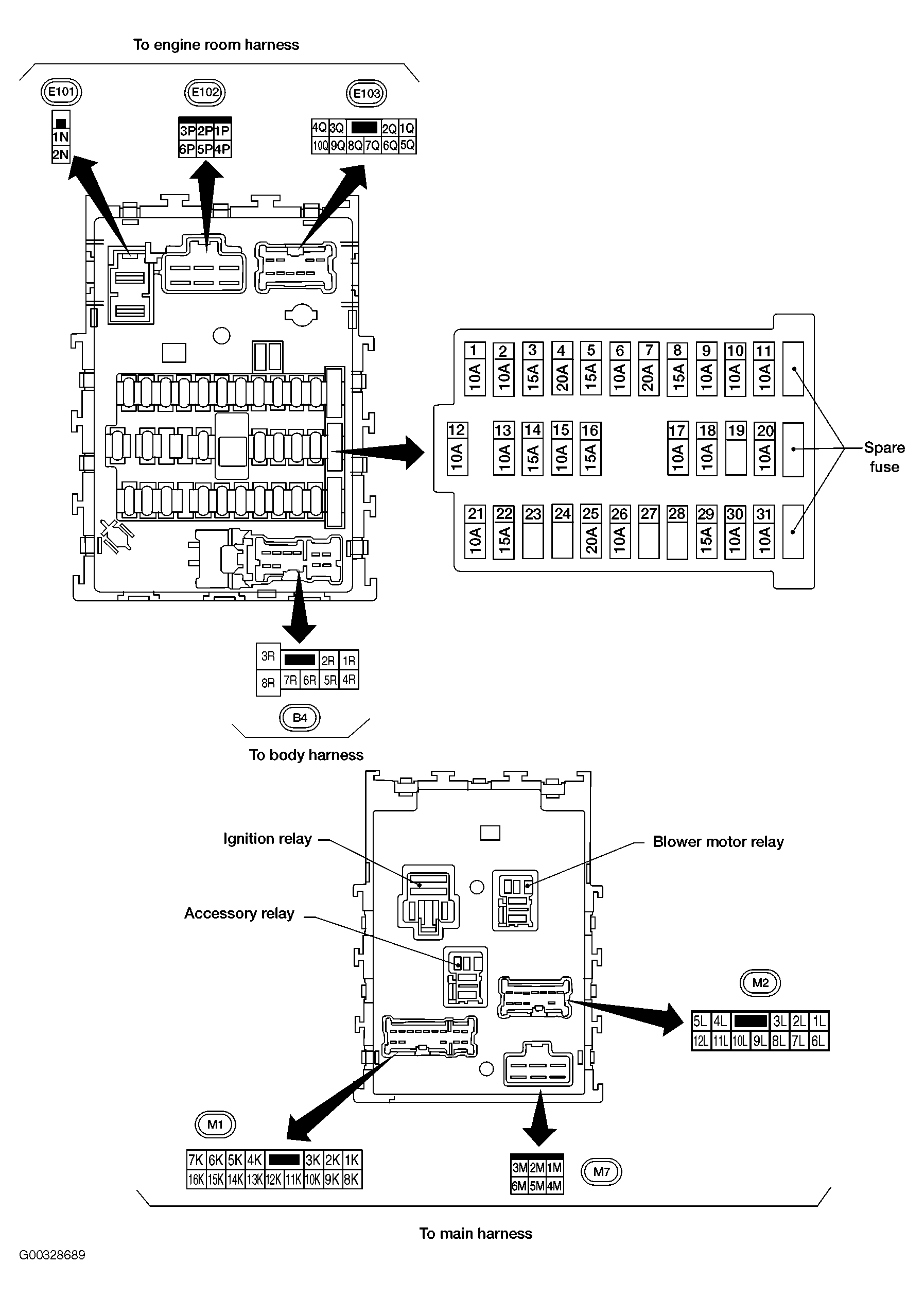

Fig 7: Fuse Block Rear Relay Identification

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Front Of Passenger Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.
