Flow Chart

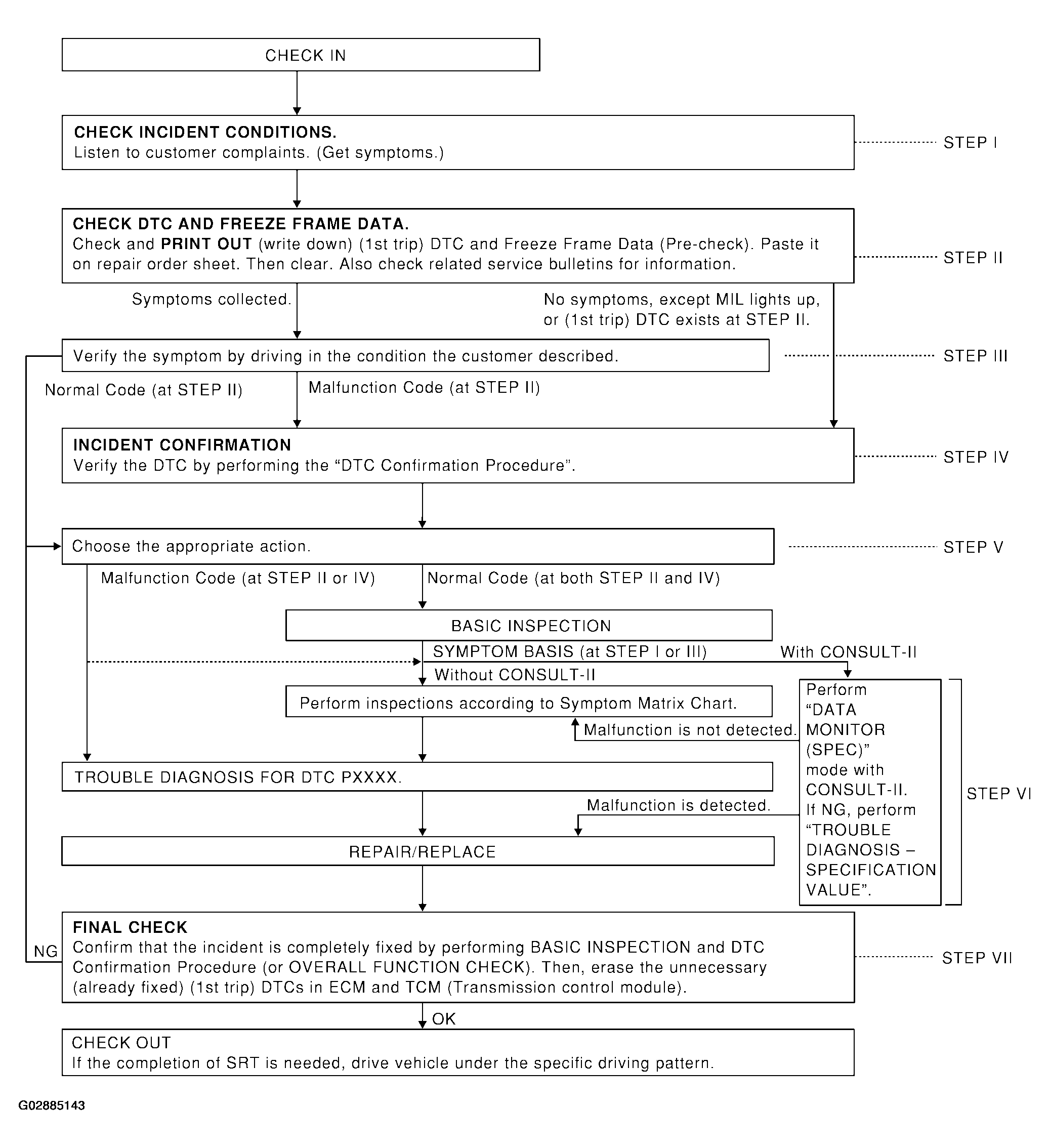

Fig 1: Work Flow - Flow Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

*1 If time data of "SELF-DIAG RESULTS" is other than [0] or [1t], perform "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".
*2 If the incident cannot be verified, perform "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".
*3 If the on board diagnostic system cannot be performed, check main power supply and ground circuit. Refer to "POWER SUPPLY AND GROUND CIRCUIT ".
*4 If malfunctioning part cannot be detected, perform "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".
*5 DRIVING PATTERN
*6 TROUBLE DIAGNOSIS - SPECIFICATION VALUE
