With M/T Models

  1. Turn ignition switch OFF.
  2. Disconnect stop lamp switch harness connector.
  3. Check harness continuity between stop lamp switch terminals 1 and 2 under the following conditions.

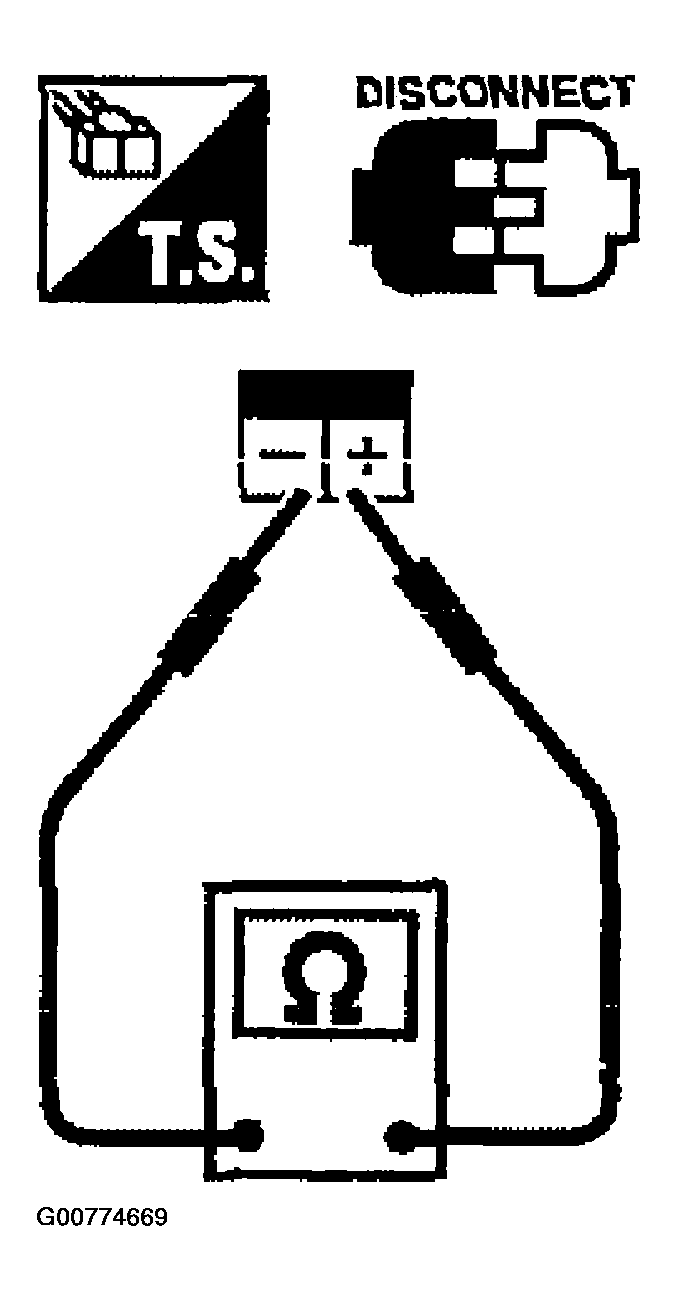

    Fig 1: Checking Harness Continuity Between Stop Lamp Switch Terminals 1 And 2
    G00774669Courtesy of NISSAN MOTOR CO., U.S.A.

    If NG, adjust stop lamp switch installation, refer to DISC & DRUM and perform step 3 again.
