Throttle Position Sensor
- Reconnect all harness connectors disconnected.
- Perform THROTTLE VALVE CLOSED POSITION LEARNING .
- Turn ignition switch ON.
- Set selector lever to D position (A/T models) or 1st position (M/T models).

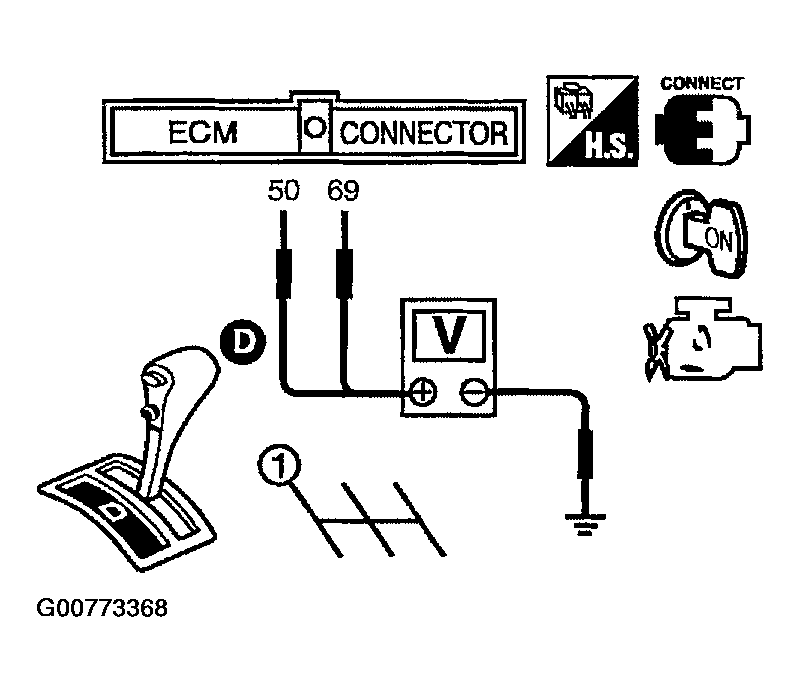

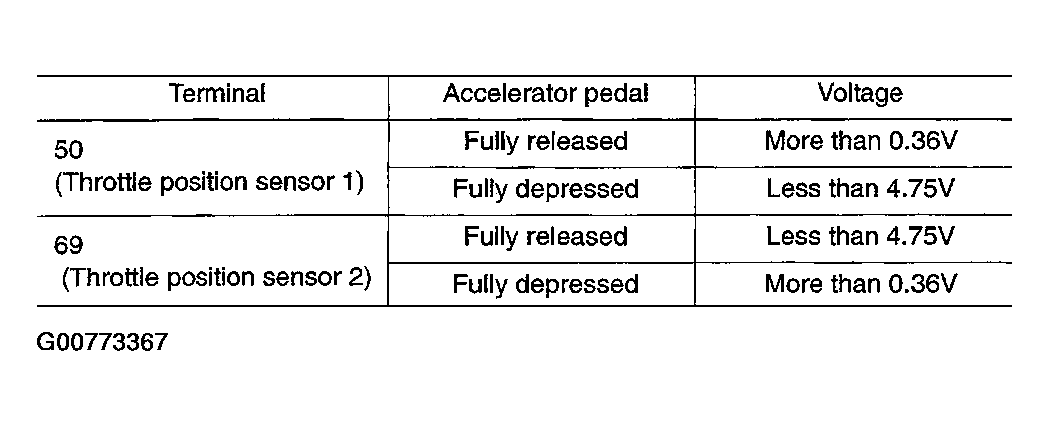

- Check voltage between ECM terminals 50 (TP sensor 1 signal), 69 (TP sensor 2 signal) and engine ground under the following conditions.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
- If NG, replace electric throttle control actuator and go to the next step.
- Perform THROTTLE VALVE CLOSED POSITION LEARNING .
- Perform IDLE AIR VOLUME LEARNING .
