NOTE:
If DTC U1000 or U1001 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000, U1001. Refer to DTC U1000, U1001 CAN COMMUNICATION LINE .

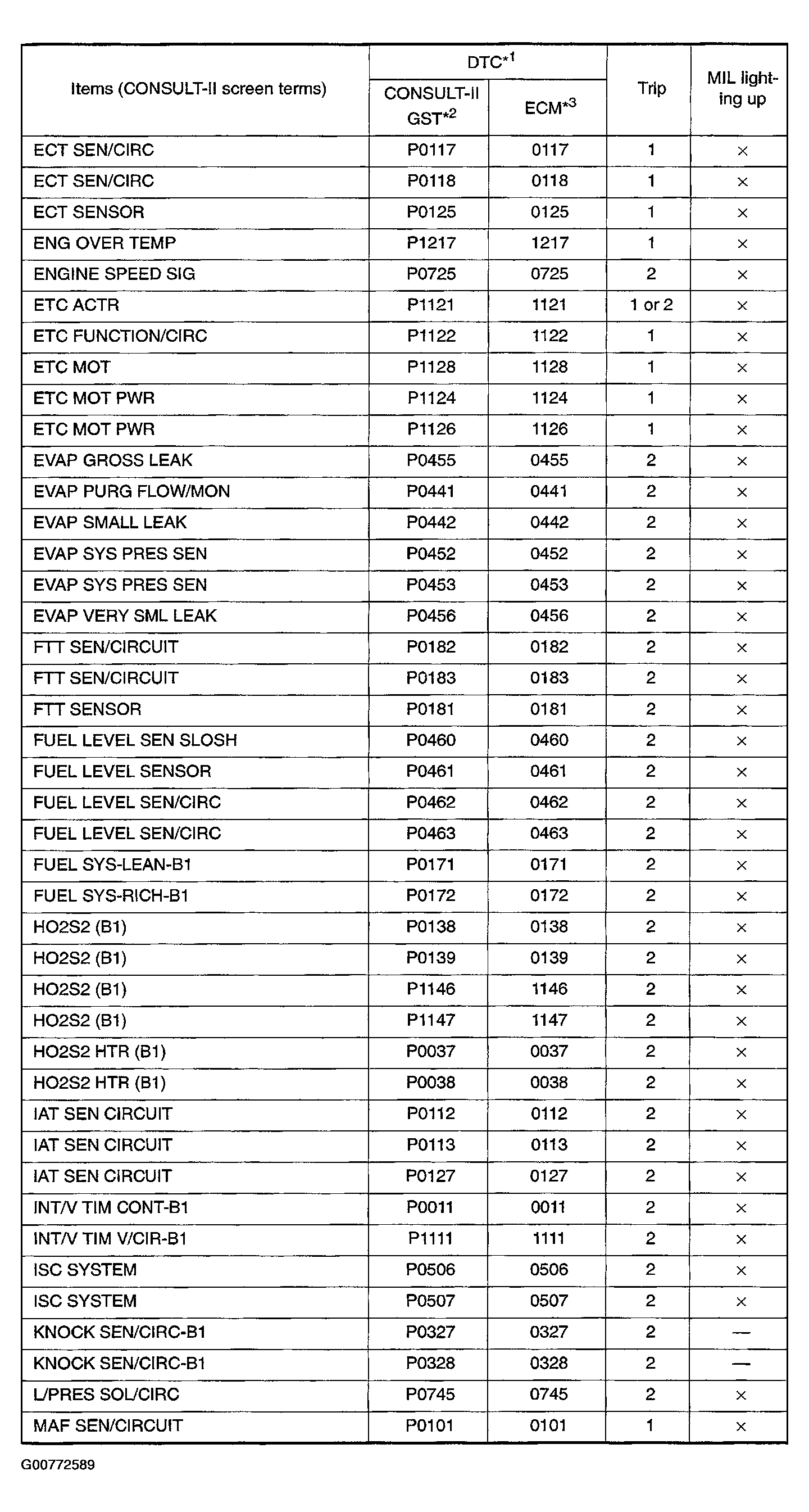

Fig 1: Diagnostic Trouble Code Alphabetical Chart (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

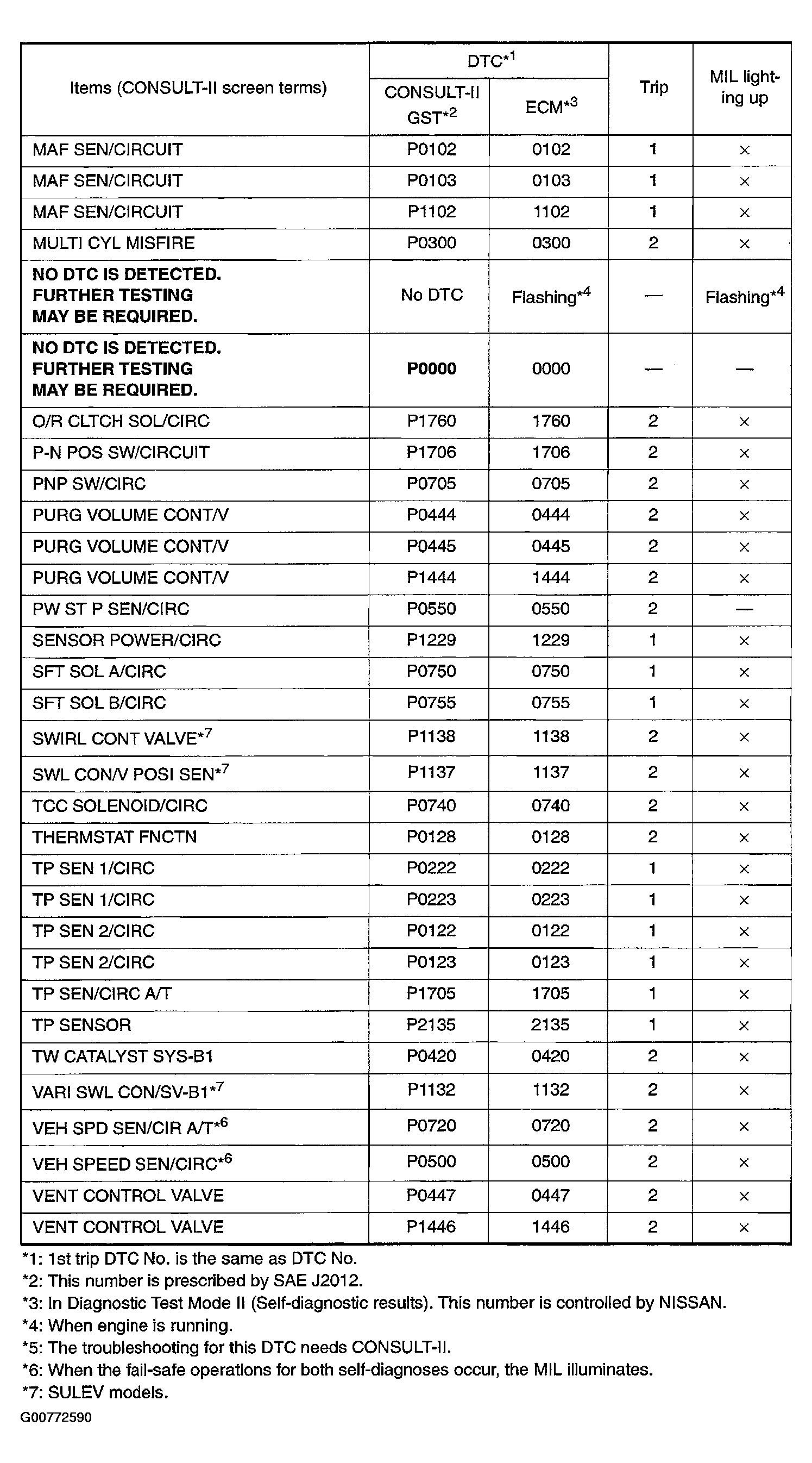

Fig 2: Diagnostic Trouble Code Alphabetical Chart (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

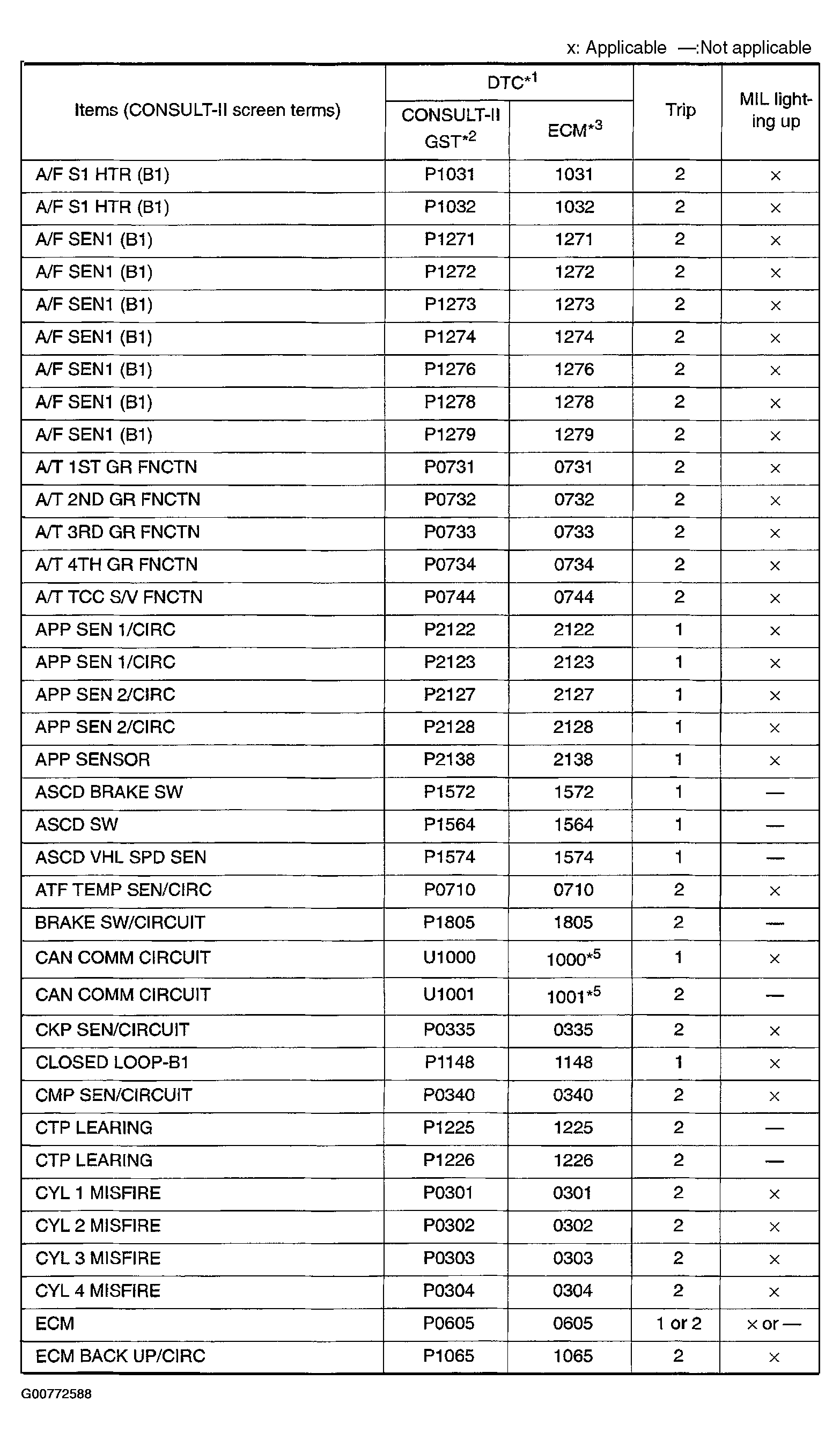

Fig 3: Diagnostic Trouble Code Alphabetical Chart (3 Of 3)
