Engine Control System - Qr25DE
>>
Engine Control System
>>
System Diagram
>>
A/T Models Except ULEV
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
A/T Models Except ULEV

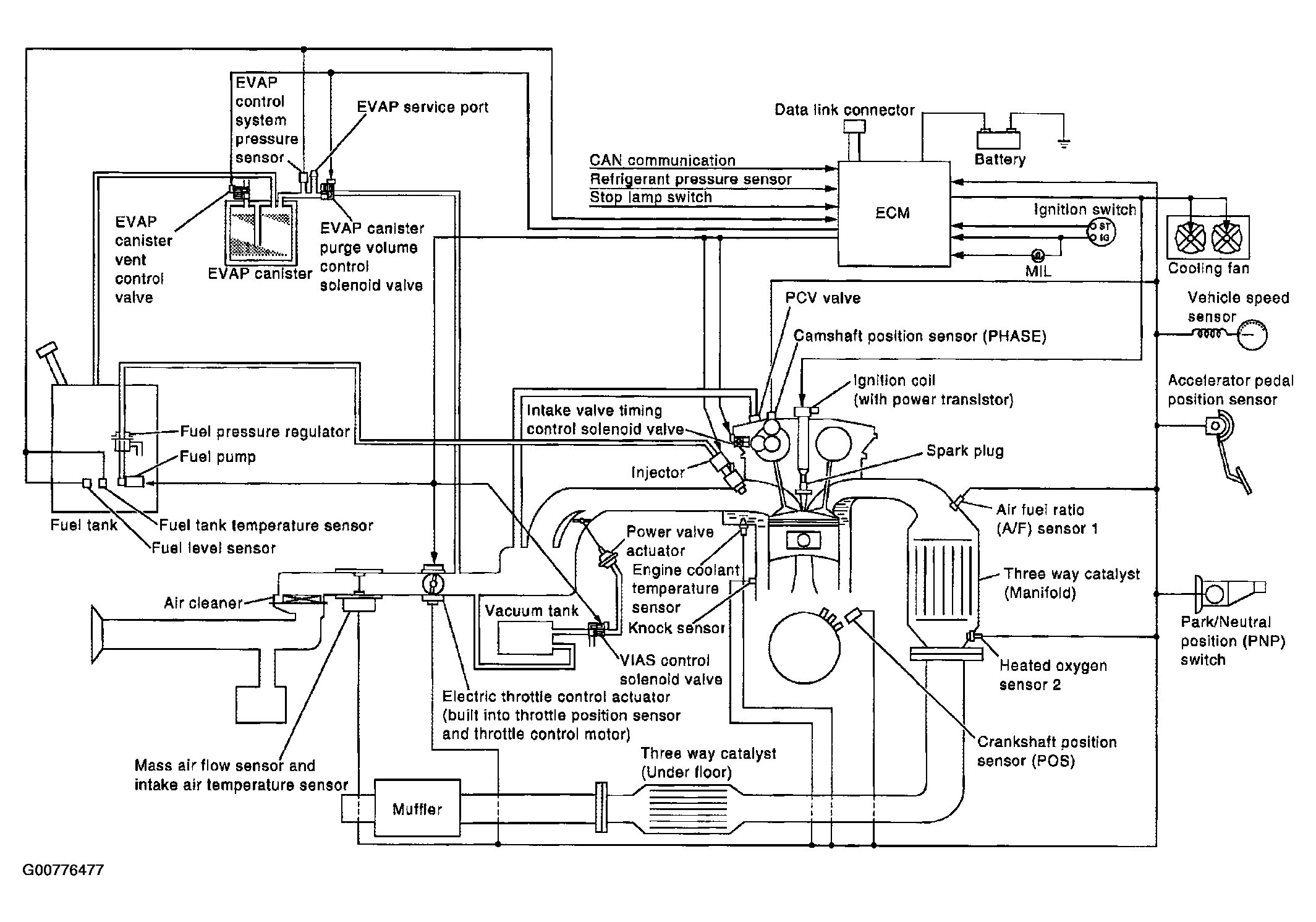

Fig 1: System Diagram (A/T Models Except ULEV)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
