Vacuum Hose Drawing

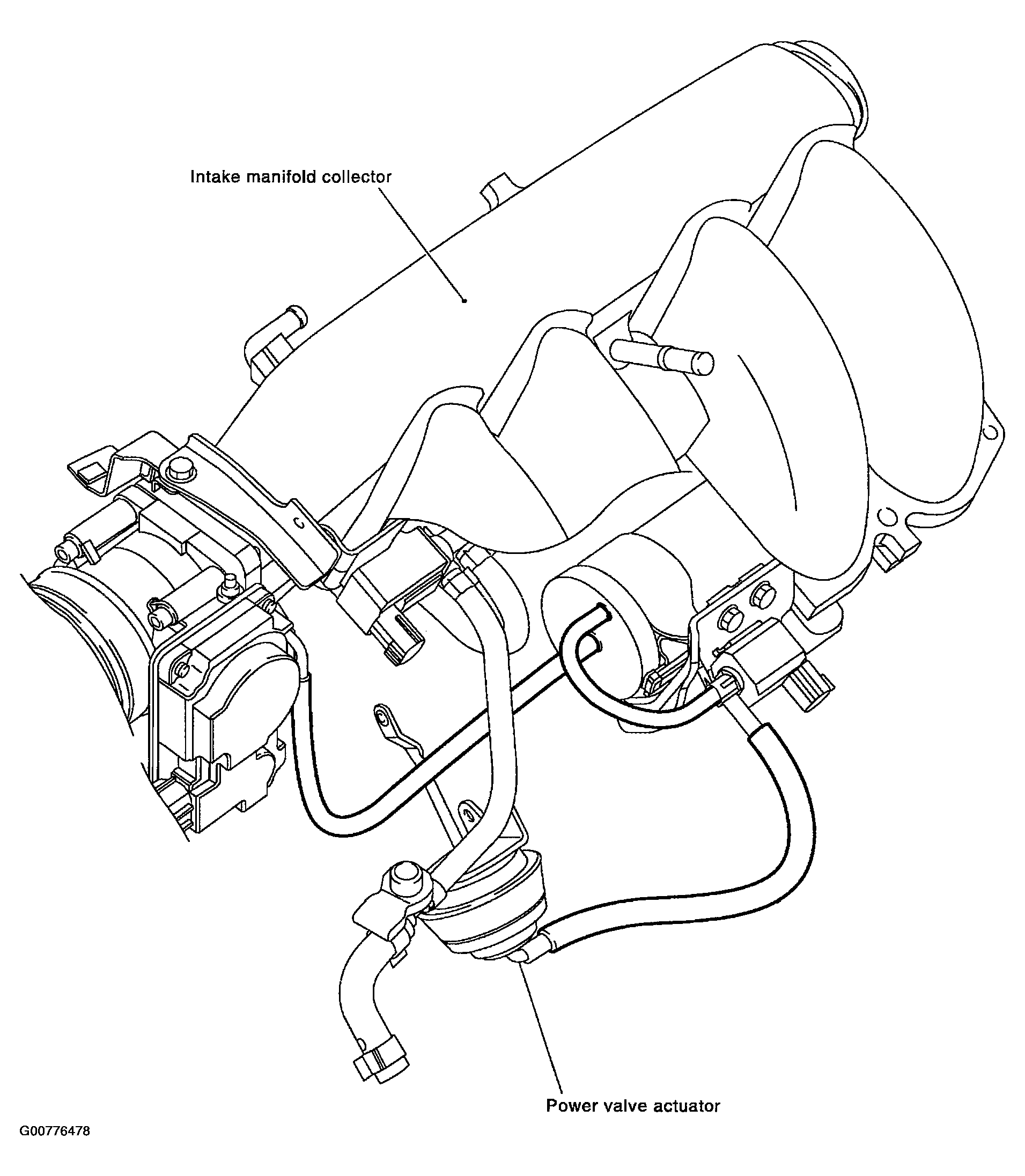

Fig 1: Vacuum Hose Drawing
G00776478Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses. Refer to "SYSTEM DIAGRAM " for Vacuum Control System.
