Hazard Reminder Check

CHECK HAZARD INDICATOR
Check if hazard indicator flashes with hazard switch.

Does hazard indicator operate?
1. Yes: GO TO 2.
2. No: Check hazard indicator circuit.
CHECK HAZARD REMINDER OPERATION
With CONSULT-II
1. Select "ACTIVE TEST" in "MULTI REMOTE ENT" with CONSULT-II.
2. Select "HAZARD" and touch "ON".

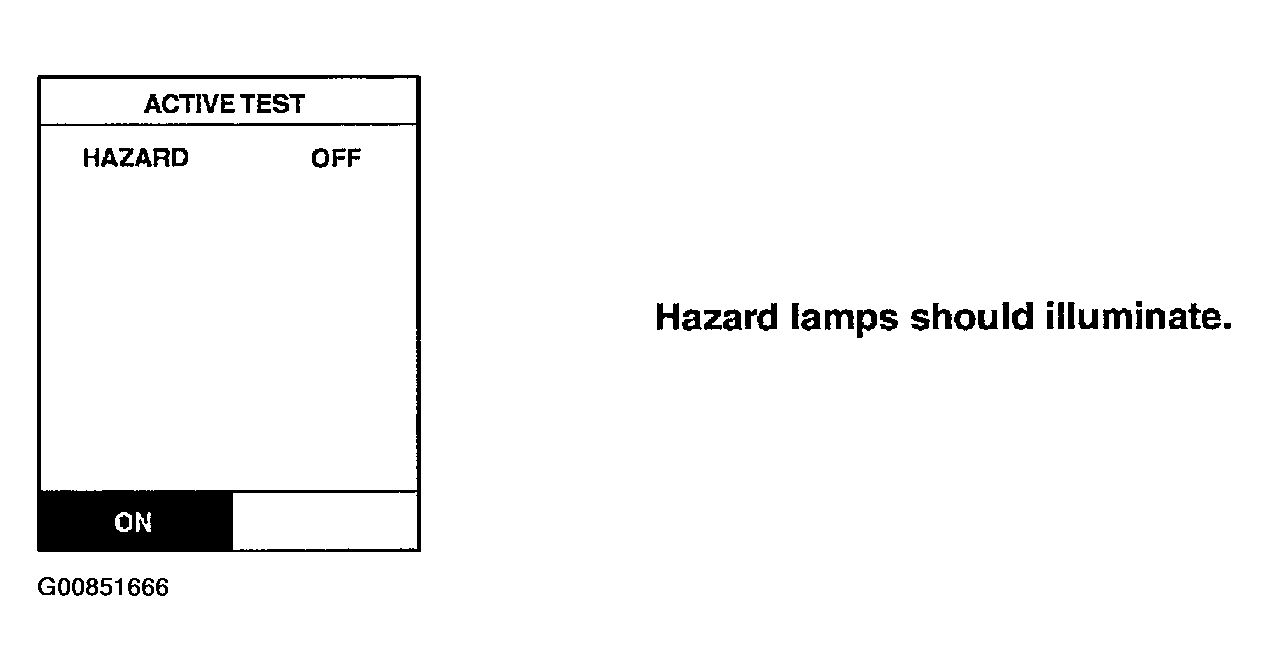

Fig 1: Identifying Hazard Reminder Operation
Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: If CONSULT-II is not available, skip this procedure and GO TO the next step.

OK or NG
1. OK: Hazard reminder operation is OK.
2. NG: GO TO 3.
CHECK HAZARD REMINDER OPERATION
1. Disconnect smart entrance control unit harness connector.
2. Apply ground to smart entrance control unit harness connector terminal 7.

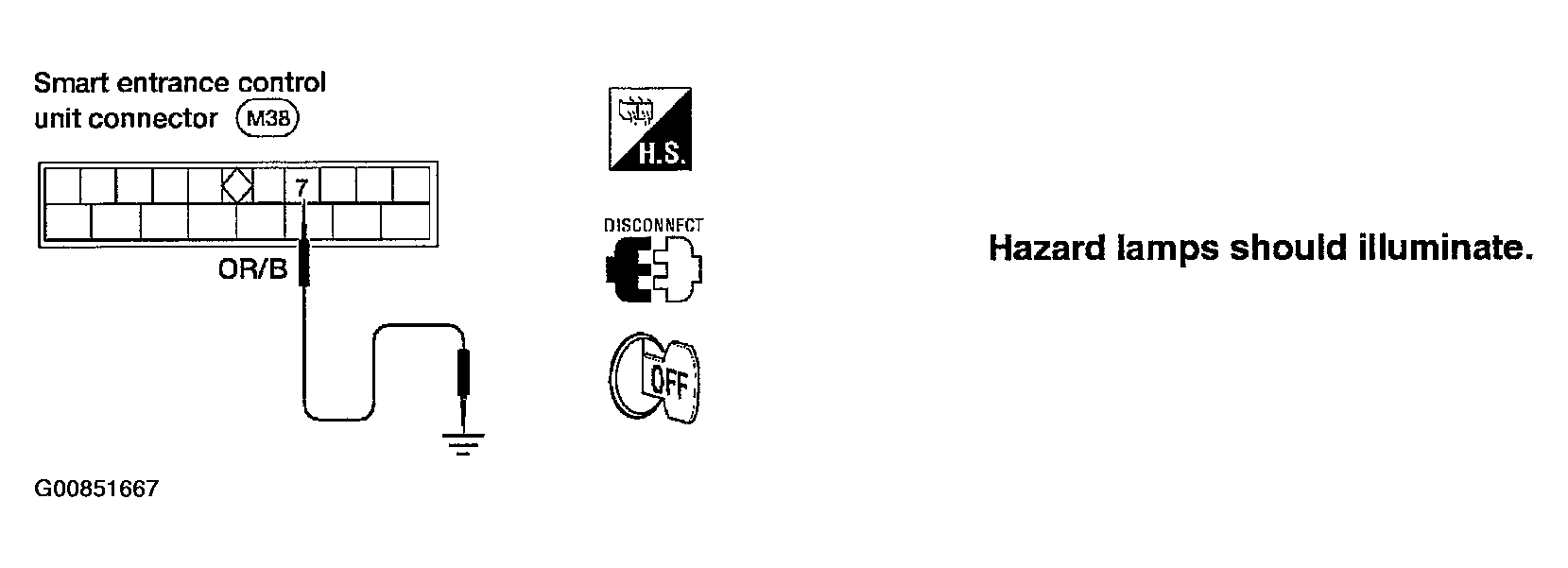

Fig 2: Identifying Hazard Reminder Operation
Courtesy of NISSAN MOTOR CO., U.S.A.

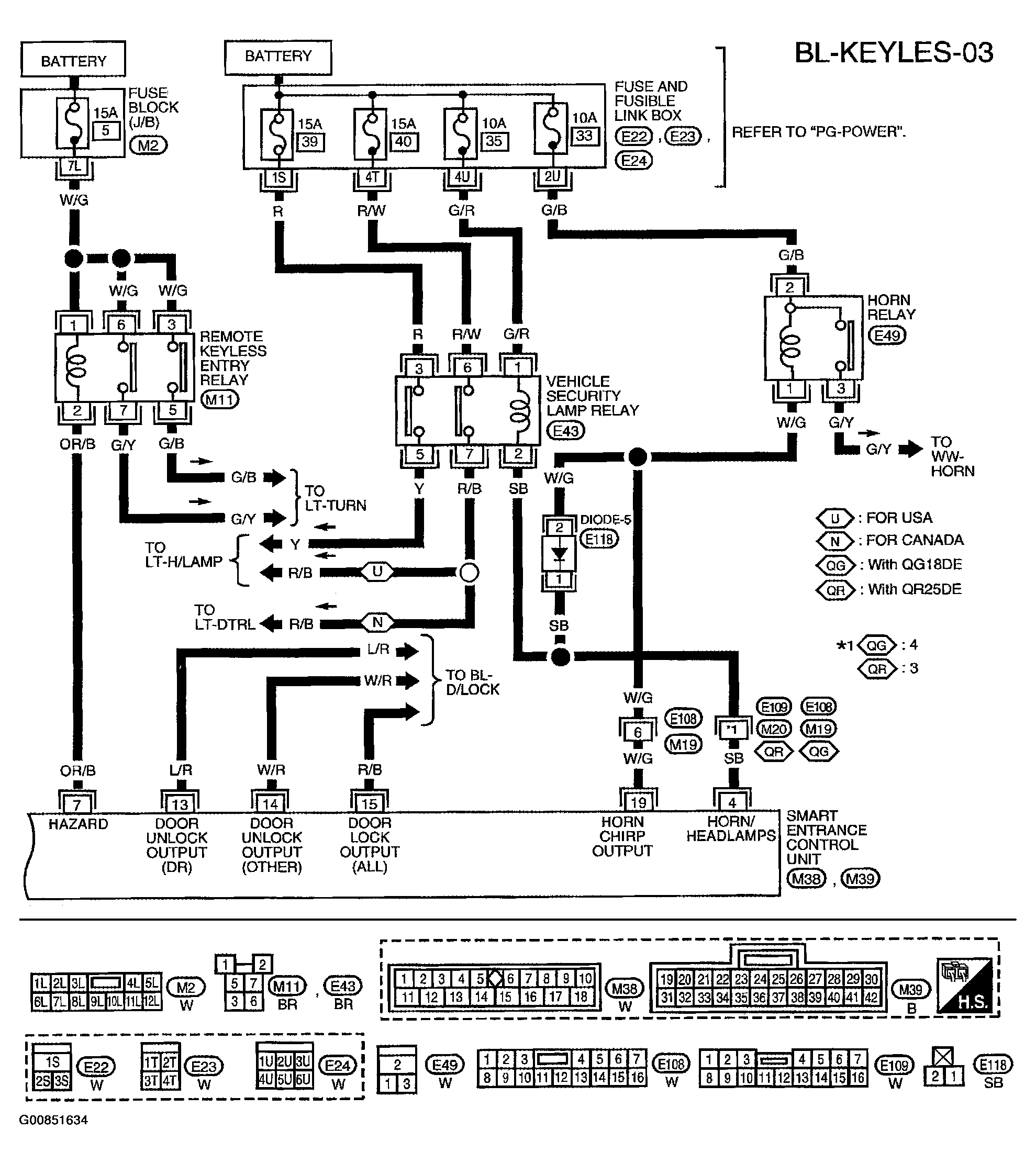

Refer to "Figure ".

OK or NG
1. OK: Replace smart entrance control unit.
2. NG: GO TO 4.
CHECK REMOTE KEYLESS ENTRY RELAY
Check remote keyless entry relay.

OK or NG
1. OK: GO TO 5.
2. NG: Replace remote keyless entry relay.
CHECK POWER SUPPLY FOR REMOTE KEYLESS ENTRY RELAY
1. Disconnect remote keyless entry relay harness connector.

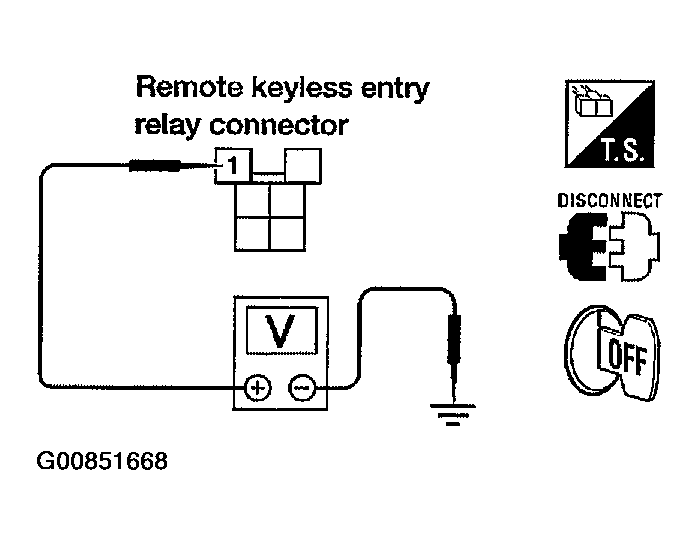

2. Check voltage between remote keyless entry relay harness connector M11 terminal 1 (W/G) and ground.
  Battery voltage should exist.
OK or NG
1. OK: GO TO 6.
2. NG: Check the following.
  - 15A fuse [No. 5, located in fuse block (J/B)]
  - Harness for open or short between remote keyless entry relay and fuse

    Fig 3: Disconnecting Remote Keyless Entry Relay Harness Connector
    Courtesy of NISSAN MOTOR CO., U.S.A.

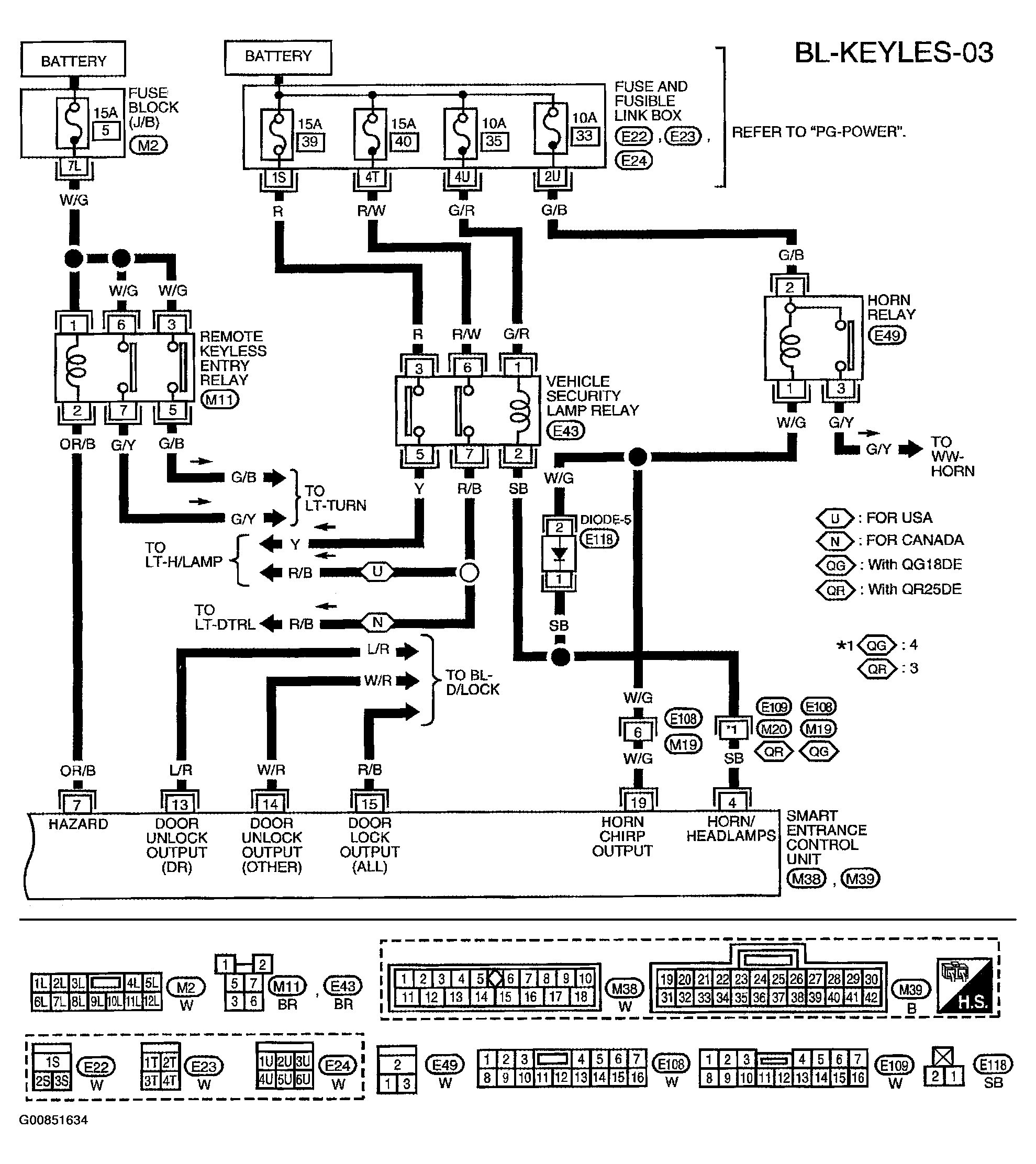

CHECK REMOTE KEYLESS ENTRY RELAY CIRCUIT
1. Disconnect remote keyless entry relay harness connector.

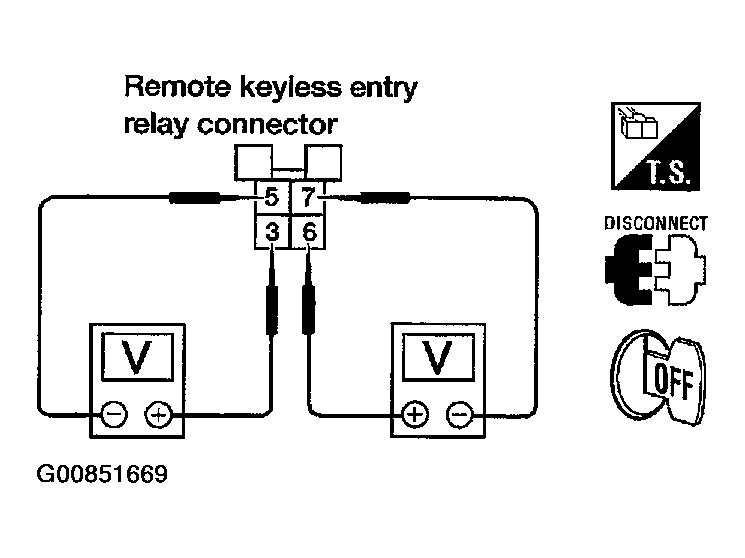

2. Check voltage between remote keyless entry relay harness connector M11 terminals 3 (W/G) and 5 (G/B).
3. Check voltage between remote keyless entry relay harness connector M11 terminals 6 (W/G) and 7 (G/Y).
  Battery voltage should exist.
OK or NG
1. OK: Check harness for open or short between smart entrance control unit and remote keyless entry relay.
2. NG: Check the following.
  - Harness for open or short between remote keyless entry relay and fuse

    Fig 4: Disconnecting Remote Keyless Entry Relay Harness Connector
    Courtesy of NISSAN MOTOR CO., U.S.A.
  - Harness for open or short between remote keyless entry relay and turn signal lamps
