KEYFOB Battery And Function Check

CHECK KEYFOB BATTERY
Remove battery (refer to "KEYFOB BATTERY REPLACEMENT ") and measure voltage across battery positive and negative terminals, (+) and (-).

Voltage [V]: 2.5 - 3.0

NOTE: Keyfob does not function if battery is not set correctly.

OK or NG
1. OK: GO TO 2.
2. NG: Replace battery.

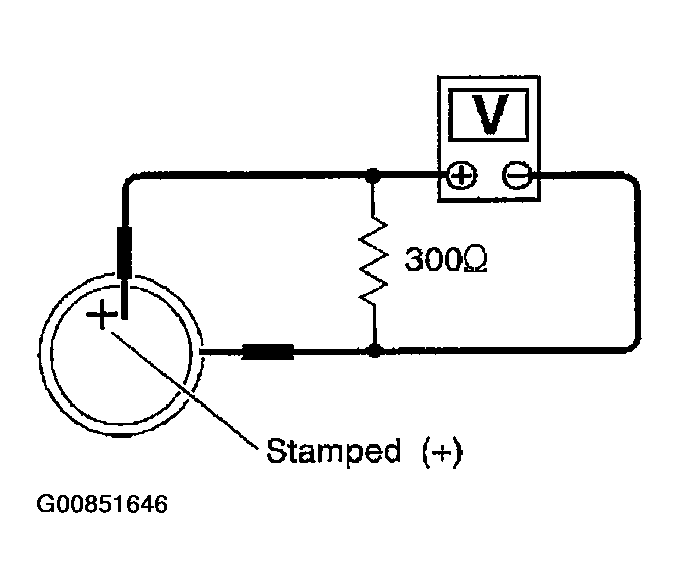

  Fig 1: Checking Keyfob Battery
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK KEYFOB FUNCTION
With CONSULT-II

Check keyfob function ("LK BUTTON/SIG", "UN BUTTON/SIG", "TRUNK BTN/SIG", "PANIC BTN", "UN BUTTON ON" and "LK/UN BTN ON") in "DATA MONITOR" mode with CONSULT-II. When pushing each button of keyfob, the corresponding monitor item should be turned as follows.

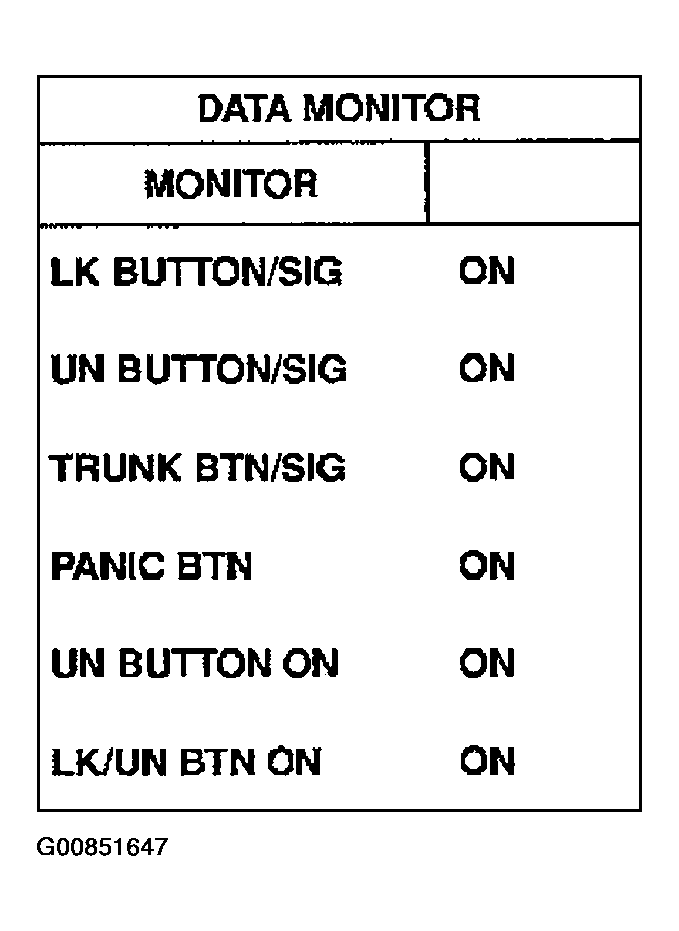

Fig 2: Checking Keyfob Function
Courtesy of NISSAN MOTOR CO., U.S.A.

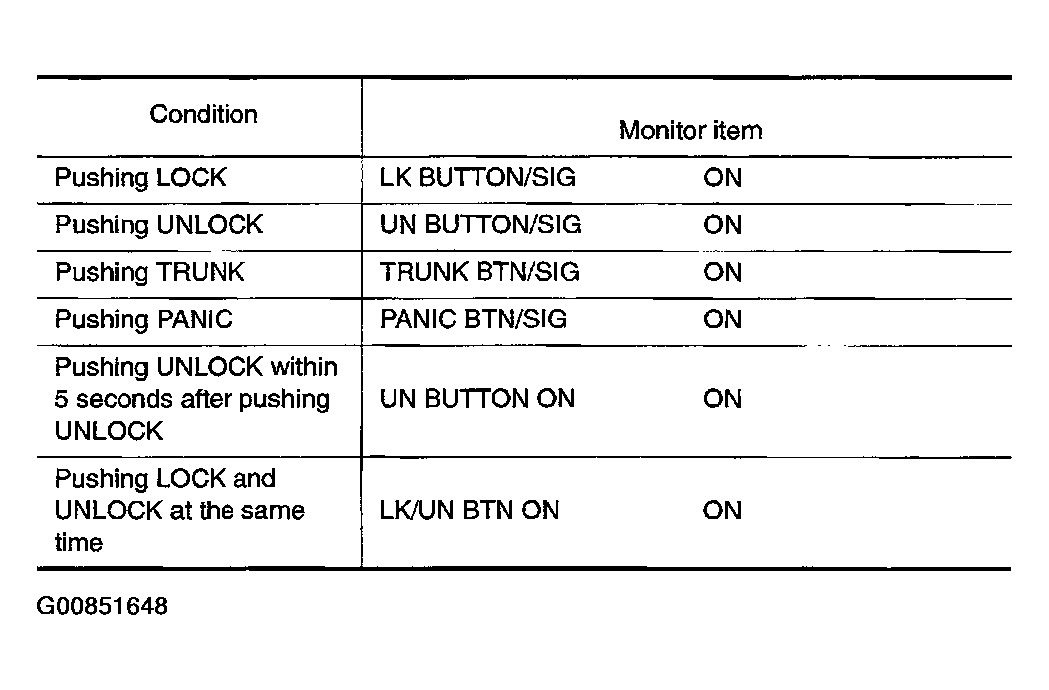

Fig 3: Identifying Display Condition
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: Keyfob is OK. Further inspection is necessary. Refer to "SYMPTOM CHART ".
2. NG: Replace keyfob. Refer to "ID CODE ENTRY PROCEDURE ".
