Malfunction code No. 71

ABS actuator and electric unit power supply and ground circuit inspection

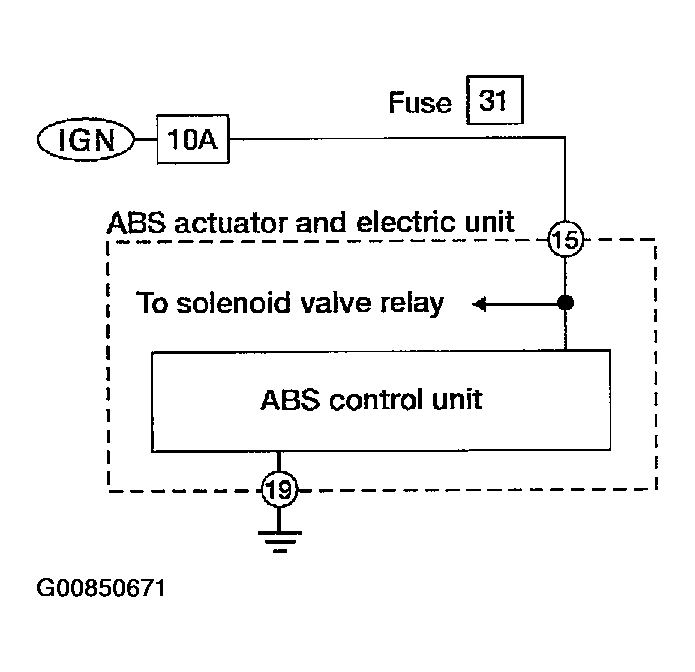

Fig 1: ABS Actuator, Electric Unit Power Supply And Ground Circuit Inspection

Courtesy of NISSAN MOTOR CO., U.S.A.

1. : GO TO 2.

1. Disconnect ABS actuator and electric unit connector.

   Check terminals for damage or loose connection. Then reconnect connector.

2. Carry out self-diagnosis again.

Does warning lamp activate again?

1. Yes: GO TO 3.
2. No: INSPECTION END

Check voltage. Refer to , "DIAGNOSTIC PROCEDURE ".

Does battery voltage exist when ignition switch is turned ON?

1. Yes: GO TO 4.
2. No: Check the following.
   • Harness for open or short between ABS actuator and electric unit and fuse

Does warning lamp indicate code No. 71 again?

Yes or No

1. Yes: Replace ABS actuator and electric unit. Refer to , "ACTUATOR ".
2. No: Inspect the system according to the code No.
