Charging System - Generators & Regulators: Overhaul: Generator

For overhaul, see Fig 1 and Fig 2 .

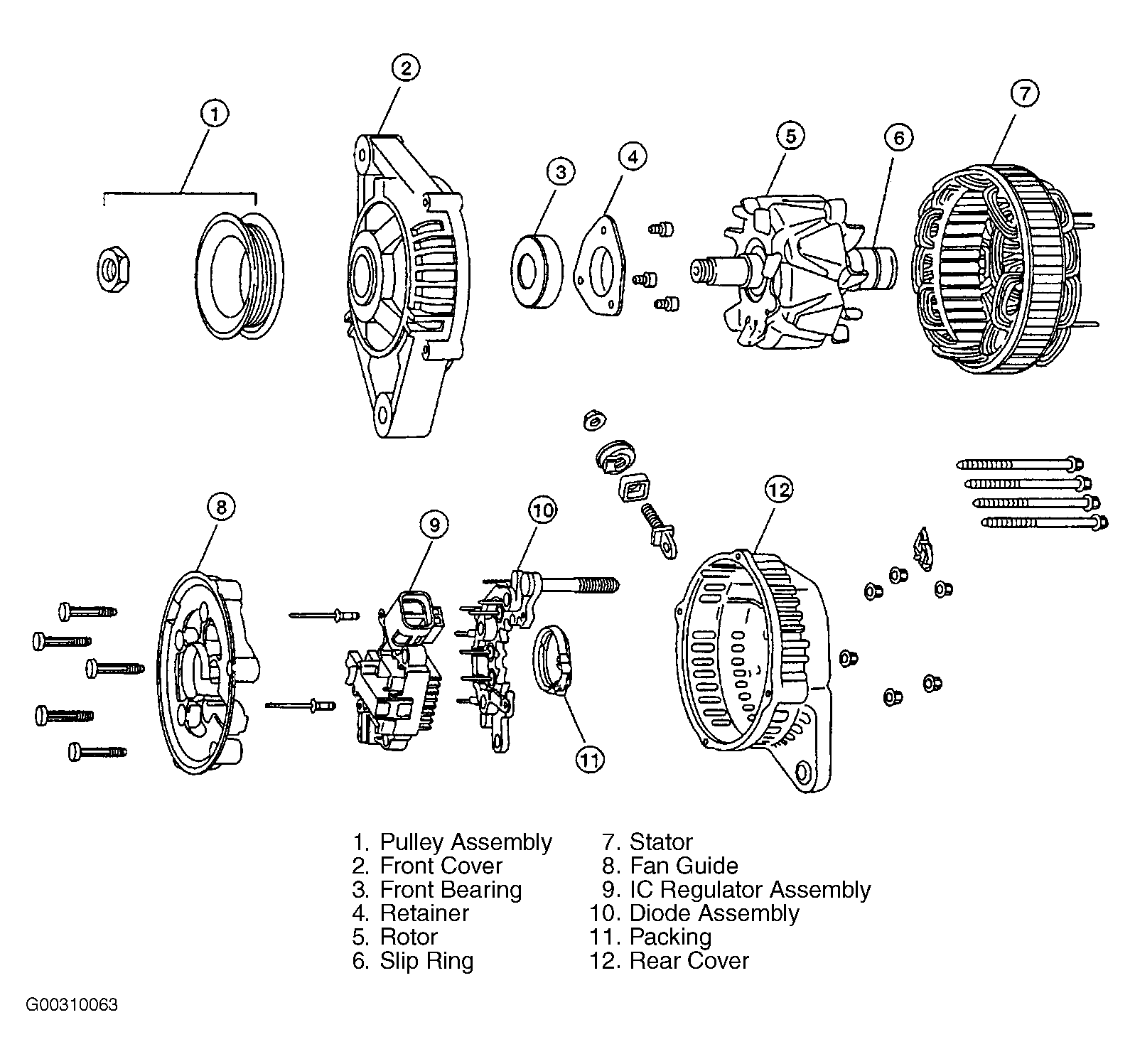

Fig 1: Exploded View of Generator (1.8L)

Courtesy of NISSAN MOTOR CO., U.S.A.

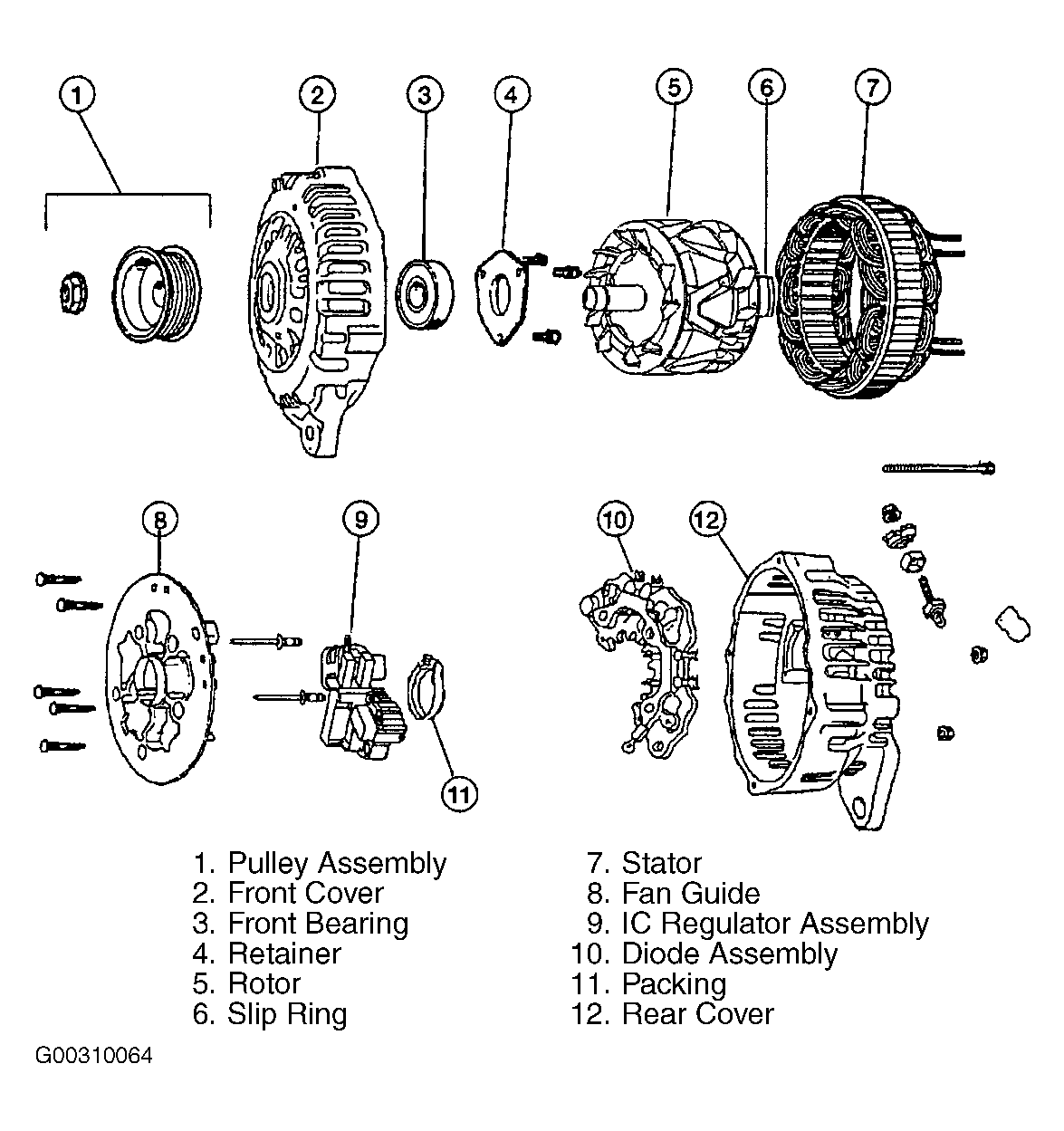

Fig 2: Exploded view of Generator (2.5L)

Courtesy of NISSAN DIESEL MOTOR CO., LTD.
