Repair and Diagnosis: Electrical: Starter: Starters: Overhaul

NOTE: See Fig 1-Fig 3 for overhaul reference. Internal starter components are model specific. External components may vary depending upon application.

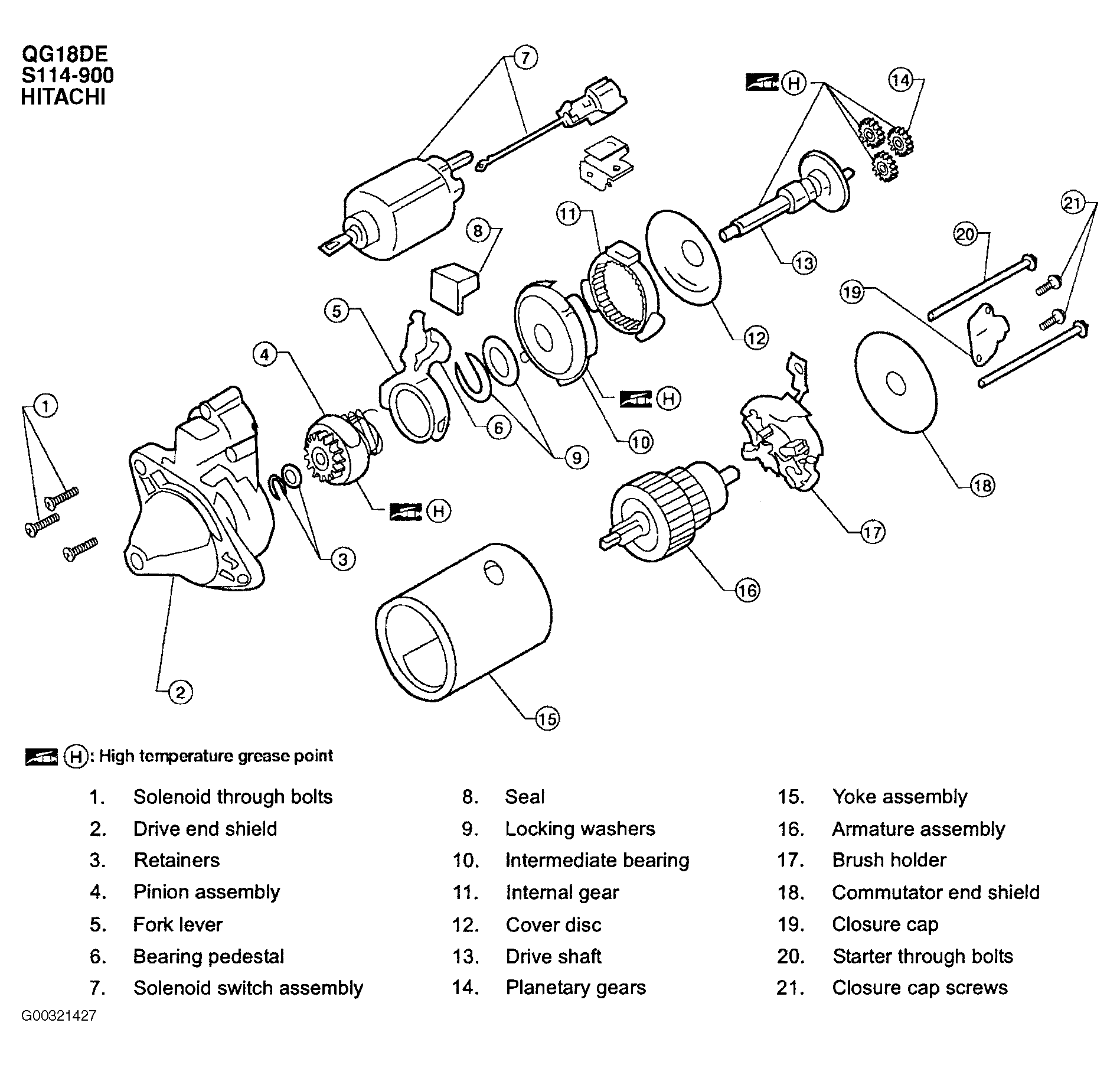

Fig 1: Exploded View Of Starter Motor Assembly (Hitachi, 1.8L Model)

Courtesy of NISSAN MOTOR CO., U.S.A.

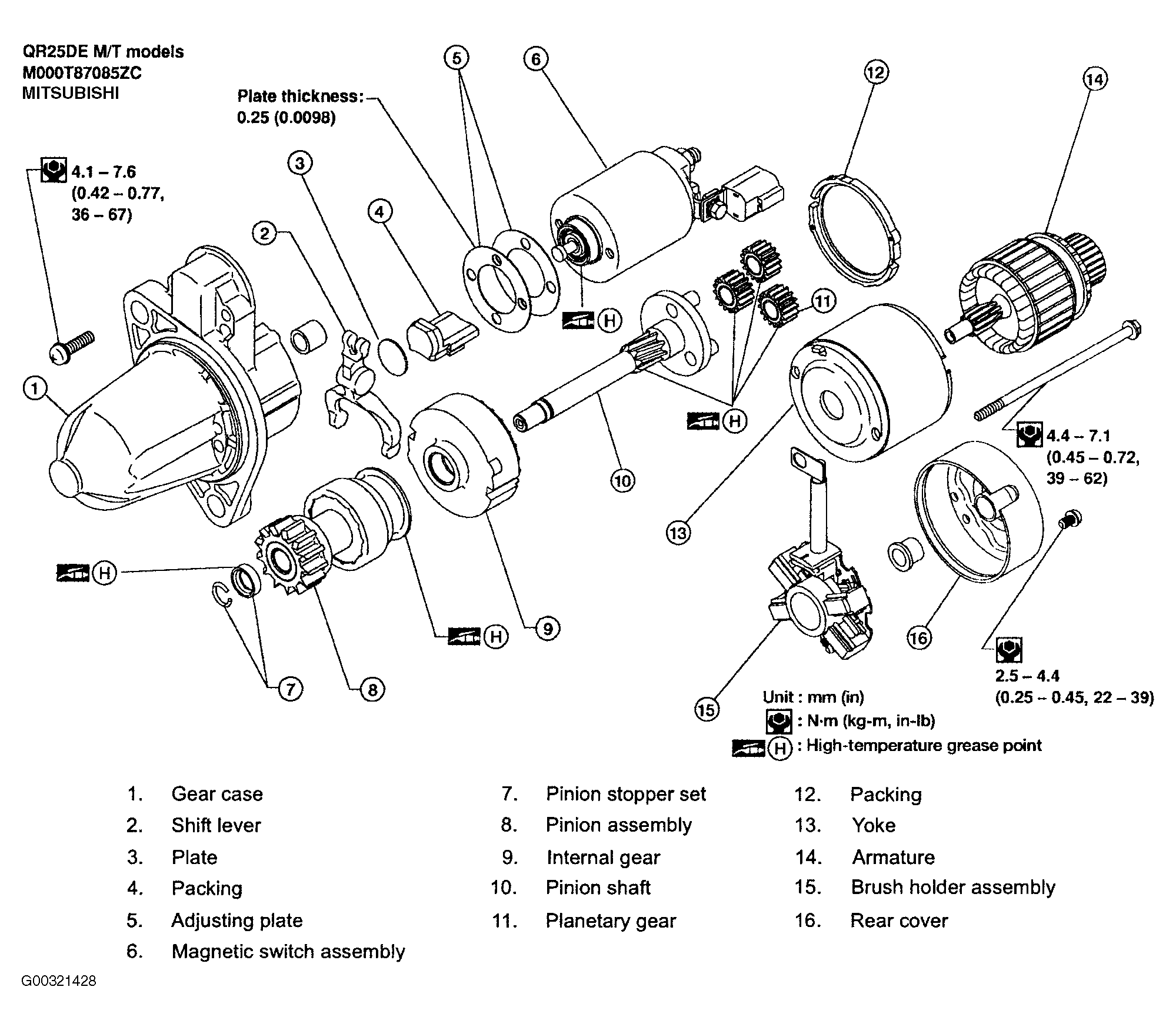

Fig 2: Exploded View Of Starter Motor Assembly (Mitsubishi, 2.5L M/T Model) With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

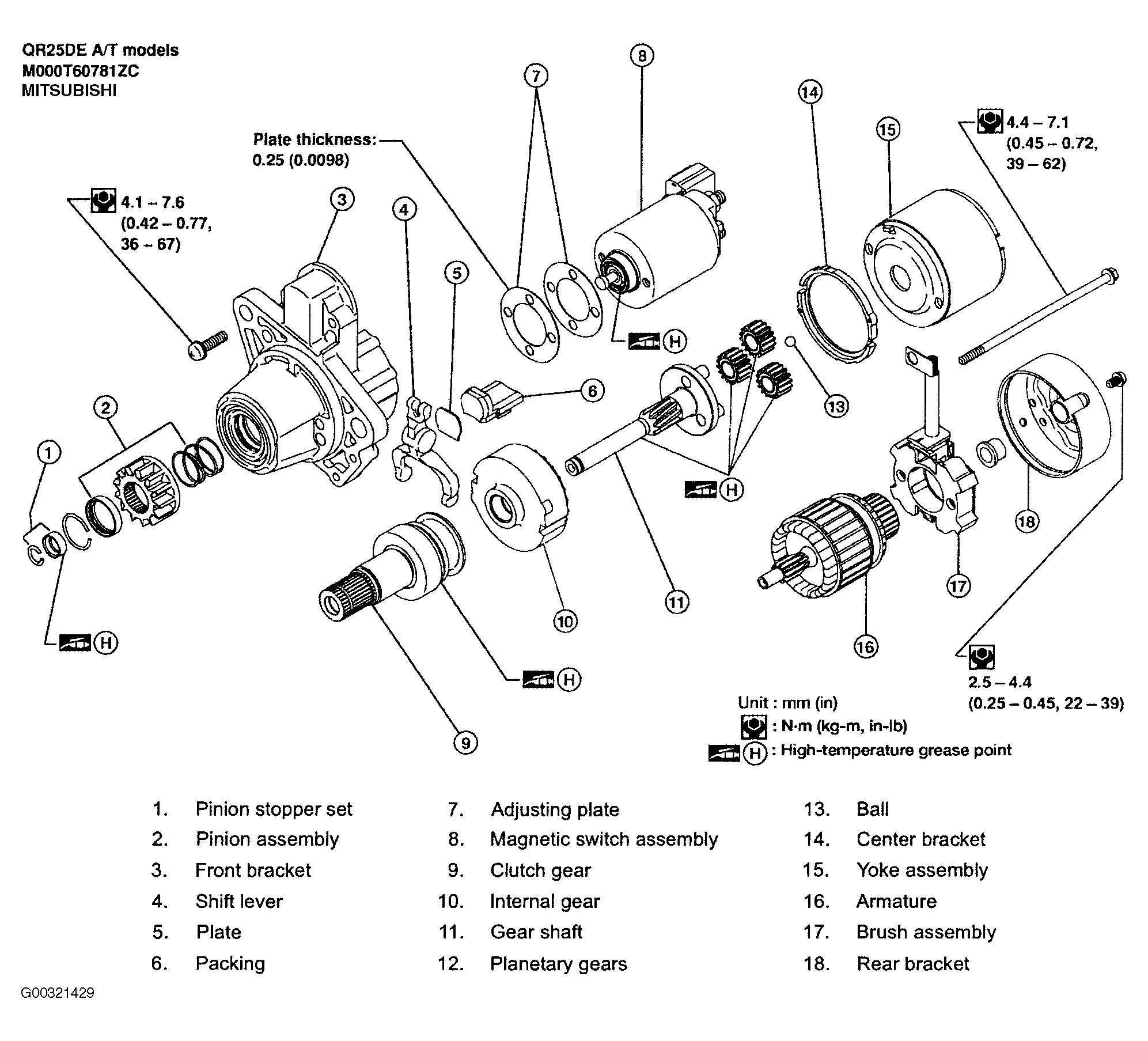

Fig 3: Exploded View Of Starter Motor Assembly (Mitsubishi, 2.5L A/T Model) With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
