Removal and Installation: Notes

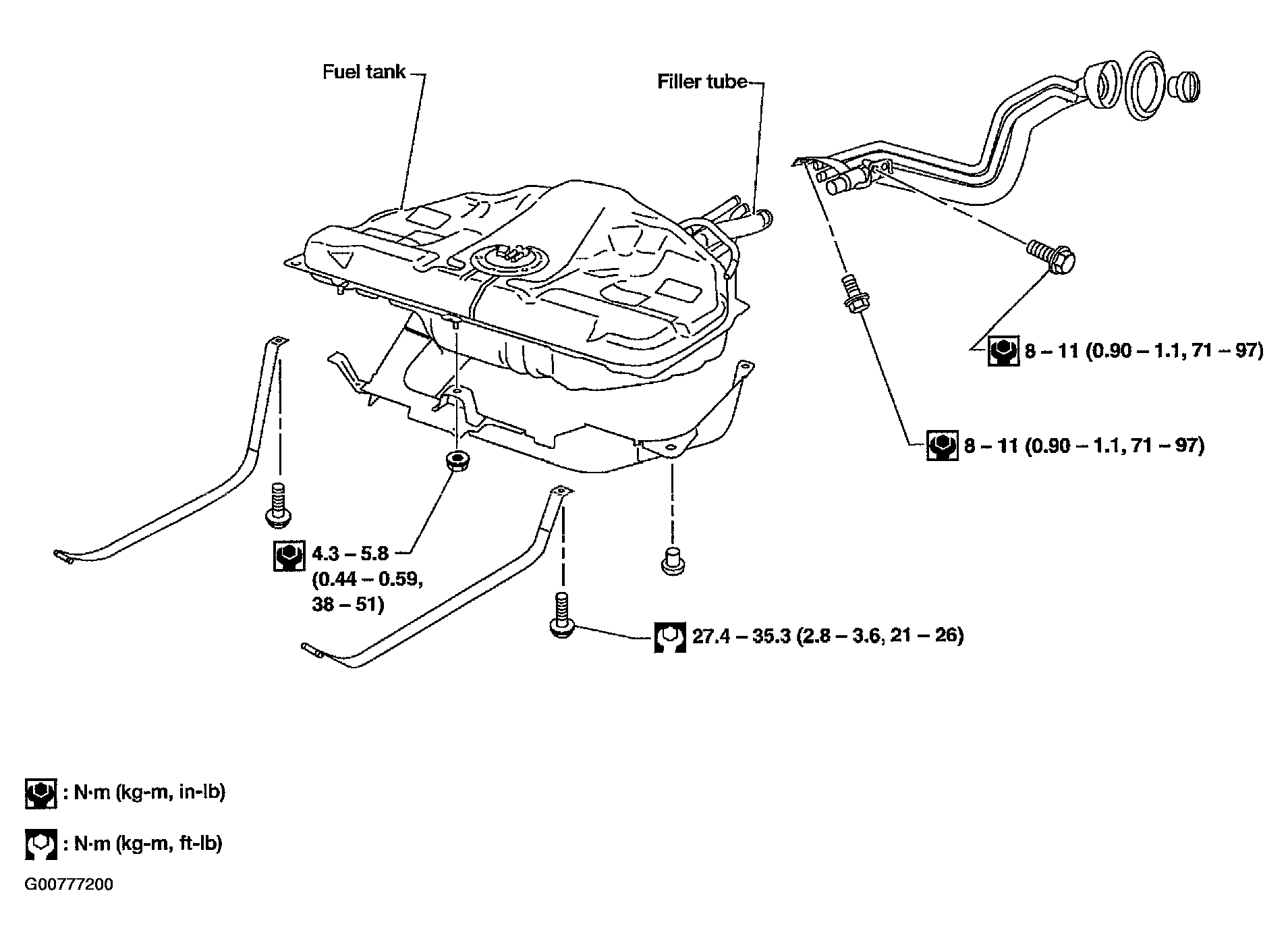

Fig 1: Identifying Fuel Tank Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
