Diagnostic Procedure

  1. CHECK OVERALL FUNCTION-I

    WITH CONSULT-II

    1. Turn ignition switch ON.
    2. Select "BRAKE SW1" in "DATA MONITOR" mode with CONSULT-II.
    3. Check "BRAKE SW1" indication under the following conditions.

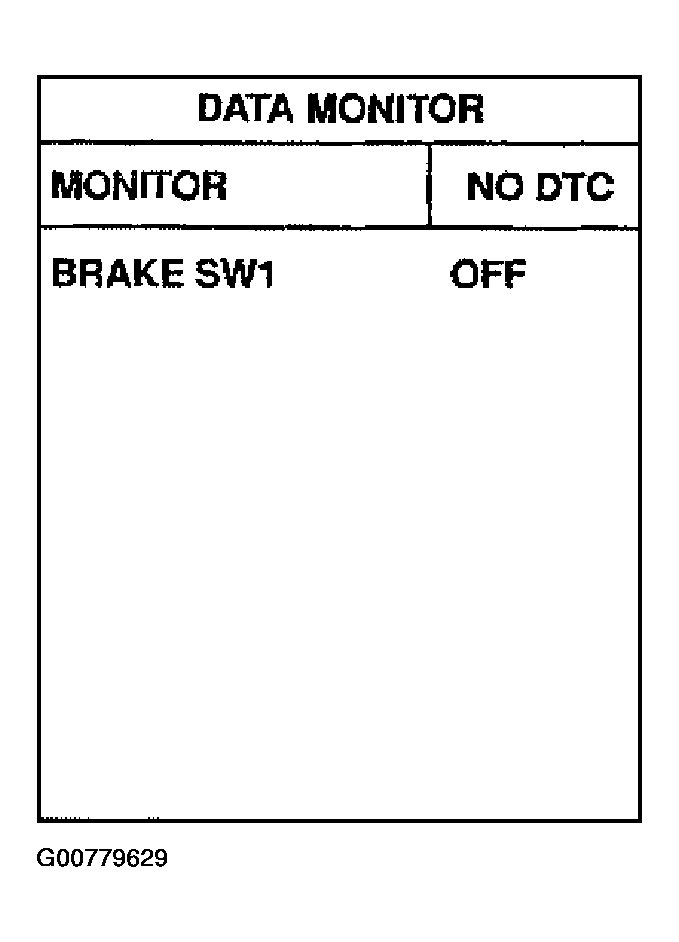

      Fig 1: Displaying Data Monitor Mode With Consult-II
      G00779629Courtesy of NISSAN MOTOR CO., U.S.A.

      M/T models

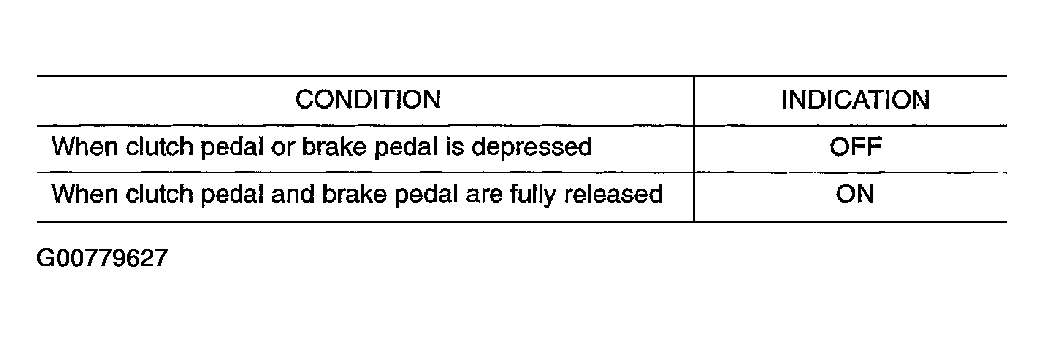

      Fig 2: BRAKE SW1 Indication Table (M/T Models)
      G00779627Courtesy of NISSAN MOTOR CO., U.S.A.

      A/T models

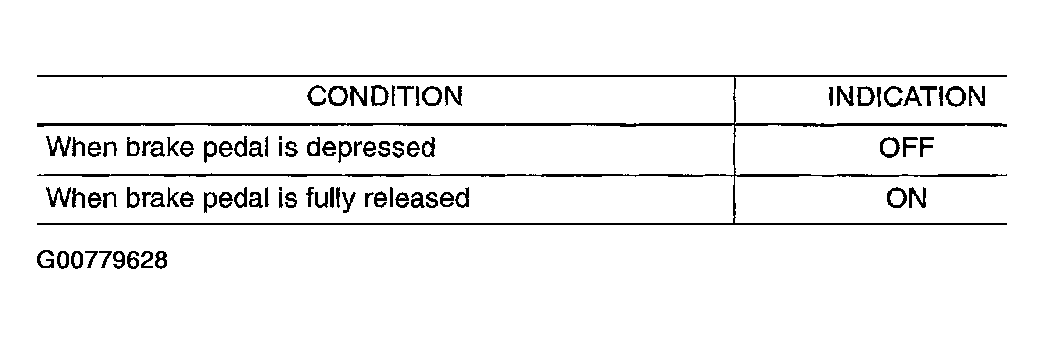

      Fig 3: BRAKE SW1 Indication Table (A/T Models)
      G00779628Courtesy of NISSAN MOTOR CO., U.S.A.

    WITHOUT CONSULT-II

    1. Turn ignition switch ON.
    2. Check voltage between ECM terminal 108 and ground under the following conditions.

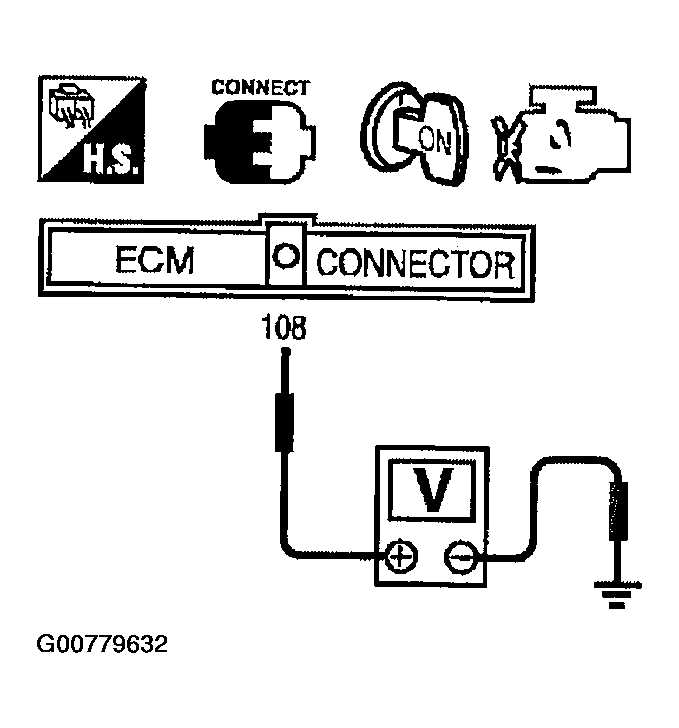

      Fig 4: Checking Voltage Between ECM Terminal 108 & Ground
      G00779632Courtesy of NISSAN MOTOR CO., U.S.A.

      M/T models

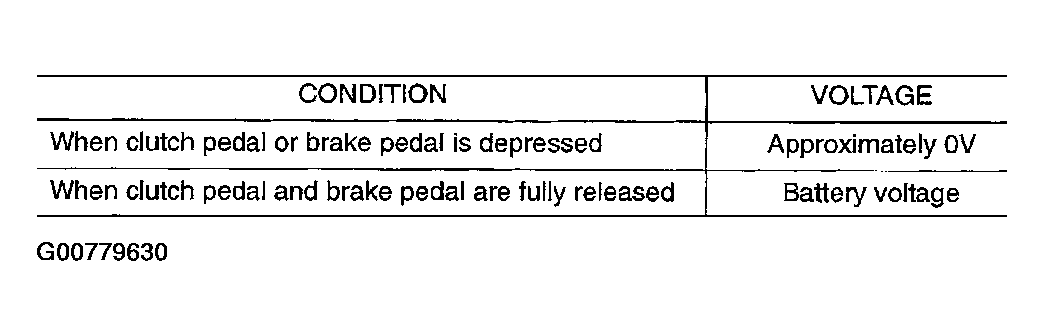

      Fig 5: Voltage Condition Table (M/T Models)
      G00779630Courtesy of NISSAN MOTOR CO., U.S.A.

      A/T models

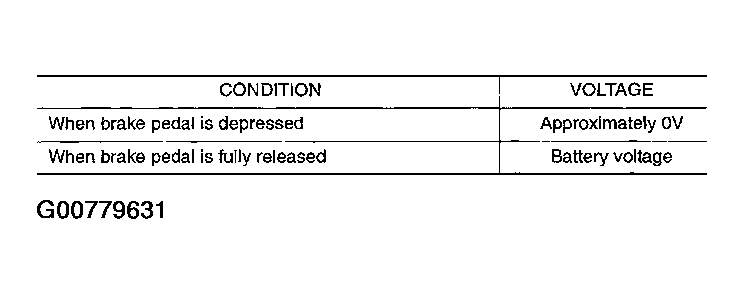

      Fig 6: Voltage Condition Table (A/T Models)
      G00779631Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 2.
    2. NG (M/T models): GO TO  3.
    3. NG (A/T models): GO TO  4.
  2. CHECK OVERALL FUNCTION-II

    WITH CONSULT-II

    Check "BRAKE SW2" indication in "DATA MONITOR" mode.

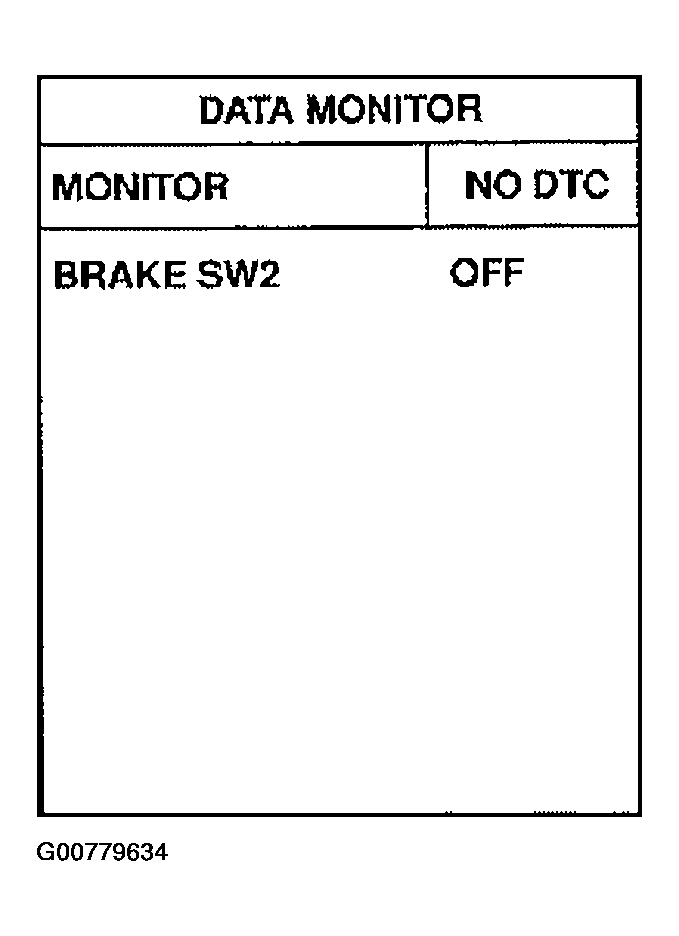

    Fig 7: Displaying Data Monitor Mode With Consult-II
    G00779634Courtesy of NISSAN MOTOR CO., U.S.A.

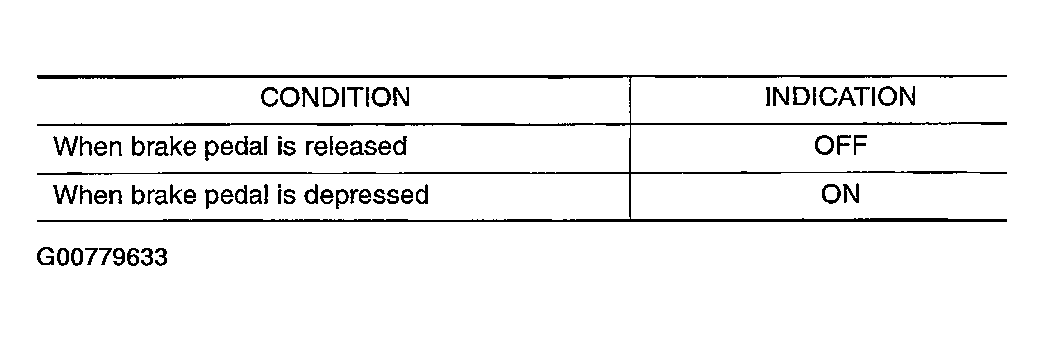

    Fig 8: BRAKE SW2 Indication Table
    G00779633Courtesy of NISSAN MOTOR CO., U.S.A.

    WITHOUT CONSULT-II

    Check voltage between ECM terminal 101 and ground under the following conditions.

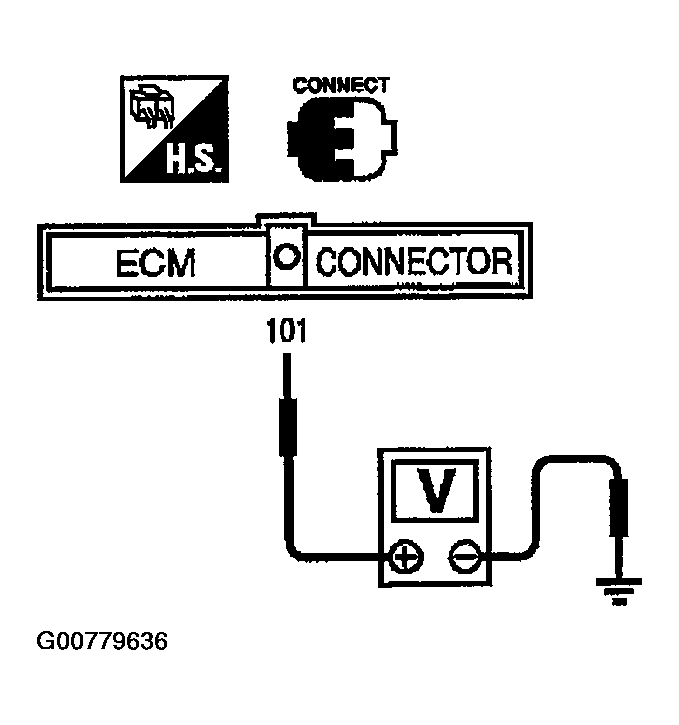

    Fig 9: Checking Voltage Between ECM Terminal 101 & Ground
    G00779636Courtesy of NISSAN MOTOR CO., U.S.A.

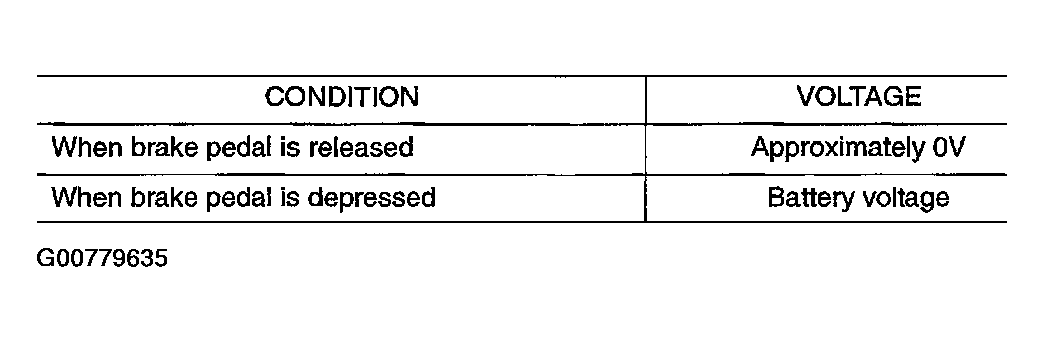

    Fig 10: Voltage Condition Table
    G00779635Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: INSPECTION END
    2. NG: GO TO  13.
  3. CHECK ASCD BRAKE SWITCH CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect ASCD clutch switch harness connector.
    3. Turn ignition switch ON.

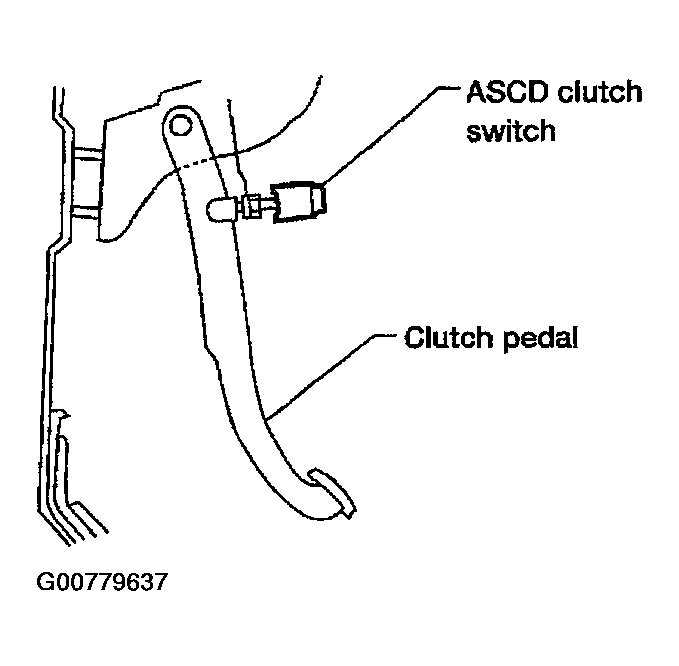

      Fig 11: Disconnecting ASCD Clutch Switch Harness Connector
      G00779637Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Check voltage between ASCD clutch switch terminal 1 and ground under the following conditions with CONSULT-II or tester.

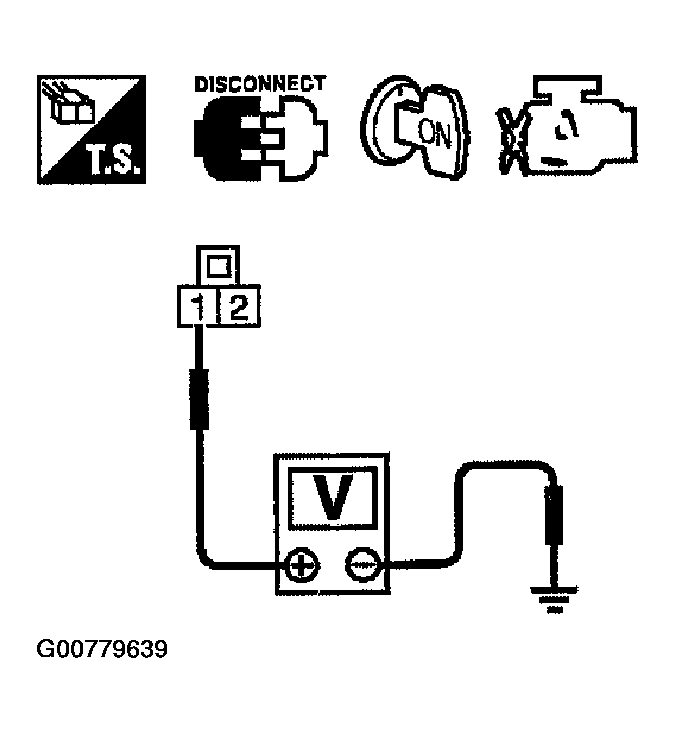

    Fig 12: Checking Voltage Between ASCD Clutch Switch Terminal 1 & Ground
    G00779639Courtesy of NISSAN MOTOR CO., U.S.A.

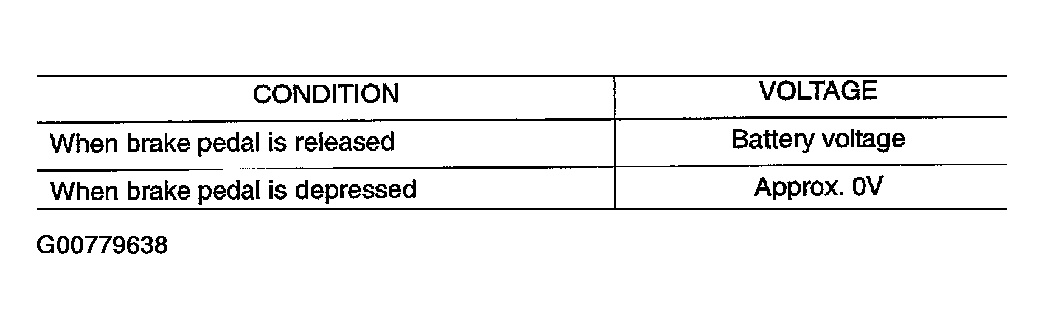

    Fig 13: Voltage Condition Table
    G00779638Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO  10.
    2. NG: GO TO 4.
  4. CHECK ASCD BRAKE SWITCH POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect ASCD brake switch harness connector.
    3. Turn ignition switch ON.

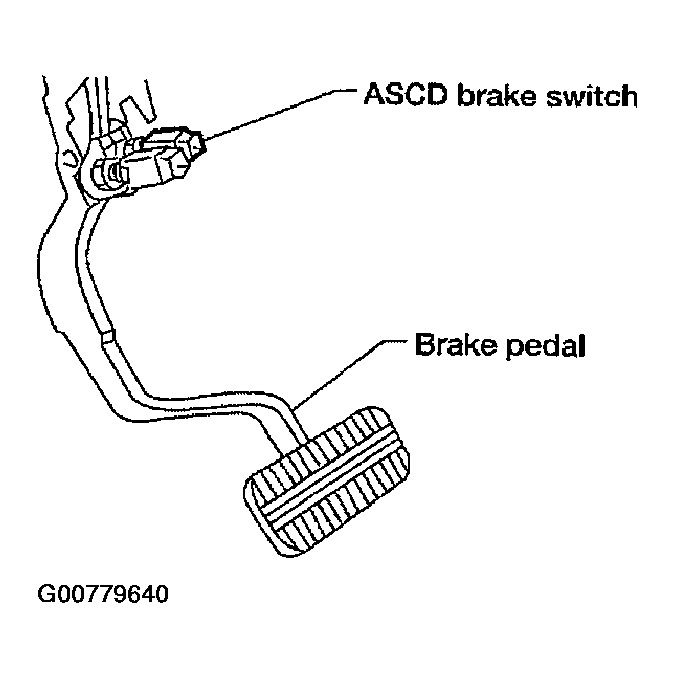

      Fig 14: Disconnecting ASCD Brake Switch Harness Connector
      G00779640Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Check voltage between ASCD brake switch terminal 1 and ground with CONSULT-II or tester.

      Voltage: Battery voltage

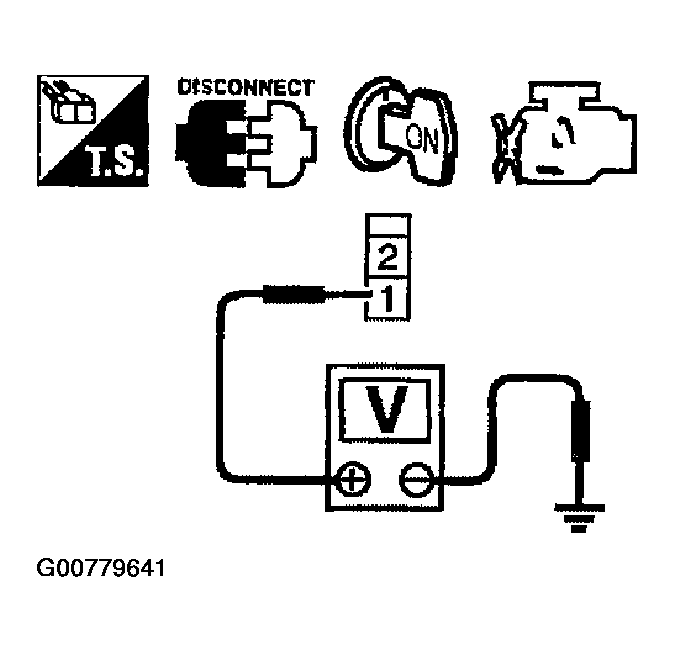

      5. Fig 15: Checking Voltage Between ASCD Brake Switch Terminal 1 & Ground
      G00779641Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK (M/T models): GO TO  6.
    2. OK (A/T models): GO TO  7.
    3. NG: GO TO 5.
  5. DETECT MALFUNCTIONING PART

    Check the following.

    • Fuse block (J/B) connector M1
    • 10A fuse
    • Harness for open or short between ASCD brake switch and fuse
      1. Repair open circuit or short to ground or short to power in harness or connectors.
  6. CHECK ASCD BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Check harness continuity between ASCD brake switch terminal 2 and ASCD clutch switch terminal 1.

      Refer to WIRING DIAGRAM .

      Continuity should exist.

    3. Also check harness for short to ground and short to power.

    OK or NG

    1. OK: GO TO  9.
    2. NG: Repair open circuit or short to ground or short to power in harness or connectors.
  7. CHECK ASCD BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between ECM terminal 108 and ASCD brake switch terminal 2.

      Refer to WIRING DIAGRAM .

      Continuity should exist.

    4. Also check harness for short to ground or short to power.

    OK or NG

    1. OK: GO TO  9.
    2. NG: GO TO 8.
  8. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors M59, F27
    • Harness for open or short between ECM and ASCD brake switch
      1. Repair open circuit or short to ground or short to power in harness or connectors.
  9. CHECK ASCD BRAKE SWITCH

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    1. OK: GO TO  18.
    2. NG: Replace ASCD brake switch.
  10. CHECK ASCD BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between ECM terminal 108 and ASCD clutch switch terminal 2.

      Refer to WIRING DIAGRAM .

      Continuity should exist.

    4. Also check harness for short to ground or short to power.

    OK or NG

    1. OK: GO TO  12.
    2. NG: GO TO 11.
  11. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors M59, F27
    • Harness for open or short between ECM and ASCD clutch switch
      1. Repair open circuit or short to ground or short to power in harness or connectors.
  12. CHECK ASCD CLUTCH SWITCH

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    1. OK: GO TO  18.
    2. NG: Replace ASCD clutch switch.
  13. CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect stop lamp switch harness connector.

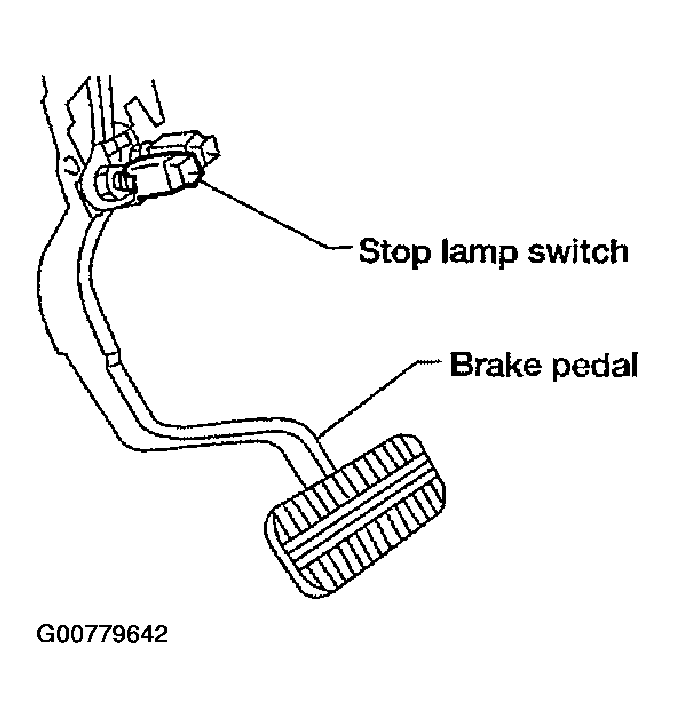

      Fig 16: Disconnecting Stop Lamp Switch Harness Connector
      G00779642Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Check voltage between stop lamp switch terminal 1 (A/T models) or + (M/T models) and ground with CONSULT -II or tester.

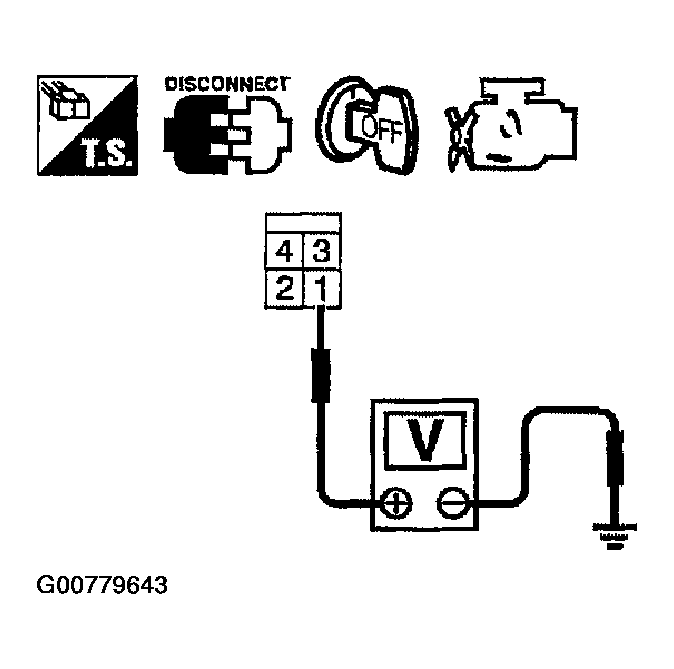

      Fig 17: Checking Voltage Between Stop Lamp Switch Terminal 1 & Ground (A/T Models)
      G00779643Courtesy of NISSAN MOTOR CO., U.S.A.

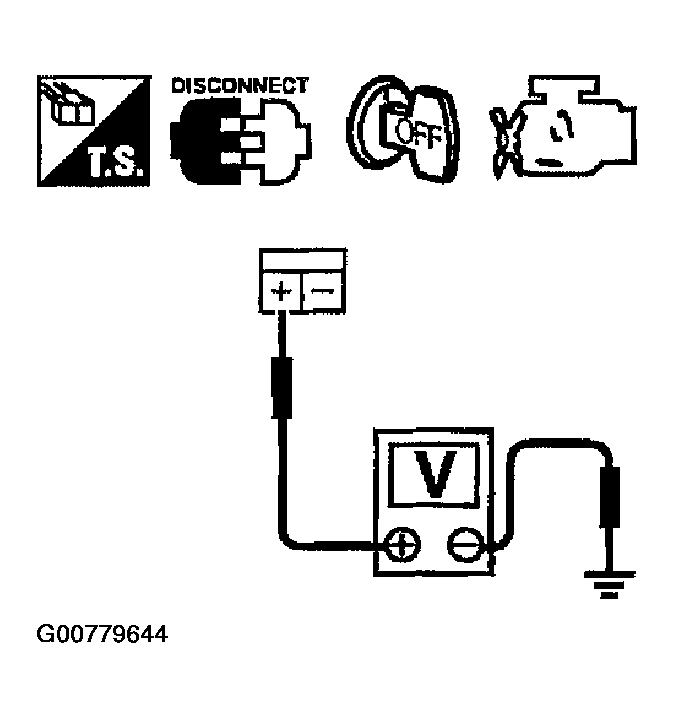

      Fig 18: Checking Voltage Between Stop Lamp Switch Terminal + & Ground (M/T Models)
      G00779644Courtesy of NISSAN MOTOR CO., U.S.A.

      Voltage: Battery voltage

    OK or NG

    1. OK: GO TO  15.
    2. NG: GO TO 14.
  14. DETECT MALFUNCTIONING PART

    Check the following.

    • Fuse block (J/B) connector M2
    • 10A fuse
    • Harness for open or short between stop lamp switch and fuse
      1. Repair open circuit or short to ground or short to power in harness or connectors.
  15. CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Disconnect ECM harness connector.
    2. Check harness continuity between ECM terminal 101 and stop lamp switch terminal 2 (A/T models) or - (MAT models).

      Refer to WIRING DIAGRAM .

      Continuity should exist.

    3. Also check harness for short to ground and short to power.

    OK or NG

    1. OK: GO TO  17.
    2. NG: GO TO 16.
  16. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors M59, F27
    • Harness for open or short between ECM and stop lamp switch
      1. Repair open circuit or short to ground or short to power in harness or connectors.
  17. CHECK STOP LAMP SWITCH

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    1. OK: GO TO 18.
    2. NG: Replace stop lamp switch.
  18. CHECK INTERMITTENT INCIDENT

    Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

    1. INSPECTION END
