Diagnostic Procedure

Check ASCD indicator under the following conditions.

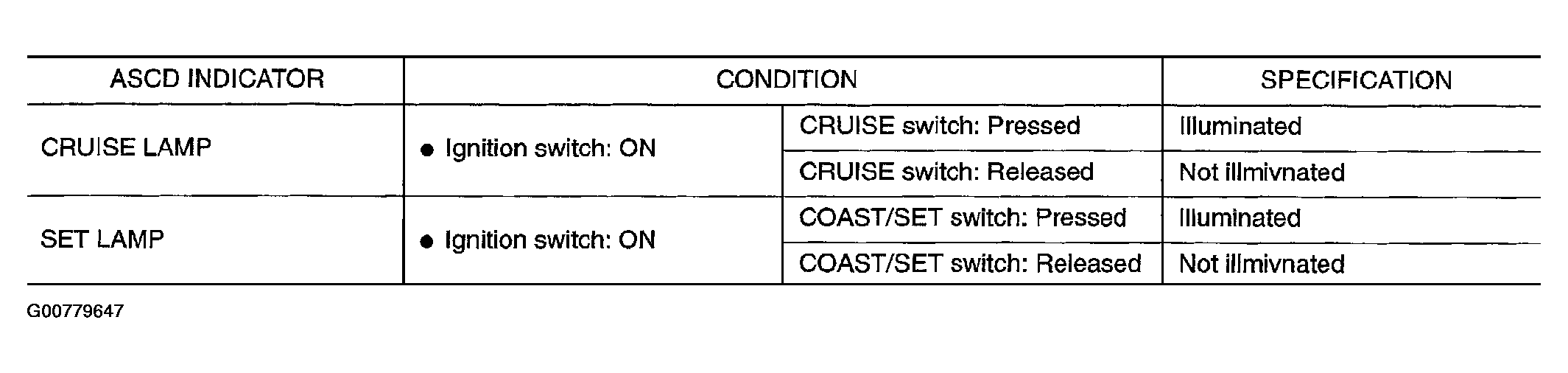

Fig 1: ASCD Indicator Specification Table

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: INSPECTION END
2. NG: GO TO 2.

Check that DTC U1000 or U1001 is not displayed.

Yes or No

1. Yes: Perform trouble diagnoses for DTC U1000, U1001, refer to "DTC U1000, U1001: CAN COMMUNICATION LINE ".
2. No: GO TO 3.

Does combination meter operate normally?

Yes or No

1. Yes: GO TO 4.
2. No: Check combination meter circuit. Refer to "COMBINATION METER ".

Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

1. INSPECTION END
