Diagnostic Procedure

  1. INSPECTION START

    Which malfunction (A or B) is duplicated?

    A or B

    1. A: GO TO  3.
    2. B: GO TO 2.
  2. CHECK INTAKE AIR LEAK

    Check the following for connections.

    • Air duct
    • Vacuum hoses
    • Intake air passage between air duct and intake manifold

    OK or NG

    1. OK: GO TO 3.
    2. NG: Reconnect the parts.
  3. RETIGHTEN GROUND SCREWS
    1. Turn ignition switch OFF.
    2. Loosen and retighten engine ground screws.

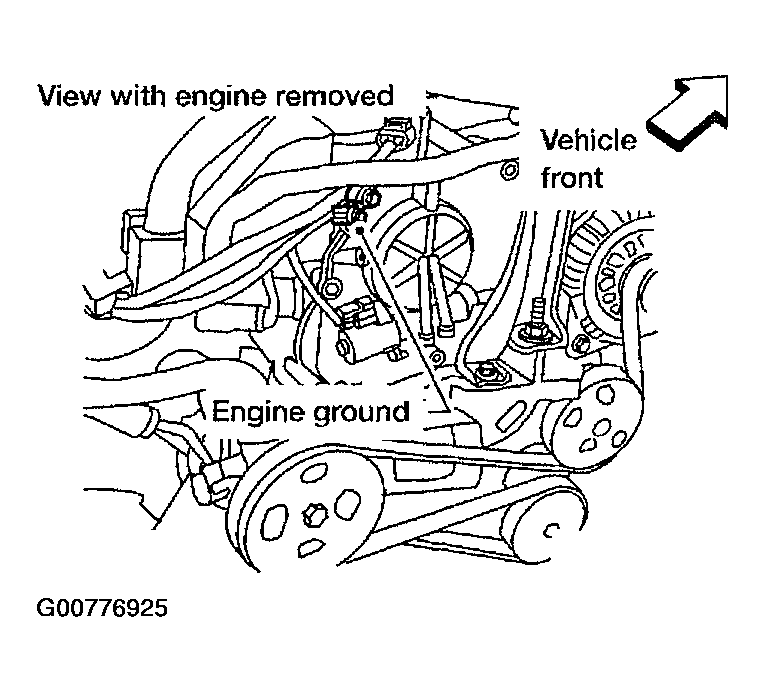

      Fig 1: View Of Engine Ground
      G00776925Courtesy of NISSAN MOTOR CO., U.S.A.
      1. GO TO 4.
  4. CHECK MAF SENSOR POWER SUPPLY CIRCUIT
    1. Disconnect mass air flow (MAF) sensor harness connector.
    2. Turn ignition switch ON.

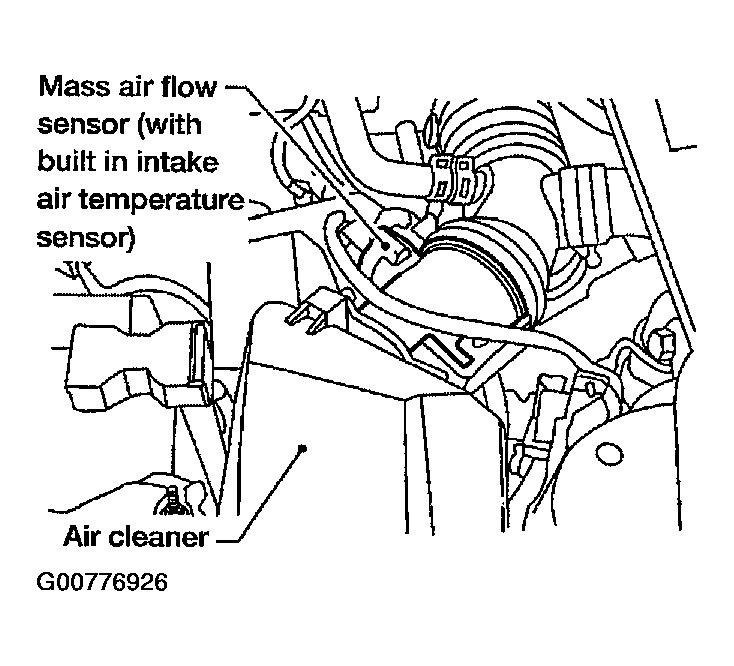

      Fig 2: Disconnecting MAF Sensor Harness Connector
      G00776926Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Check voltage between MAF sensor terminal 2 and ground with CONSULT-II or tester.

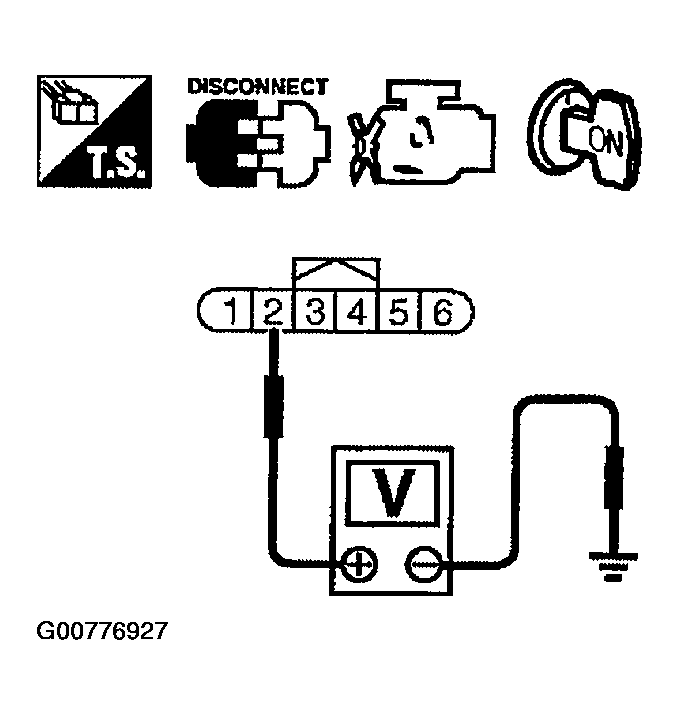

      Fig 3: Checking Voltage Between MAF Sensor Terminal 2 & Ground
      G00776927Courtesy of NISSAN MOTOR CO., U.S.A.

      Voltage: Battery voltage

    OK or NG

    1. OK: GO TO  6.
    2. NG: GO TO 5.
  5. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness for open or short between ECM relay and mass air flow sensor
    • Harness for open or short between mass air flow sensor and ECM
      1. Repair harness or connectors.
  6. CHECK MAF SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Disconnect TCM harness connector (A/T models).
    4. Check harness continuity between MAF sensor terminal 3 and ECM terminal 67, TCM terminal 42 (A/T models).

      Refer to WIRING DIAGRAM .

      Continuity should exist.

    5. Also check harness for short to ground and short to power.

    OK or NG

    1. OK: GO TO  8.
    2. NG: GO TO 7.
  7. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness for open or short between mass air flow sensor and ECM
    • Harness for open or short between mass air flow sensor and TCM (A/T models)
      1. Repair open circuit or short to ground or short to power in harness or connectors.
  8. CHECK MAF SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Check harness continuity between MAF sensor terminal 4 and ECM terminal 51. Refer to WIRING DIAGRAM .

      Continuity should exist.

    2. Also check harness for short to ground and short to power.

    OK or NG

    1. OK: GO TO 9.
    2. NG: Repair open circuit or short to ground or short or short to power in harness or connectors.
  9. CHECK MASS AIR FLOW SENSOR

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    1. OK: GO TO 10.
    2. NG: Replace mass air flow sensor.
  10. CHECK INTERMITTENT INCIDENT

    Perform "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

    1. INSPECTION END
