Intake Air Temperature Sensor

Check resistance between intake air temperature sensor terminals 1 and 2 under the following conditions.

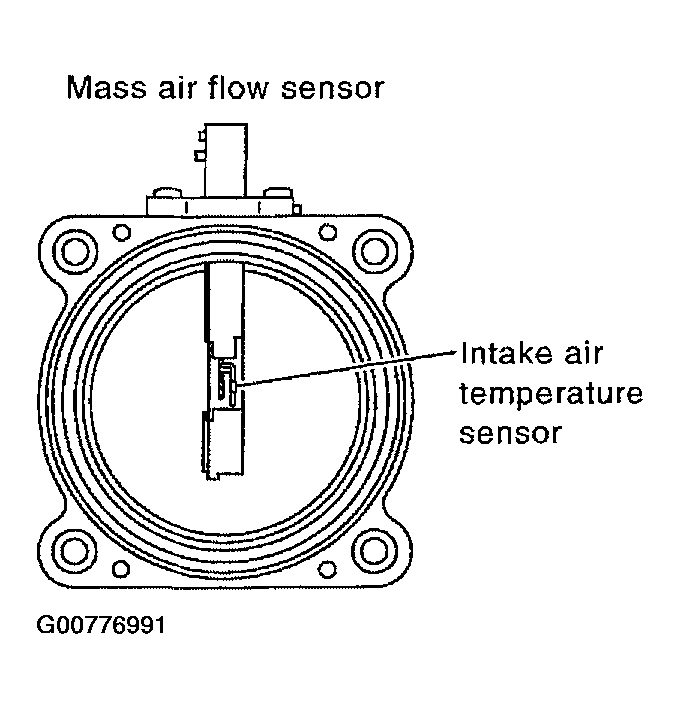

Fig 1: Identifying MAF Sensor & IAT Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.

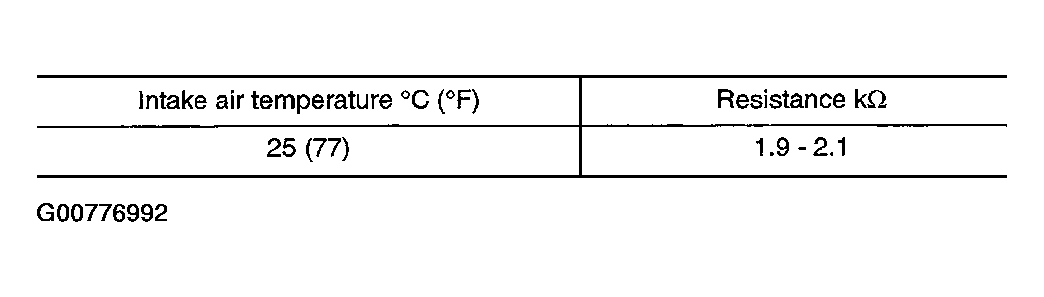

Fig 2: Intake Air Temperature Sensor Specification
Courtesy of NISSAN MOTOR CO., U.S.A.

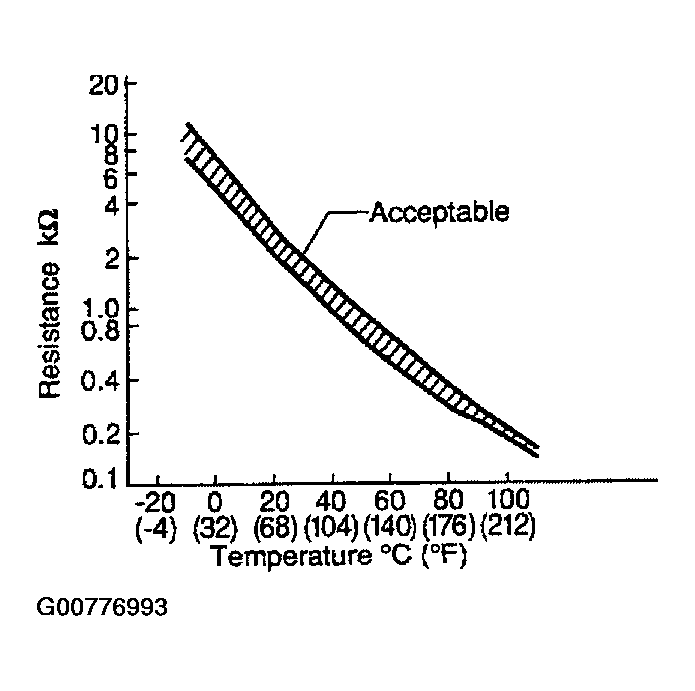

Fig 3: Intake Air Temperature Sensor Graph
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace mass air flow sensor (with intake air temperature sensor).
