With GST

  1. Start engine and warm it up to normal operating temperature.
  2. Turn ignition switch OFF and wait at least 10 seconds.
  3. Disconnect mass air flow sensor harness connector. Then restart and run engine for at least 5 seconds at idle speed.
  4. Stop engine and reconnect mass air flow sensor harness connector.

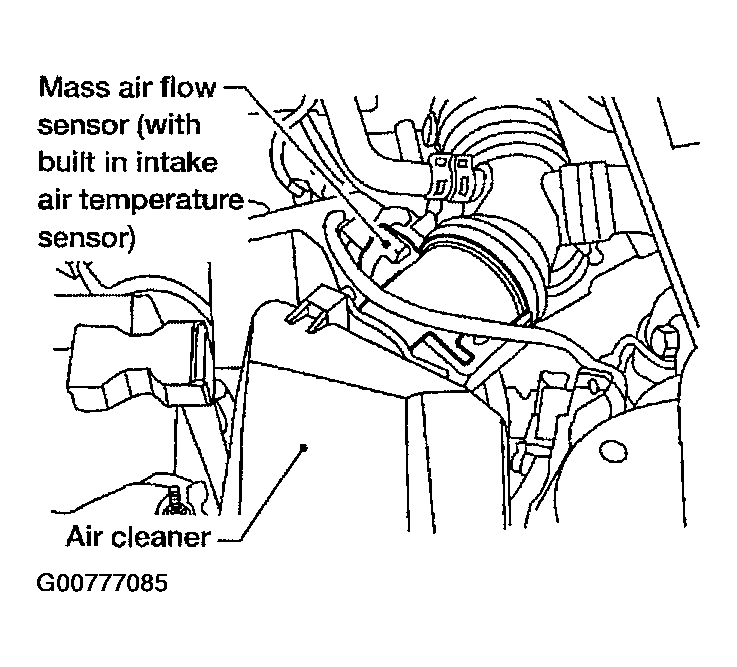

    Fig 1: Identifying Mass Air Flow Sensor Harness Connector
    G00777085Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Select MODE 3 with GST. Make sure DTC P0102 is detected.
  6. Select MODE 4 with GST and erase the DTC P0102.
  7. Start engine again and let it idle at least 10 minutes.
  8. Select MODE 7 with GST. The 1st trip DTC P0171 should be detected at this stage, if a malfunction exists. If so, go to . "DIAGNOSTIC PROCEDURE ".
  9. If it is difficult to start engine at step 7, the fuel injection system has a malfunction.
  10. Crank engine while depressing accelerator pedal. If engine starts, go to "DIAGNOSTIC PROCEDURE ".

    If engine does not start, check exhaust and intake air leak visually.
