Component Description

The fuel tank temperature sensor is used to detect the fuel temperature inside the fuel tank. The sensor modifies a voltage signal from the ECM. The modified signal returns to the ECM as the fuel temperature input. The sensor uses a thermistor which is sensitive to the change in temperature. The electrical resistance of the thermistor decreases as temperature increases.

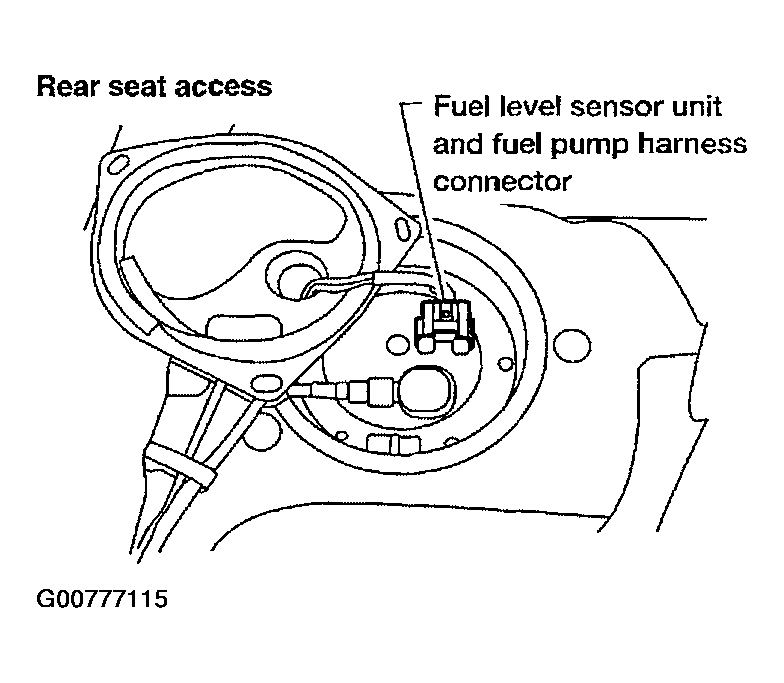

Fig 1: Identifying FTT Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

< Reference data>

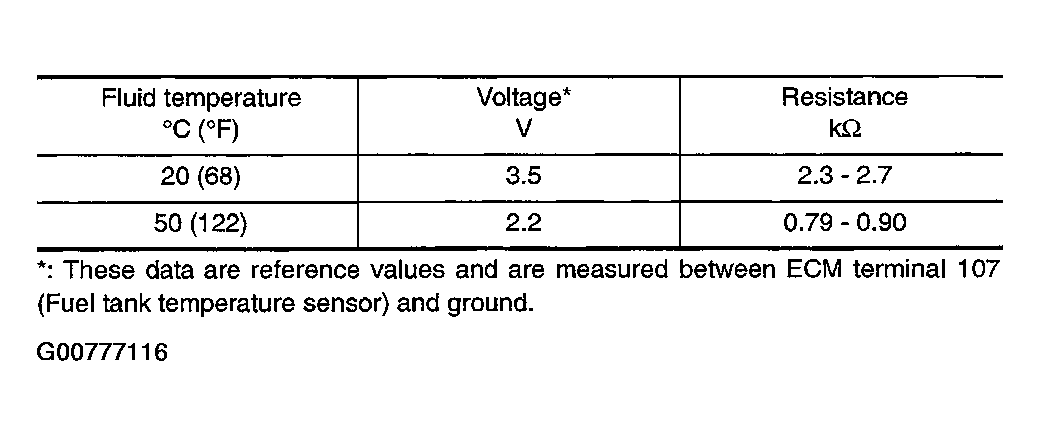

Fig 2: FTT Sensor Reference Data

Courtesy of NISSAN MOTOR CO., U.S.A.

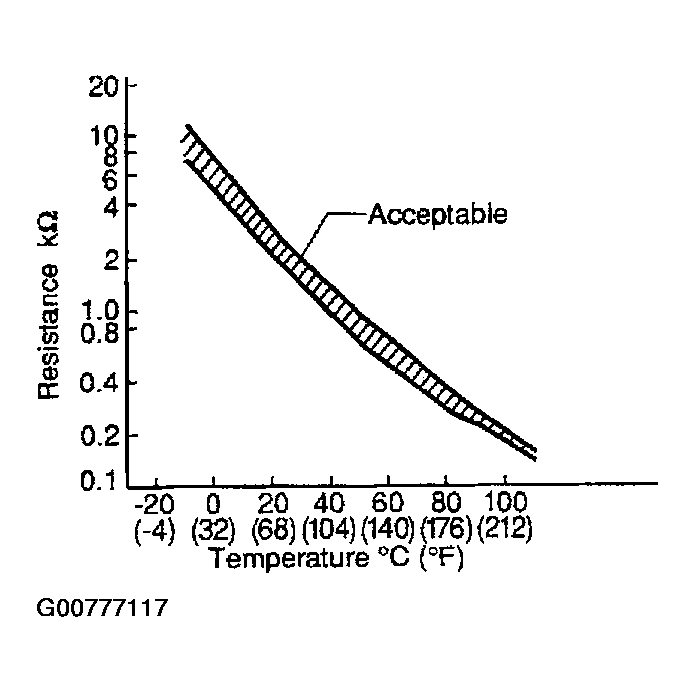

Fig 3: FTT Sensor Reference Graph

Courtesy of NISSAN MOTOR CO., U.S.A.
