Fuel Tank Temperature Sensor

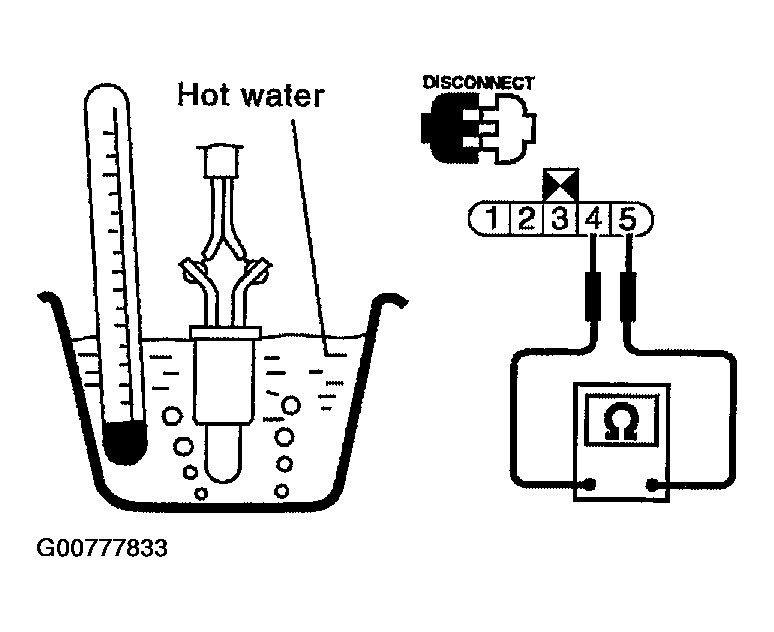

Check resistance by heating with hot water or heat gun as shown in the figure.
Fig 1: Checking Fuel Tank Temperature Sensor Resistance
Courtesy of NISSAN MOTOR CO., U.S.A.

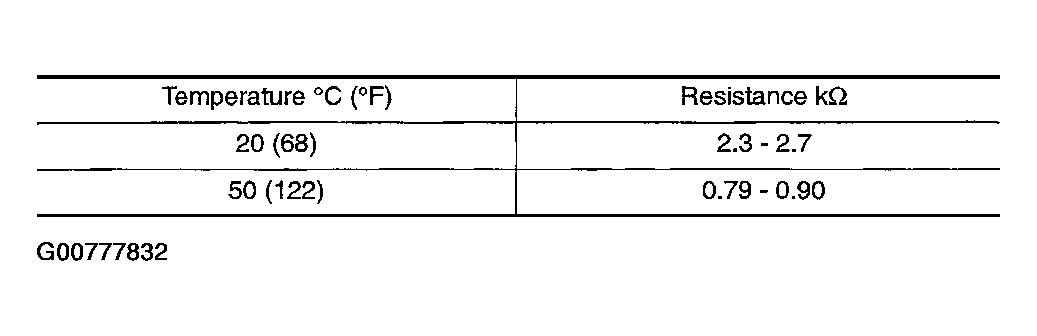

Fig 2: Fuel Tank Temperature Sensor Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
