Throttle Control Motor

  1. Disconnect electric throttle control actuator harness connector.
  2. Check resistance between terminals 3 and 6.

    Resistance: Approximately 1 - 15 Ω [at 25 °C (77°F)]

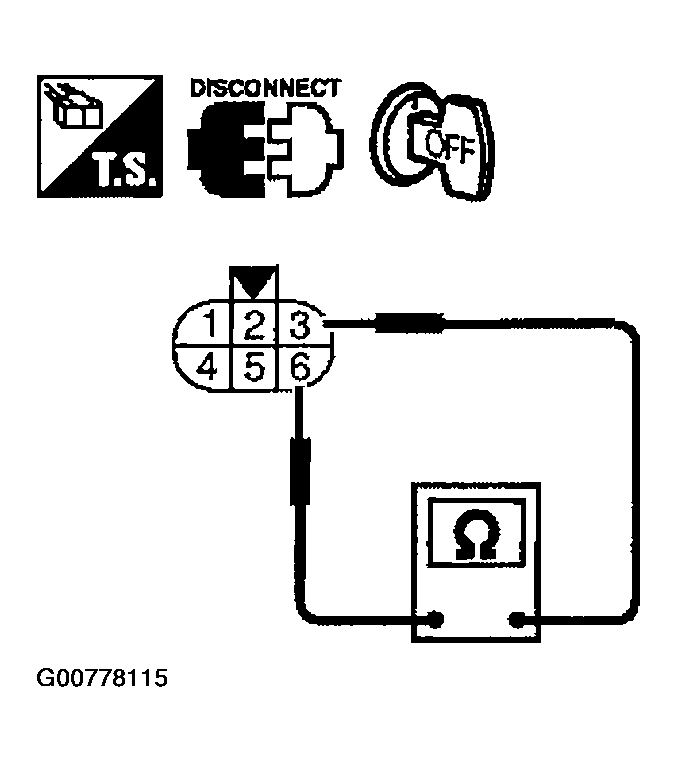

    3. Fig 1: Checking Resistance Between Electric Throttle Control Actuator Terminals 3 & 6
    G00778115Courtesy of NISSAN MOTOR CO., U.S.A.
  3. If NG, replace electric throttle control actuator and go to next step.
  4. Perform "THROTTLE VALVE CLOSED POSITION LEARNING ".
  5. Perform "IDLE AIR VOLUME LEARNING ".
