Throttle Control Motor Relay

  1. Apply 12V direct current between relay terminals 1 and 2.
  2. Check continuity between relay terminals 3 and 5.

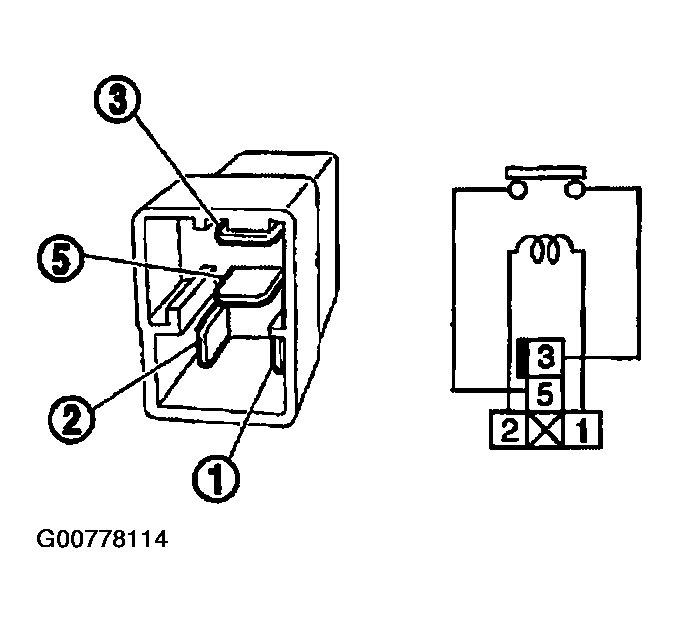

    Fig 1: Checking Continuity Between Throttle Control Motor Relay Terminals 3 & 5
    G00778114Courtesy of NISSAN MOTOR CO., U.S.A.

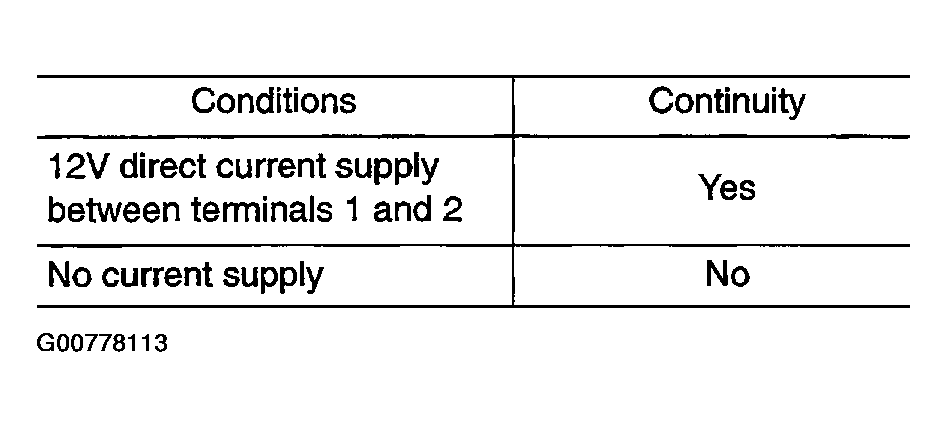

    Fig 2: Throttle Control Motor Relay Continuity Table
    G00778113Courtesy of NISSAN MOTOR CO., U.S.A.
  3. If NG, replace throttle control motor relay.
