Diagnostic Procedure

RETIGHTEN GROUND SCREWS
1. Turn ignition switch OFF
2. Loosen and retighten engine ground screws.

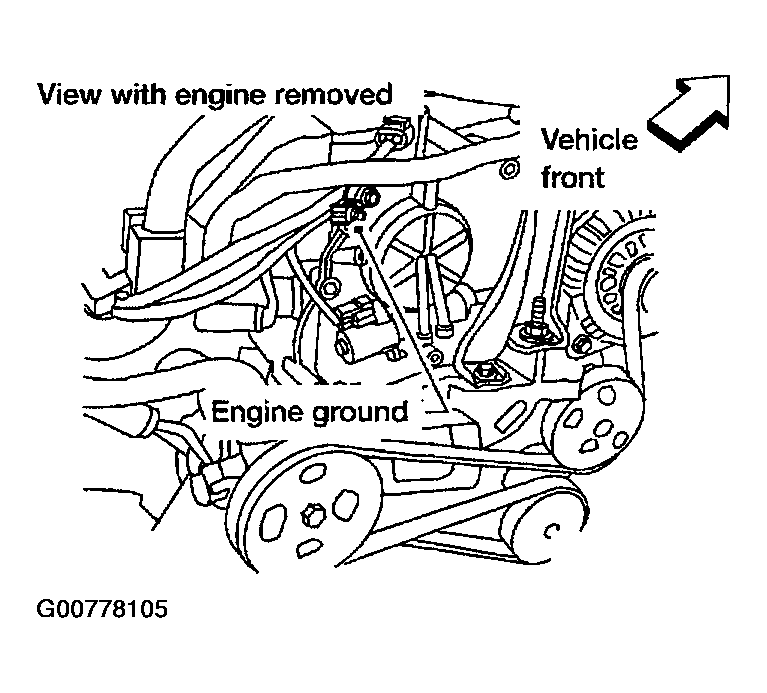

  Fig 1: Identifying Engine Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.

  GO TO 2.
CHECK THROTTLE CONTROL MOTOR RELAY SIGNAL CIRCUIT
Check voltage between ECM terminal 3 and ground under the following conditions with CONSULT-II or tester.

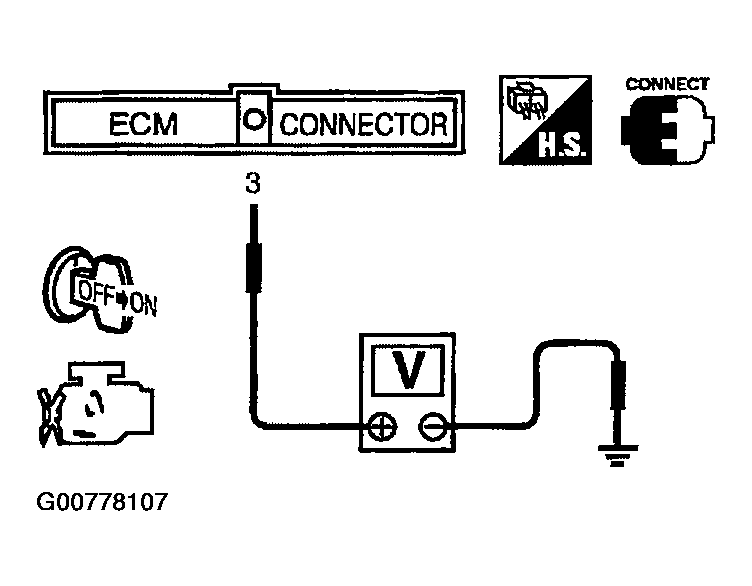

Fig 2: Checking Voltage Between ECM Terminal 3 & Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

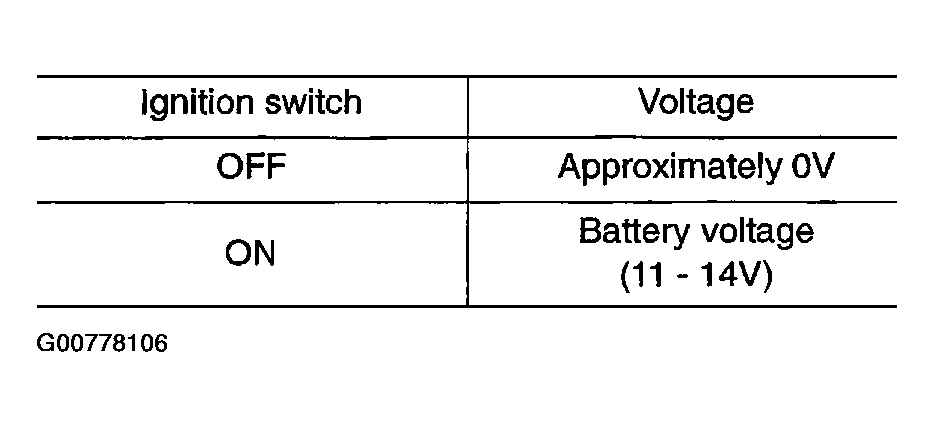

Fig 3: Voltage Specification Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: GO TO 8.
2. NG: GO TO 3.
CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect throttle control motor relay.

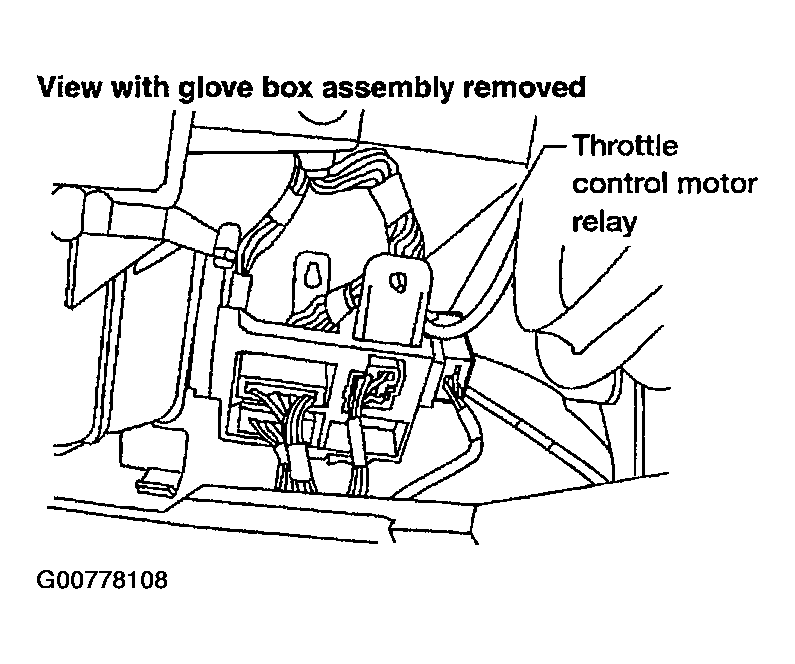

  Fig 4: Disconnecting Throttle Control Motor Relay
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check voltage between throttle control motor relay terminals 2, 5 and ground.

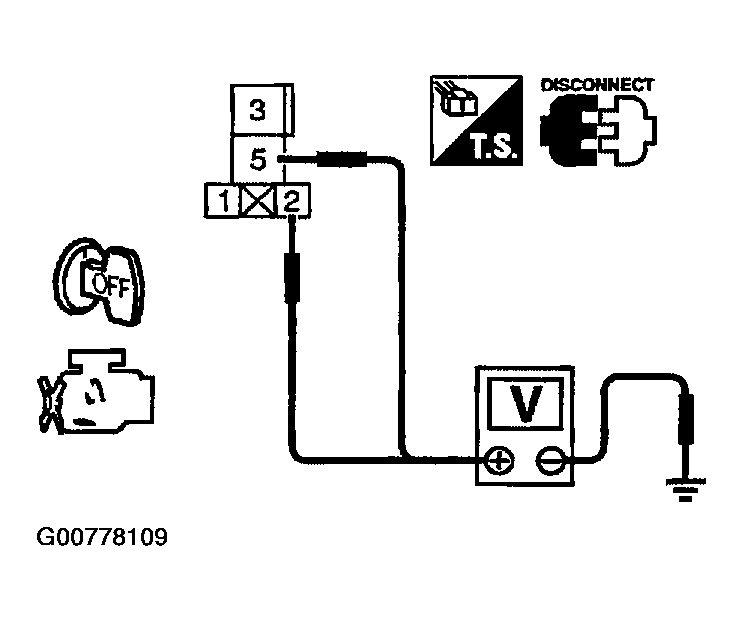

  Fig 5: Checking Voltage Between Throttle Control Motor Relay Terminals 2, 5 & Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Voltage: Battery voltage
OK or NG
1. OK: GO TO 5.
2. NG: GO TO 4.
DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors E10, F48
- Fuse and fusible link box connector E23
- 15A fuse
- Harness for open or short between throttle control motor relay and fuse
  Repair open circuit or short to ground or short to power in harness or connectors.
CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 3 and throttle control motor relay terminal 3. Refer to WIRING DIAGRAM .
  Continuity should exist.
3. Also check harness for short to ground and short to power.
OK or NG
1. OK: GO TO 6.
2. NG: Repair open circuit or short to ground or short to power in harness or connectors.
CHECK THROTTLE CONTROL MOTOR RELAY OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check continuity between ECM terminal 104 and throttle control motor relay terminal 1. Refer to WIRING DIAGRAM .
  Continuity should exist.
2. Also check harness for short to ground and short to power.
OK or NG
1. OK: GO TO 7.
2. NG: Repair open circuit or short to ground or short to power in harness or connectors.
CHECK THROTTLE CONTROL MOTOR RELAY
Refer to "COMPONENT INSPECTION ".

OK or NG
1. OK: GO TO 11.
2. NG: Replace throttle control motor relay.
CHECK THROTTLE CONTROL MOTOR OUTPUT SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Turn ignition switch OFF.
2. Disconnect electric throttle control actuator harness connector.
3. Disconnect ECM harness connector.
4. Check harness continuity between the following terminals.
  Refer to WIRING DIAGRAM .

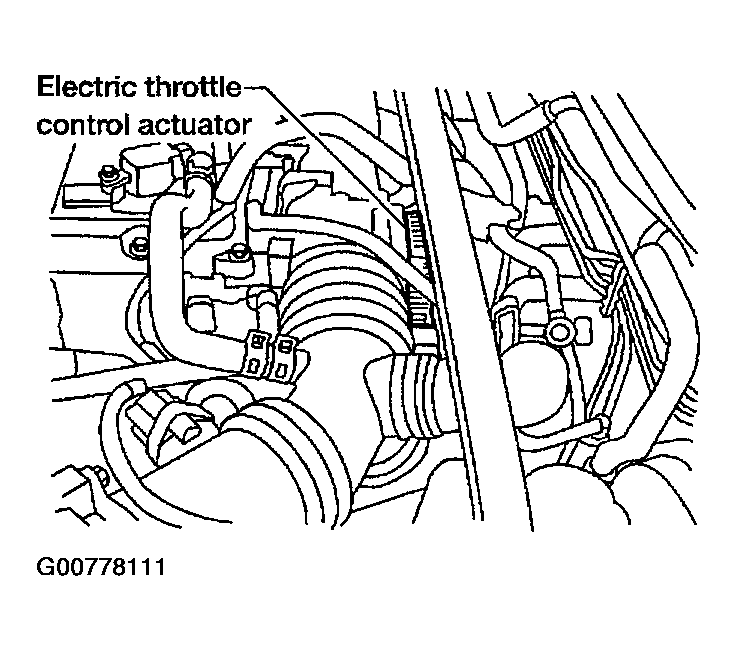

  Fig 6: Identifying Electric Throttle Control Actuator
  Courtesy of NISSAN MOTOR CO., U.S.A.

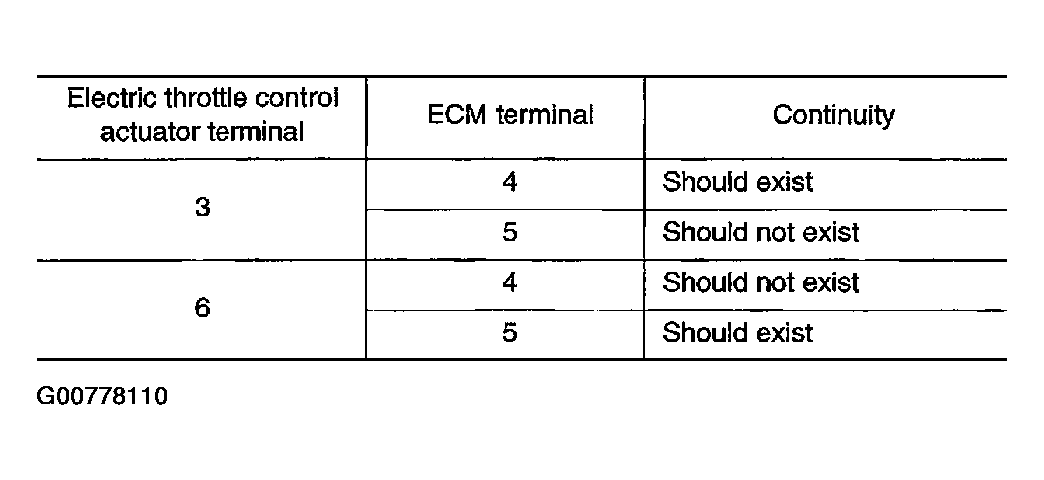

  Fig 7: Electric Throttle Control Actuator & ECM Terminal Continuity Table
  Courtesy of NISSAN MOTOR CO., U.S.A.
5. Also check harness for short to ground and short to power.
OK or NG
1. OK: GO TO 9.
2. NG: Repair open circuit or short to ground or short to power in harness or connectors.
CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY
1. Remove the intake air duct.
2. Check if foreign matter is caught between the throttle valve and the housing.

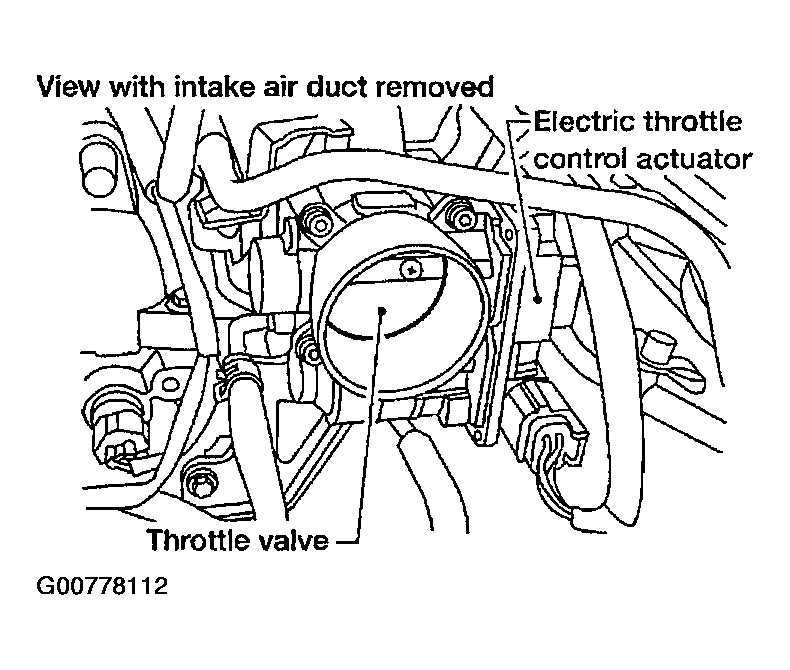

Fig 8: Checking Electric Throttle Control Actuator
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: GO TO 10.
2. NG: Remove the foreign matter and clean the electric throttle control actuator inside.
CHECK THROTTLE CONTROL MOTOR
Refer to "COMPONENT INSPECTION ".

OK or NG
1. OK: GO TO 11.
2. NG: GO TO 12.
CHECK INTERMITTENT INCIDENT
Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

OK or NG
1. OK: GO TO 12.
2. NG: Repair or replace harness or connectors.
REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform "THROTTLE VALVE CLOSED POSITION LEARNING ".
3. Perform "IDLE AIR VOLUME LEARNING ".
1. INSPECTION END
