Diagnostic Procedure

  1. RETIGHTEN GROUND SCREWS
    1. Turn ignition switch OFF.
    2. Loosen and retighten engine ground screws.

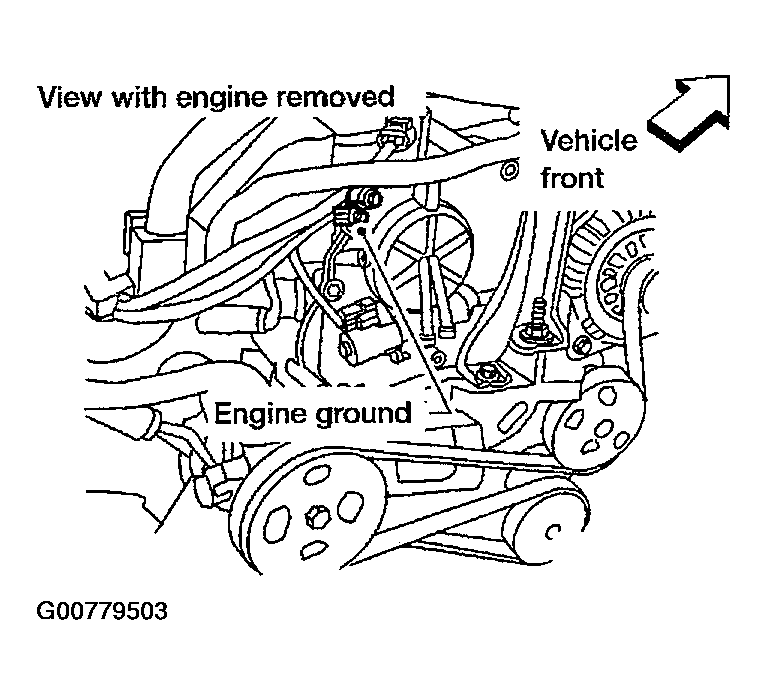

      Fig 1: Identifying Engine Ground
      G00779503Courtesy of NISSAN MOTOR CO., U.S.A.
      1. GO TO 2.
  2. CHECK THROTTLE POSITION SENSOR POWER SUPPLY CIRCUIT
    1. Disconnect electric throttle control actuator harness connector.
    2. Turn ignition switch ON.

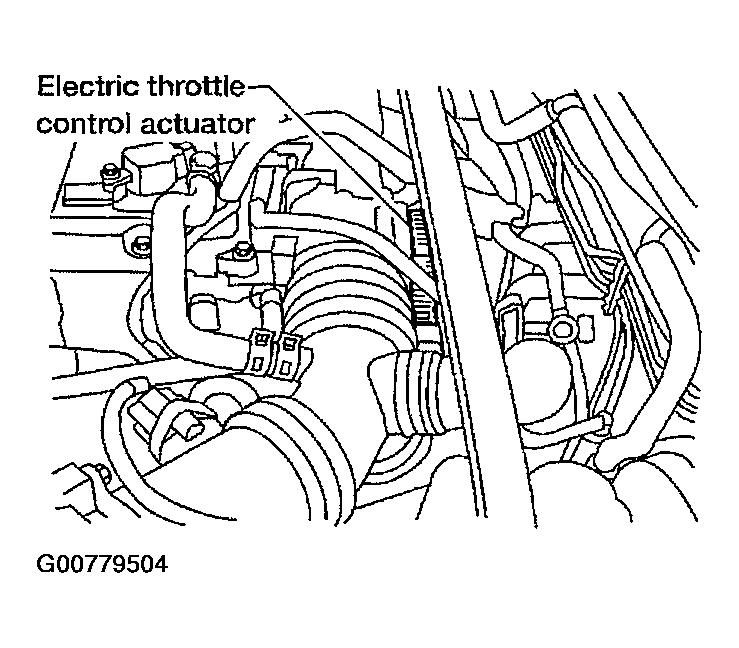

      Fig 2: Disconnecting Electric Throttle Control Actuator Harness Connector
      G00779504Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Check voltage between electric throttle control actuator terminal 1 and ground with CONSULT-II or tester.

      Voltage: Approximately 5V

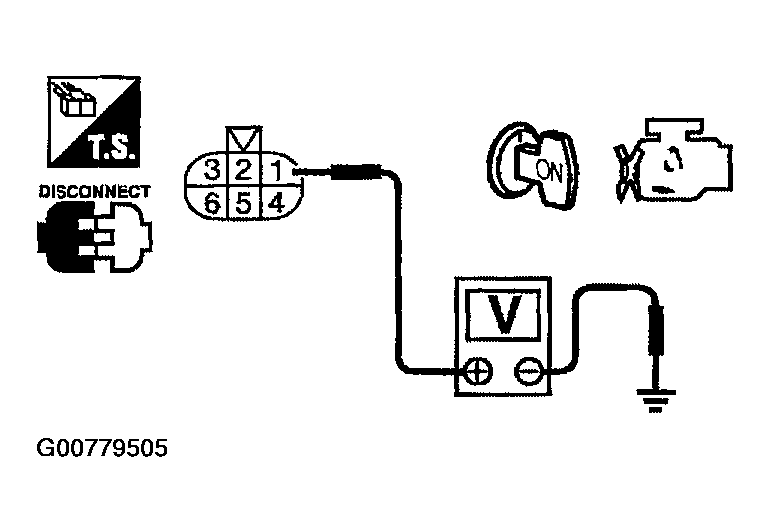

    4. Fig 3: Checking Voltage Between Electric Throttle Control Actuator Terminal 1 & Ground
      G00779505Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 3.
    2. NG: Repair open circuit or short to ground or short to power in harness or connectors.
  3. CHECK THROTTLE POSITION SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between electric throttle control actuator terminal 5 and engine ground. Refer to WIRING DIAGRAM .

      Continuity should exist.

    4. Also check harness for short to ground and short to power.

    OK or NG

    1. OK: GO TO 4.
    2. NG: Repair open circuit or short to ground or short to power in harness or connectors.
  4. CHECK THROTTLE POSITION SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Check harness continuity between ECM terminal 50 and electric throttle control actuator terminal 4, ECM terminal 69 and electric throttle control actuator terminal 2.

      Refer to WIRING DIAGRAM .

      Continuity should exist.

    2. Also check harness for short to ground and short to power.

    OK or NG

    1. OK: GO TO 5.
    2. NG: Repair open circuit or short to ground or short to power in harness or connectors.
  5. CHECK THROTTLE POSITION SENSOR

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    1. OK: GO TO  7.
    2. NG: GO TO 6.
  6. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
    1. Replace the electric throttle control actuator.
    2. Perform "THROTTLE VALVE CLOSED POSITION LEARNING ".
    3. Perform "IDLE AIR VOLUME LEARNING ".
      1. INSPECTION END
  7. CHECK INTERMITTENT INCIDENT

    Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

    1. INSPECTION END
