Fuel Pump

  1. Disconnect fuel level sensor unit and fuel pump harness connector.
  2. Check resistance between "fuel level sensor unit and fuel pump" terminals 1 and 3.

    Resistance: Approximately 1.0Ω [at 25°C (77°F)]

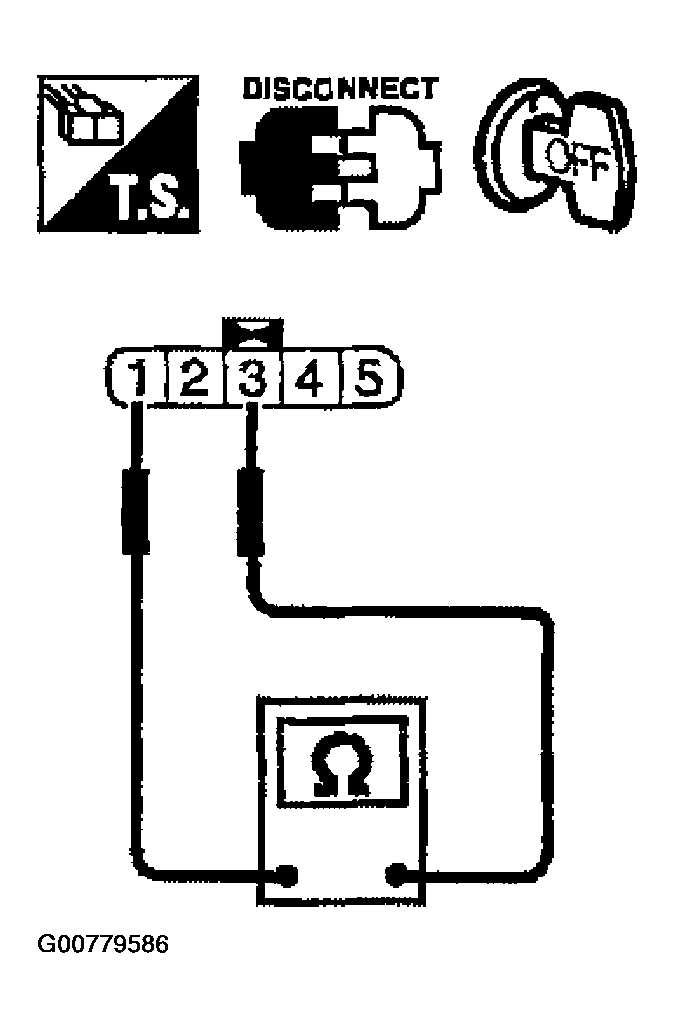

Fig 1: Checking Resistance Between Fuel Level Sensor Unit Terminals 1 & 3
G00779586Courtesy of NISSAN MOTOR CO., U.S.A.
