Fuel Pump Relay

Check continuity between terminals 3 and 5 under the following conditions.

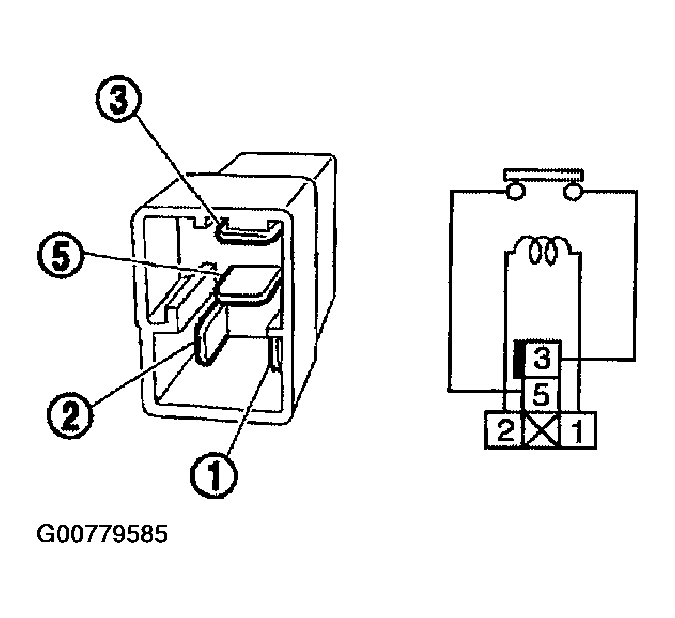

Fig 1: Checking Continuity Between Fuel Pump Relay Terminals 3 & 5

Courtesy of NISSAN MOTOR CO., U.S.A.

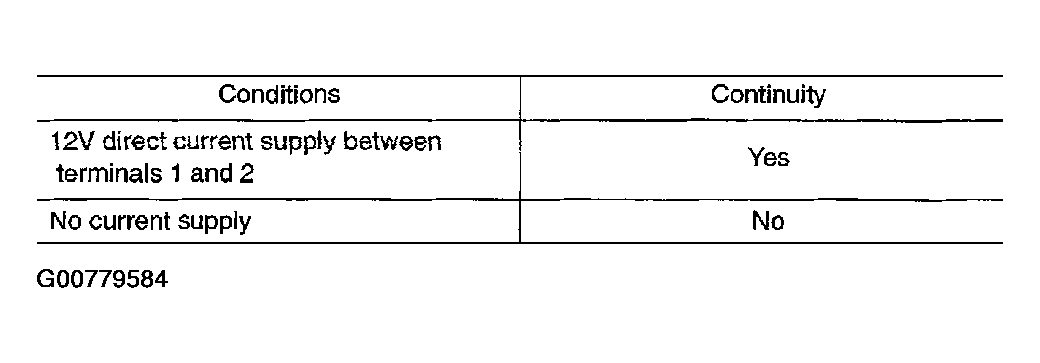

Fig 2: Continuity & Condition Table

Courtesy of NISSAN MOTOR CO., U.S.A.
