Ignition Signal: Wiring Diagram

NOTE: For references to "PG-Power" in wiring diagrams, see POWER DISTRIBUTION in SYSTEM WIRING DIAGRAMS.

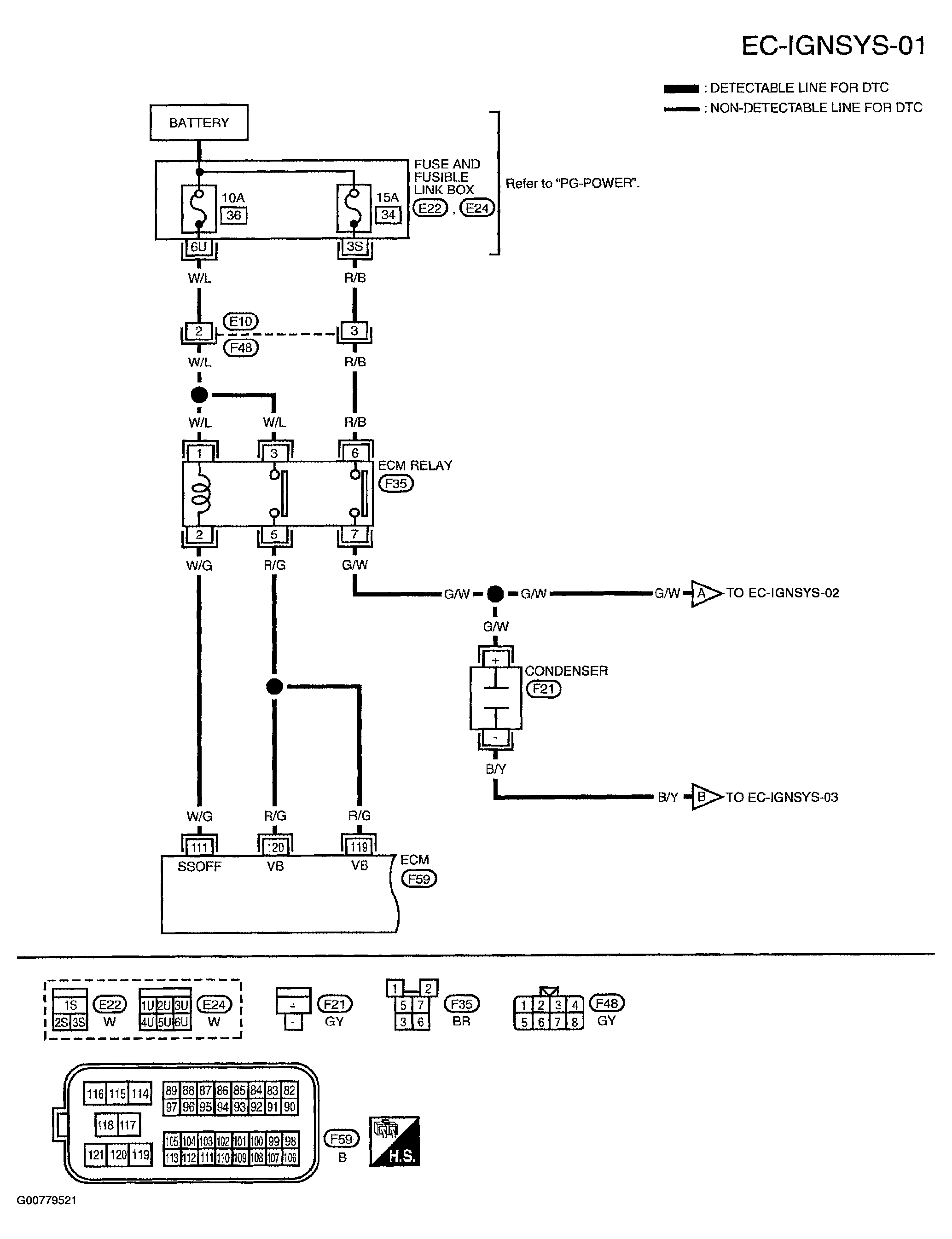

Fig 1: Ignition Signal Wiring Diagram (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

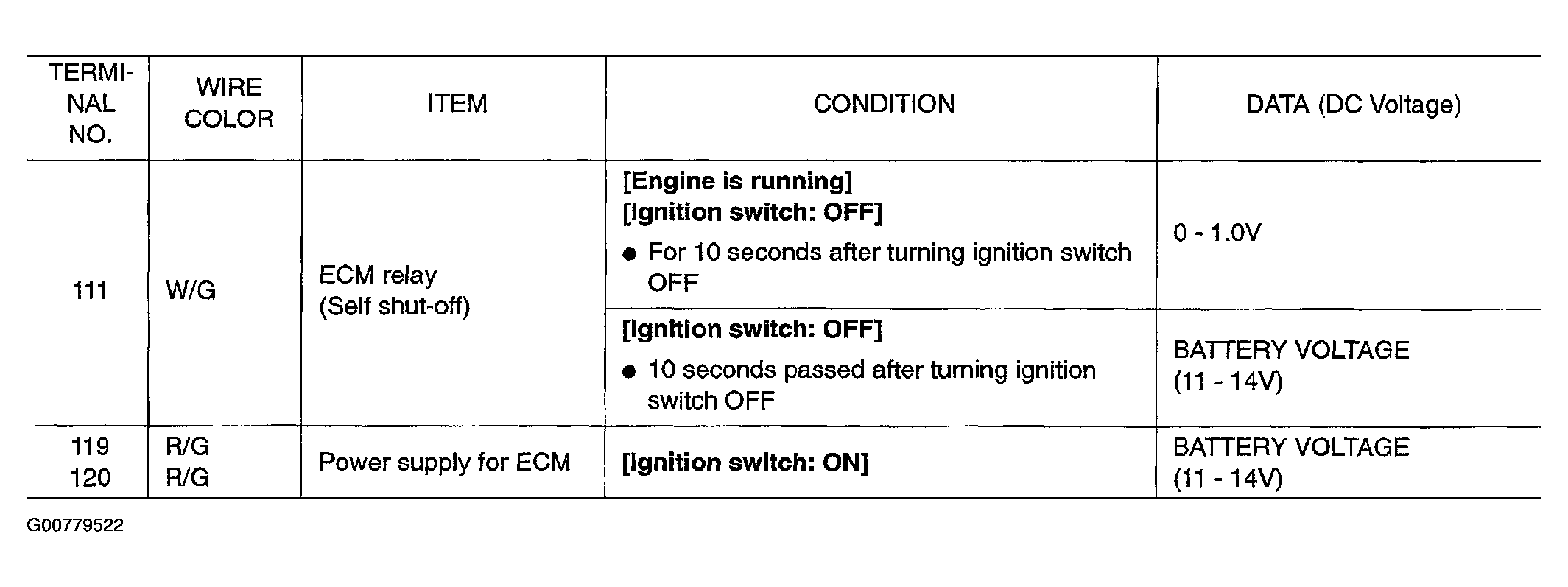

Fig 2: Ignition Signal Specification Data (EC-IGNSYS-01)

Courtesy of NISSAN MOTOR CO., U.S.A.

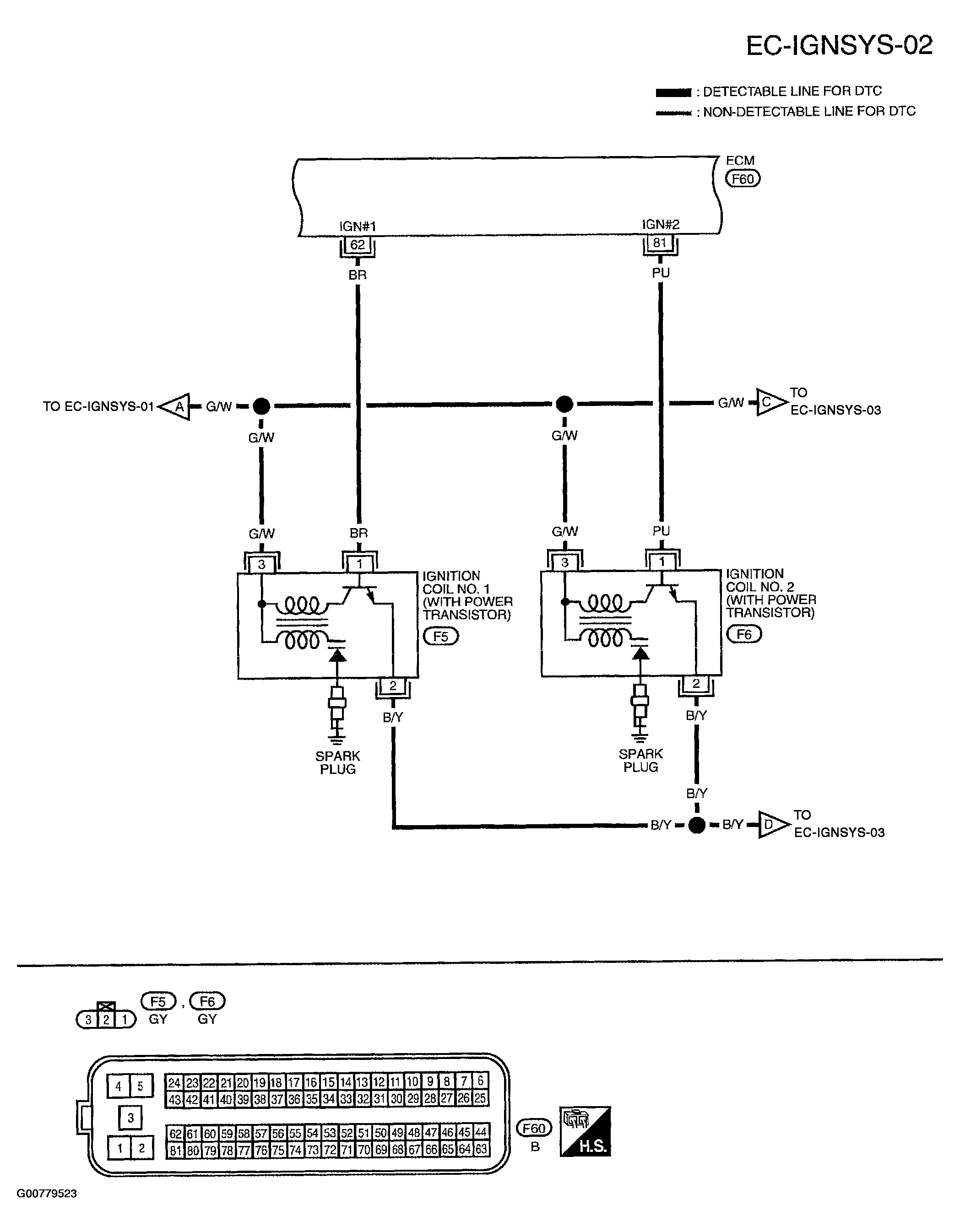

Fig 3: Ignition Signal Wiring Diagram (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

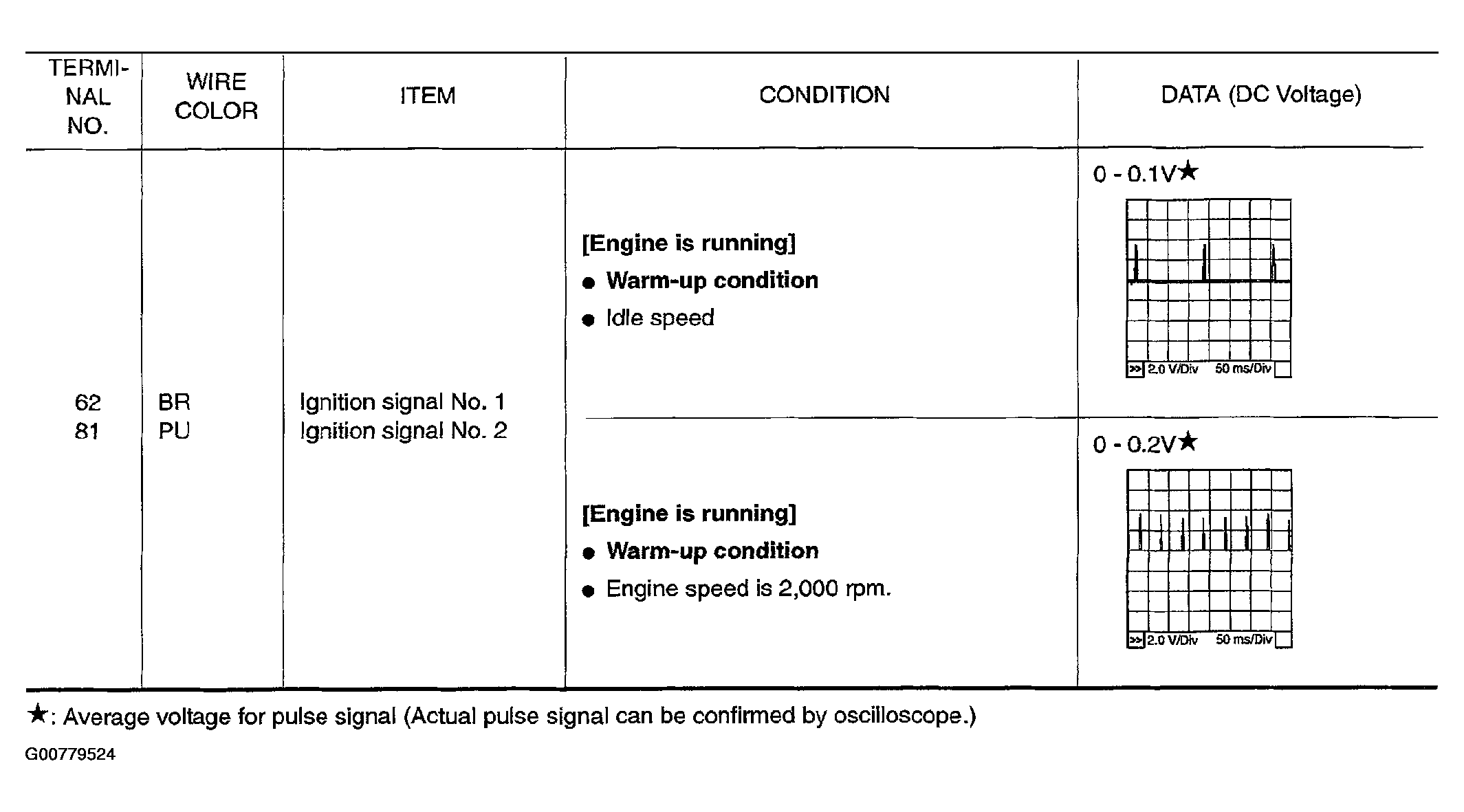

Fig 4: Ignition Signal Specification Data (EC-IGNSYS-02)

Courtesy of NISSAN MOTOR CO., U.S.A.

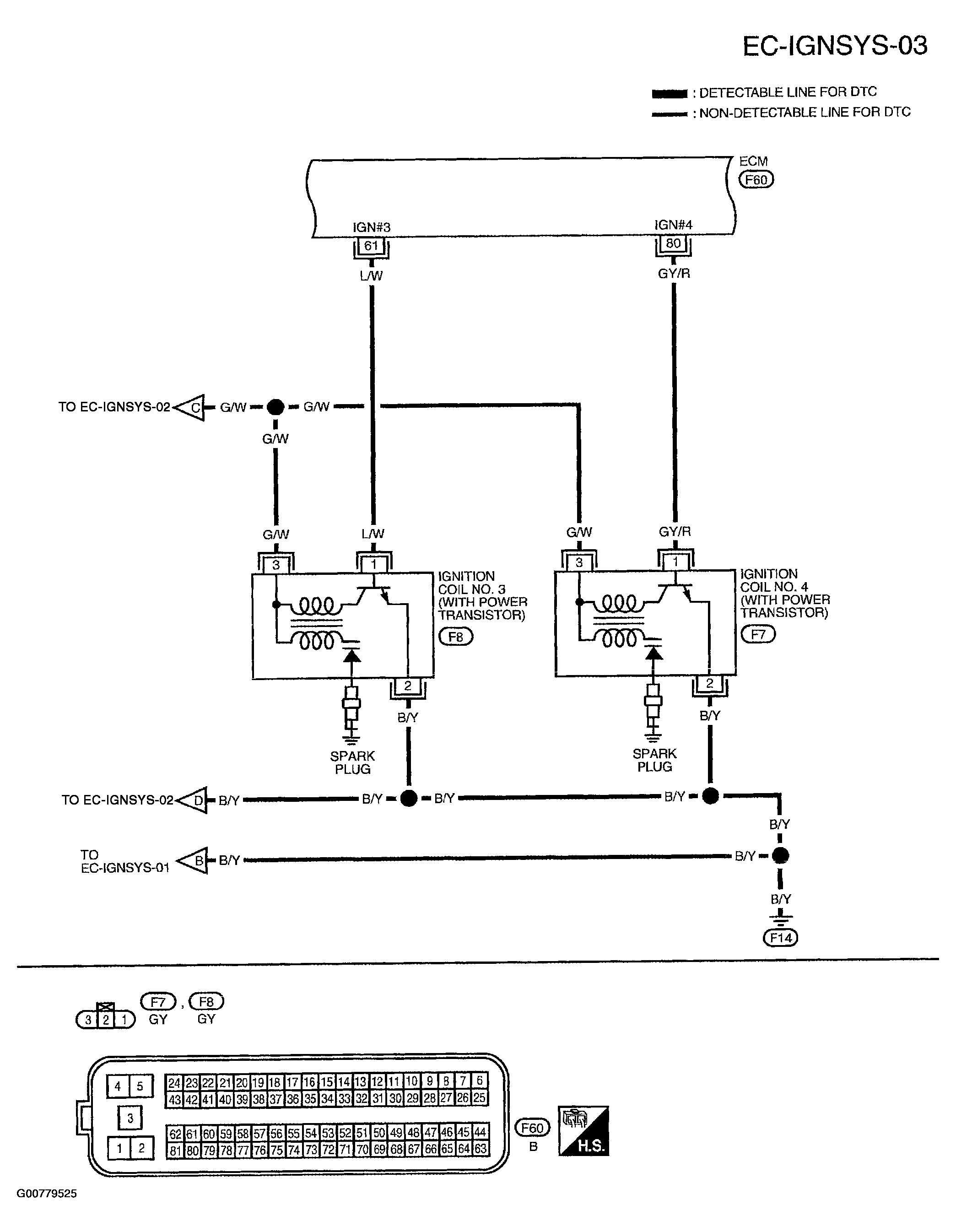

Fig 5: Ignition Signal Wiring Diagram (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

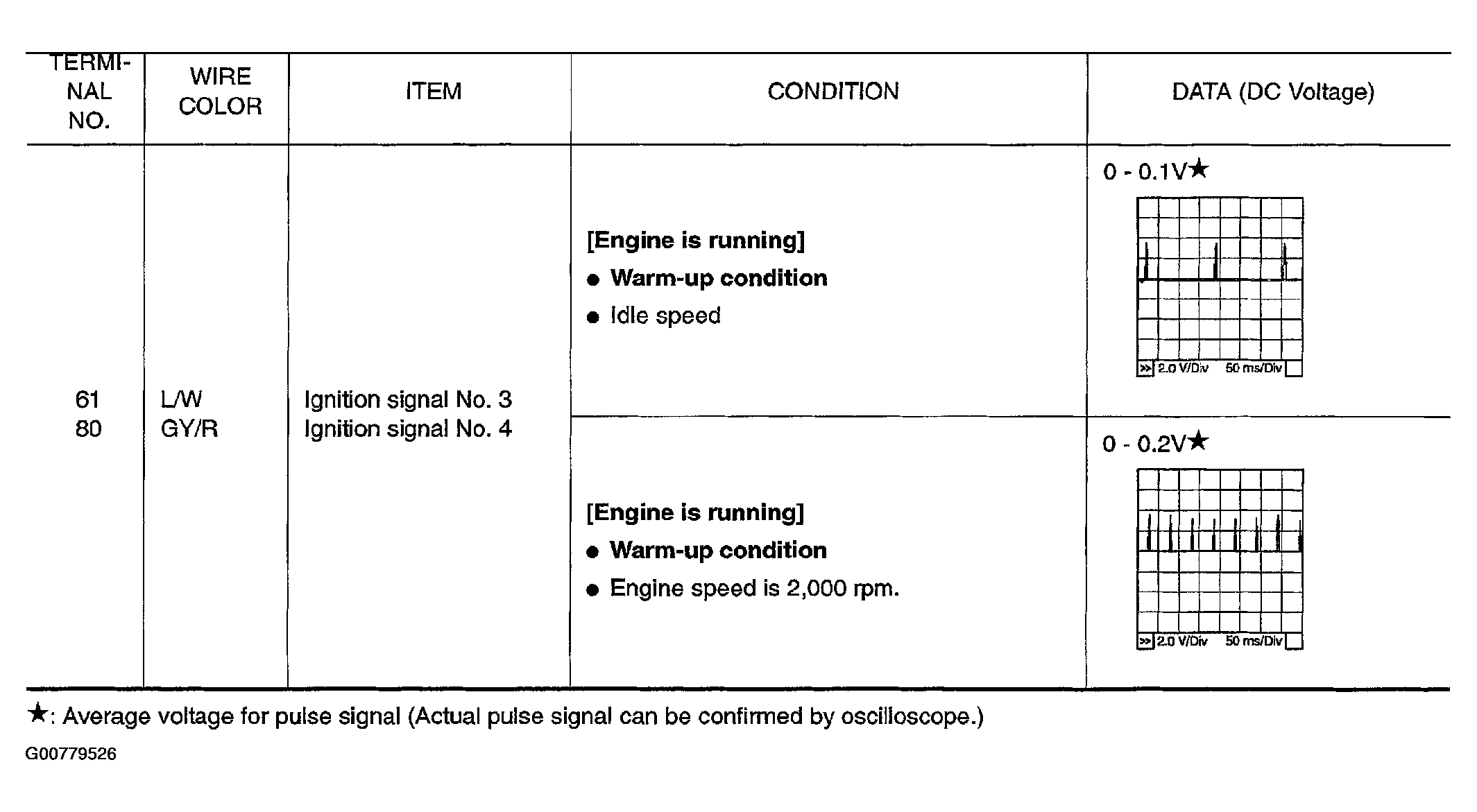

Fig 6: Ignition Signal Specification Data (EC-IGNSYS-03)

Courtesy of NISSAN MOTOR CO., U.S.A.
