Intake Air Temperature Sensor

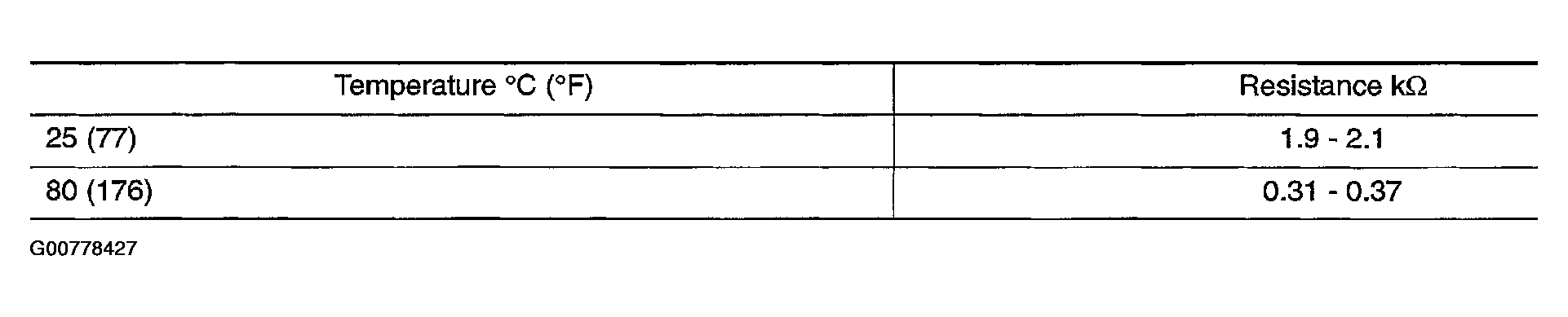

Fig 1: Intake Air Temperature Sensor Specification Table
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
