Test Item

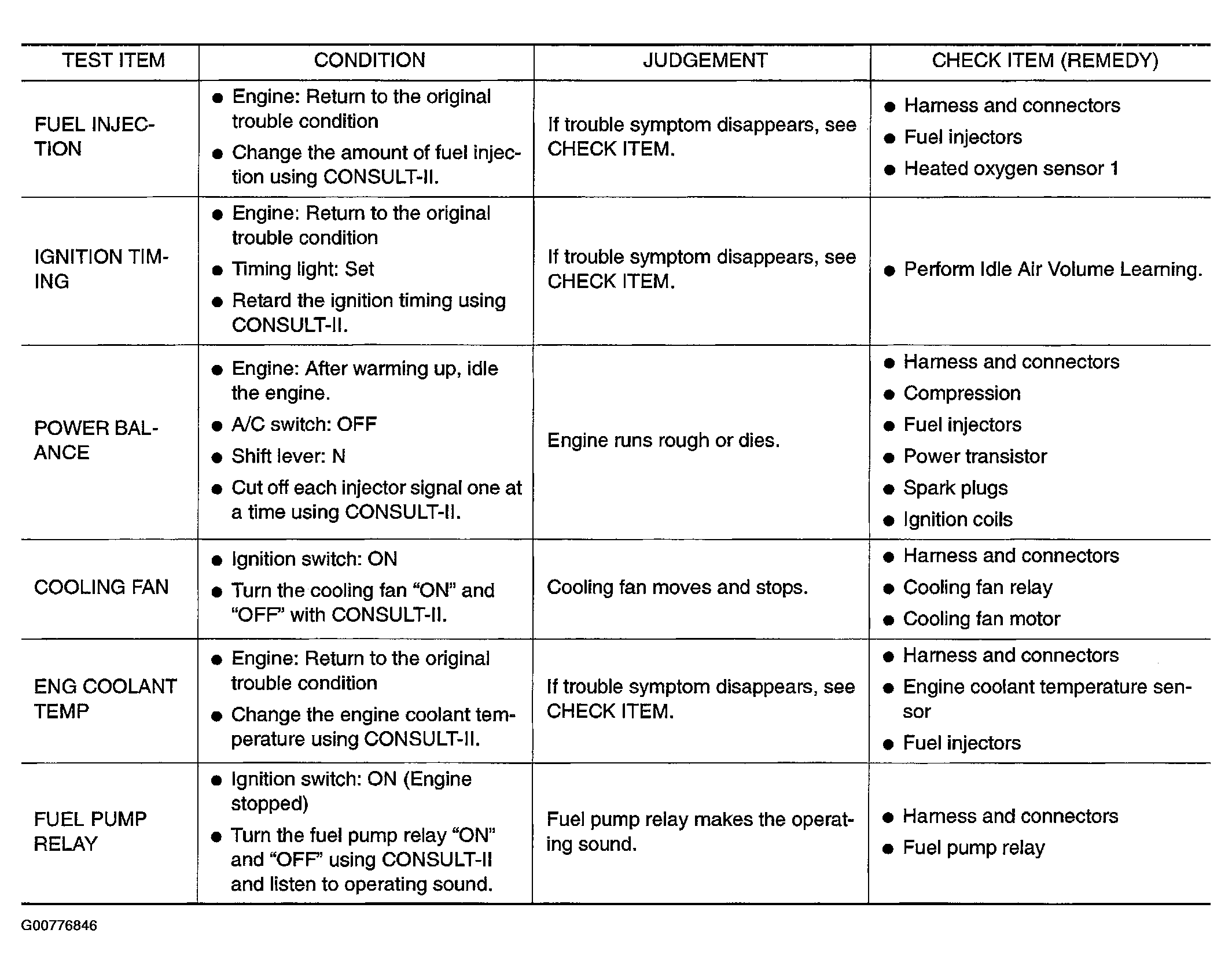

Fig 1: Active Test Mode (1 Of 2)
G00776846Courtesy of NISSAN MOTOR CO., U.S.A.

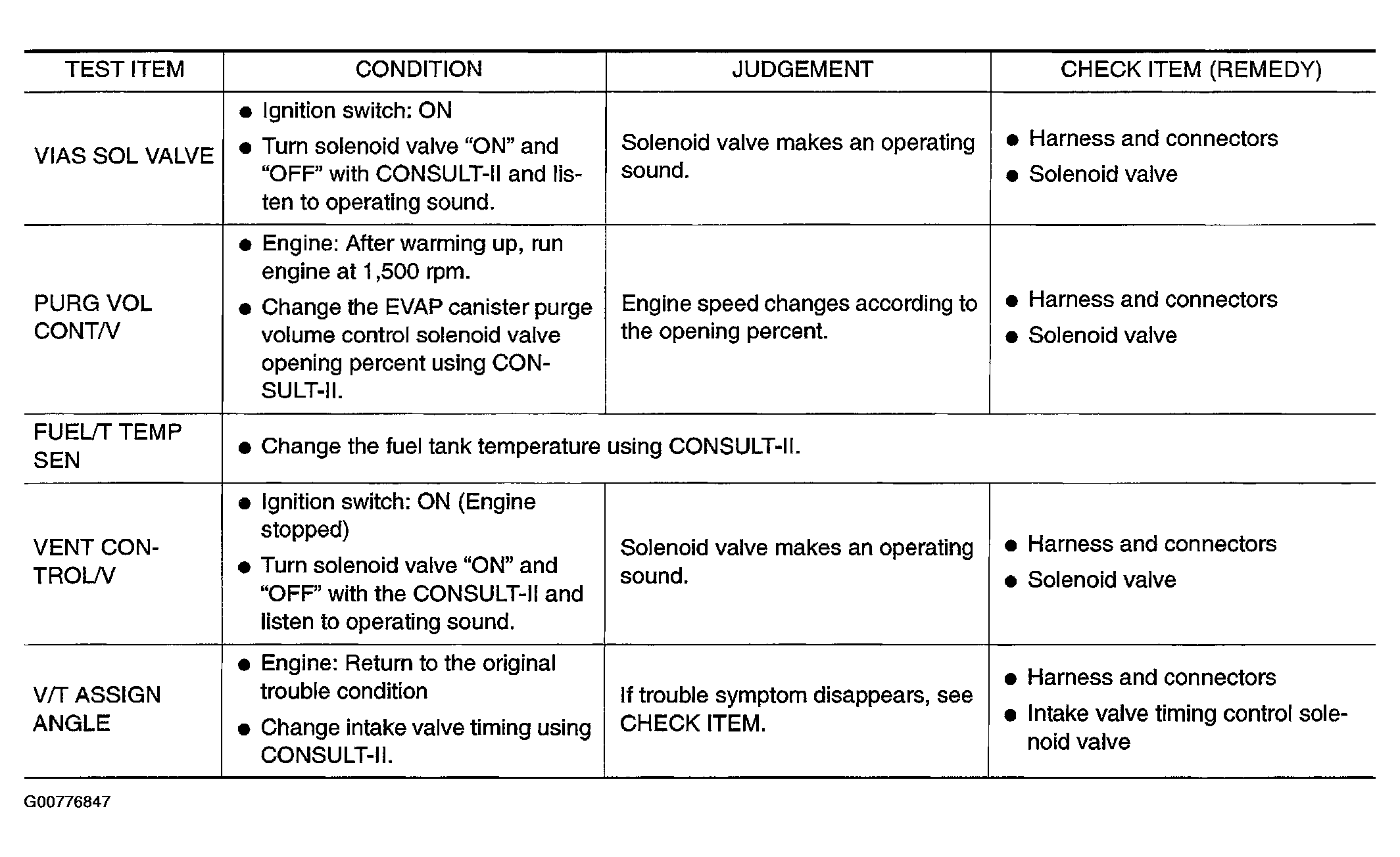

Fig 2: Active Test Mode (2 Of 2)
G00776847Courtesy of NISSAN MOTOR CO., U.S.A.
