Monitored Item

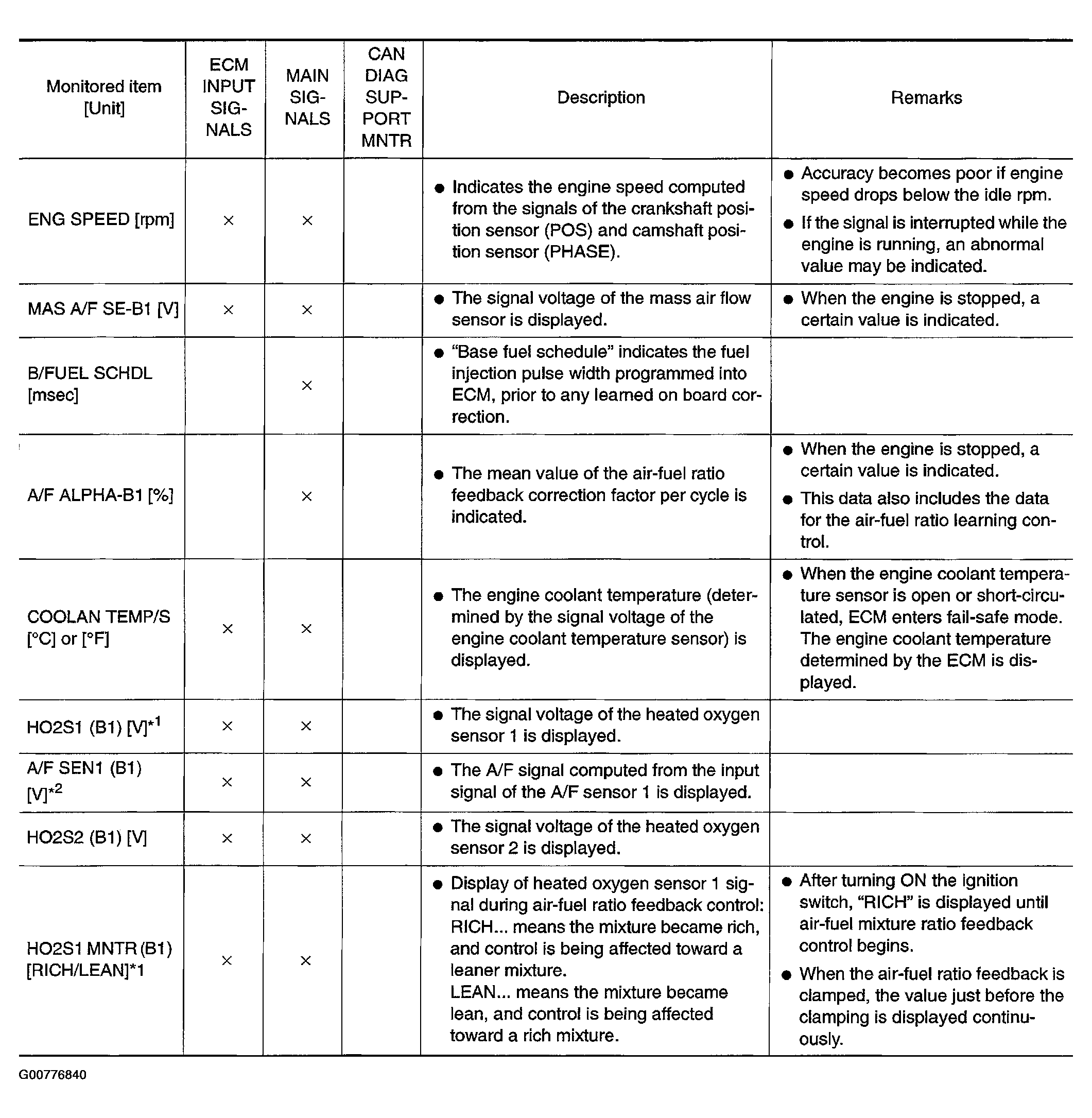

Fig 1: Data Monitor Mode (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

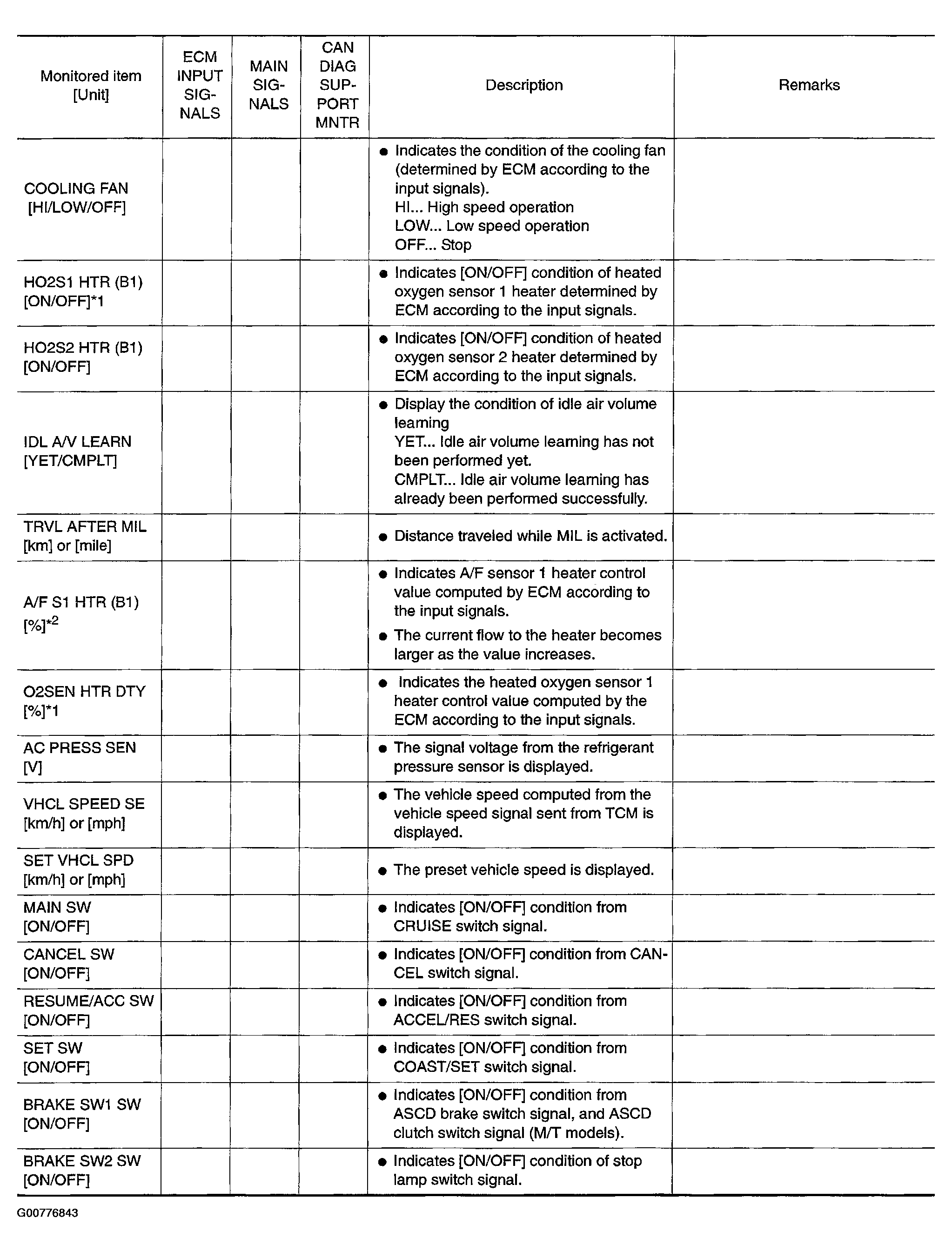

Fig 2: Data Monitor Mode (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

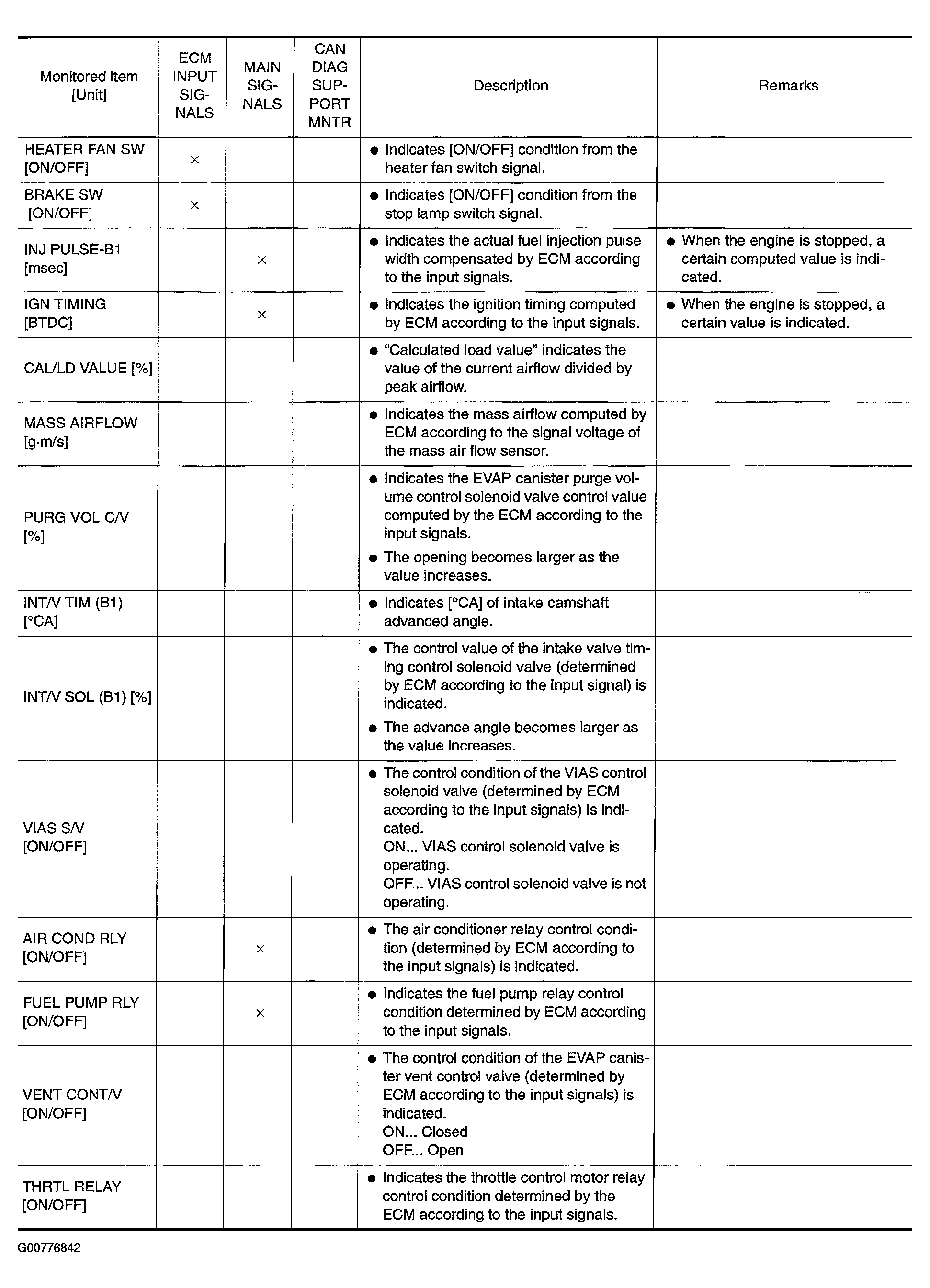

Fig 3: Data Monitor Mode (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

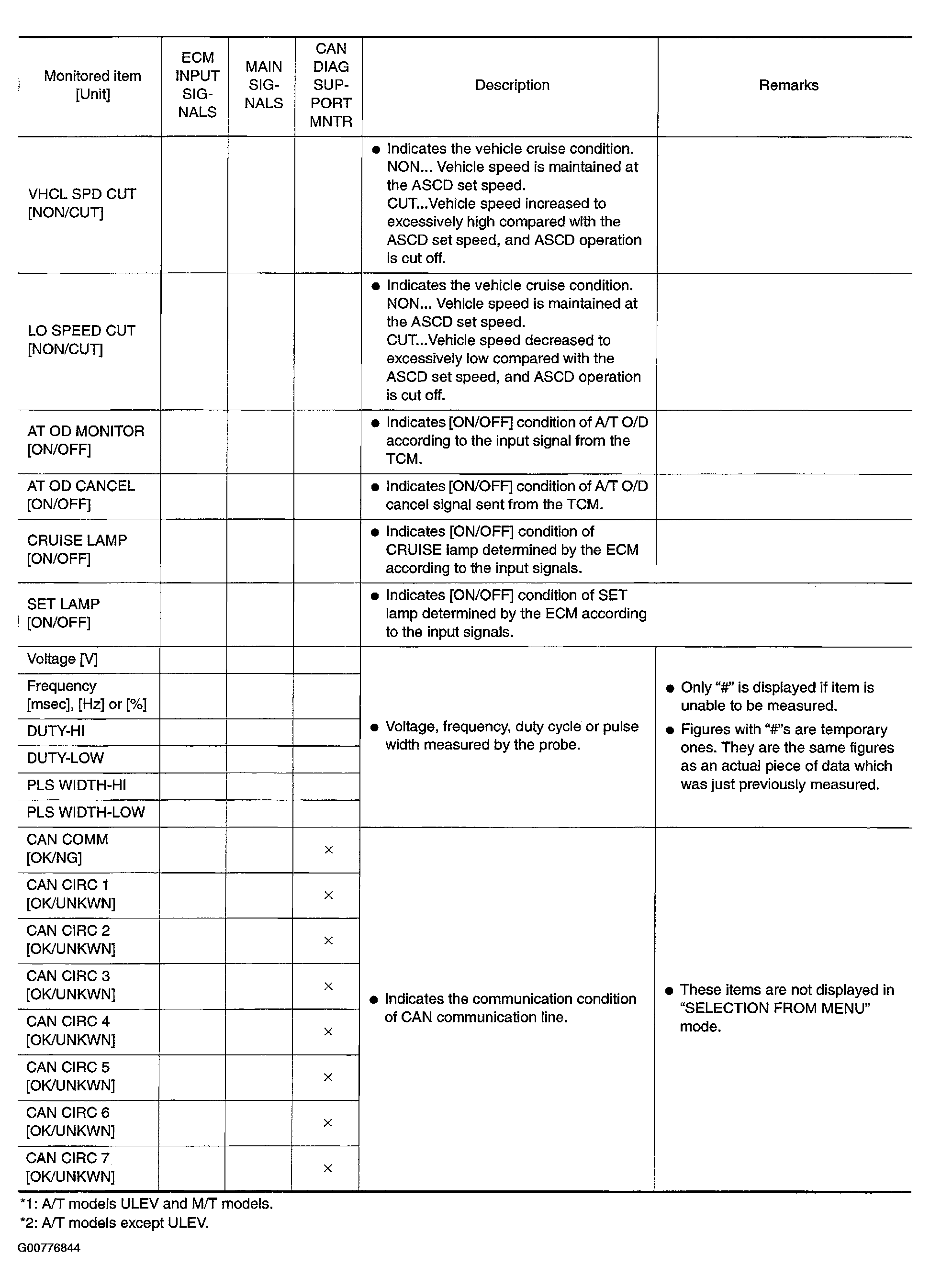

Fig 4: Data Monitor Mode (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

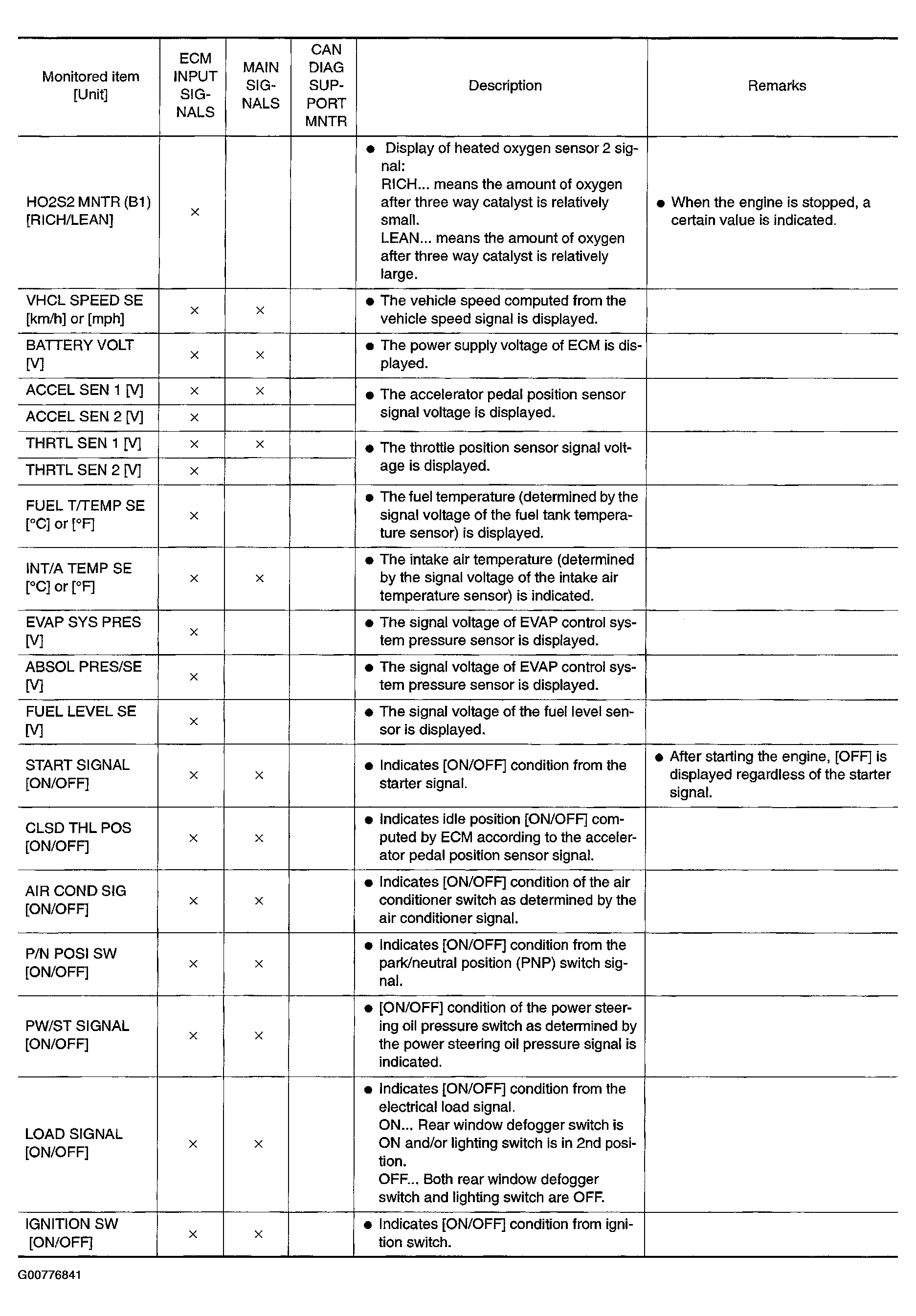

Fig 5: Data Monitor Mode (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
