With Consult-II

1. Reconnect harness connectors disconnected.
2. Turn ignition switch ON.
3. Perform "VIAS SOL VALVE" in "ACTIVE TEST" mode.
4. Check air passage continuity and operation delay time under the following conditions.

Fig 1: Checking Air Passage Continuity & Operation Delay Time (With Consult-II)

Courtesy of NISSAN MOTOR CO., U.S.A.

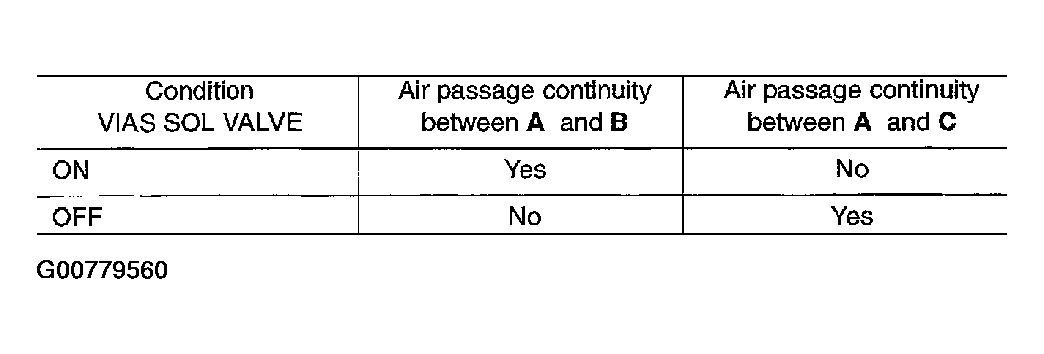

Fig 2: Air Passage Continuity Table (With Consult-II)

Courtesy of NISSAN MOTOR CO., U.S.A.

Operation takes less than 1 second.
