With GST

Check air passage continuity and operation delay time under the following conditions.

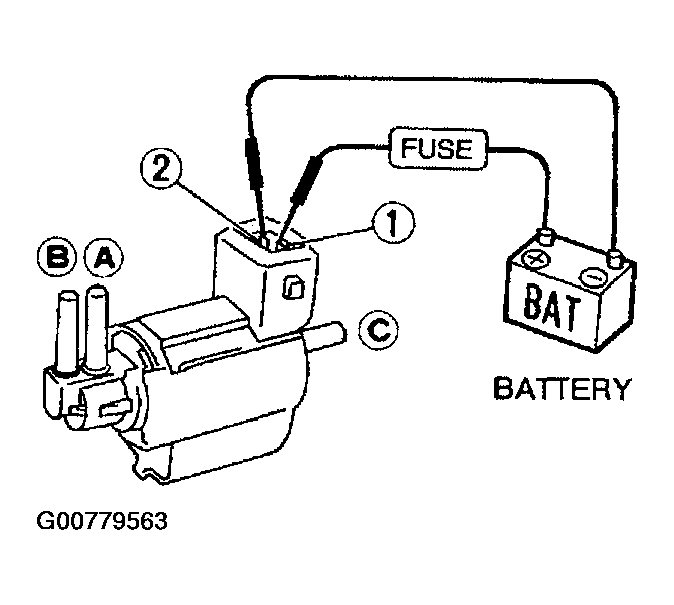

Fig 1: Checking Air Passage Continuity & Operation Delay Time (With GST)

Courtesy of NISSAN MOTOR CO., U.S.A.

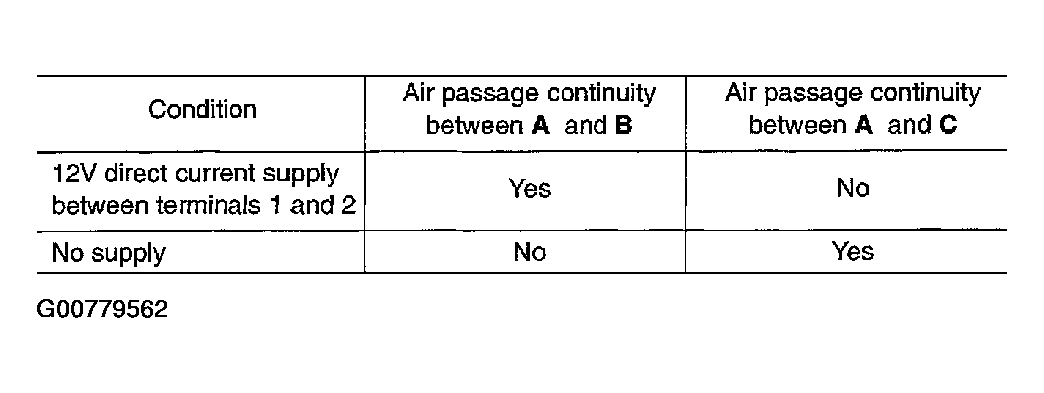

Fig 2: Air Passage Continuity Table (With GST)

Courtesy of NISSAN MOTOR CO., U.S.A.

Operation takes less than 1 second.
