Ignition Signal Check

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK IGNITION SIGNAL
    1. Disconnect the display unit connector.
    2. Turn ignition switch ON.
    3. Check voltage between display unit harness connector M39 terminal 3 (G) and ground.
      1. Battery voltage should exist.

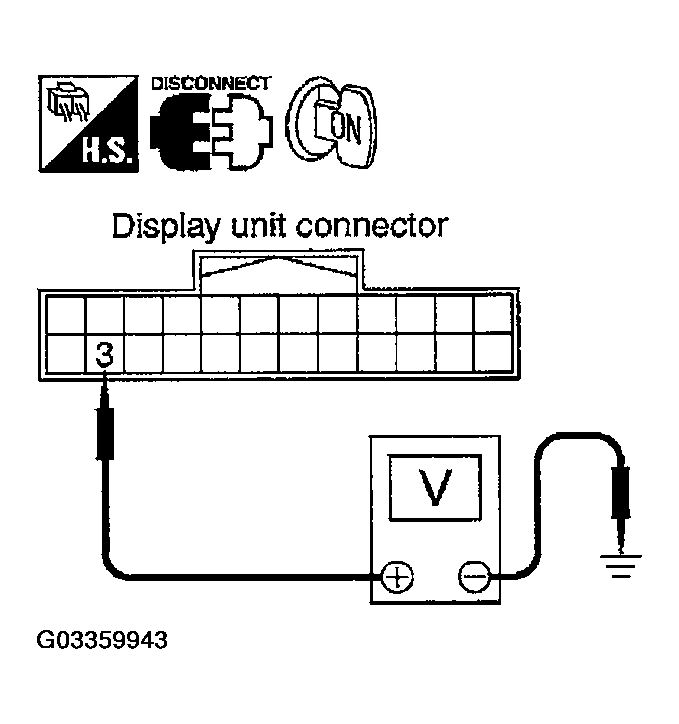

        2. Fig 1: Checking Voltage Between Display Unit Harness Connector M39 Terminal 3 And Ground
        G03359943Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK : Replace display unit.
    2. NG : Check harness for open or short between display unit and fuse.
