Wiring Diagram - COMM -

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

For references to "PG-Power" in wiring diagrams, see POWER DISTRIBUTION in SYSTEM WIRING DIAGRAMS.

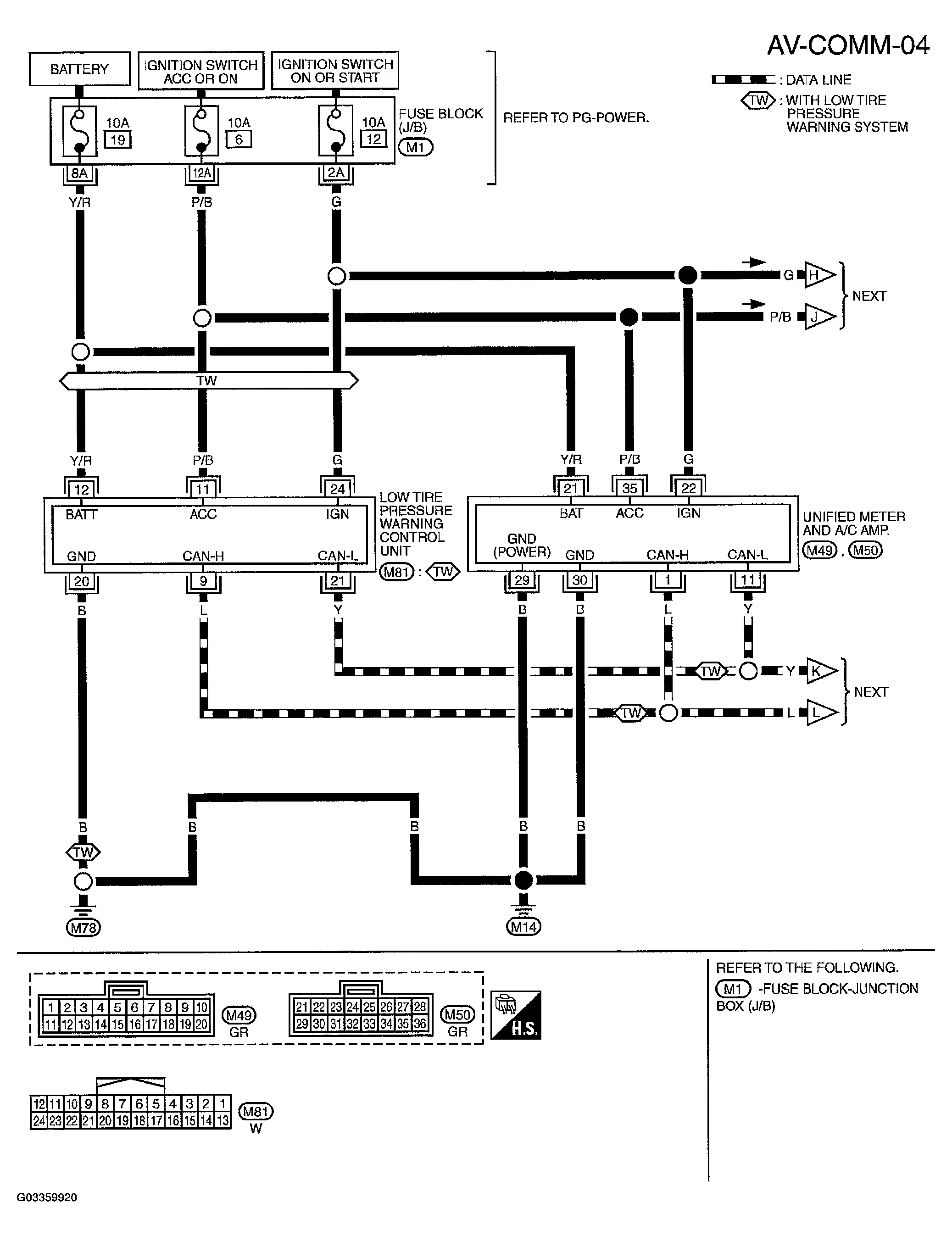

Fig 1: Wiring Diagram - Communication System - AV-COMM-04

Courtesy of NISSAN MOTOR CO., U.S.A.

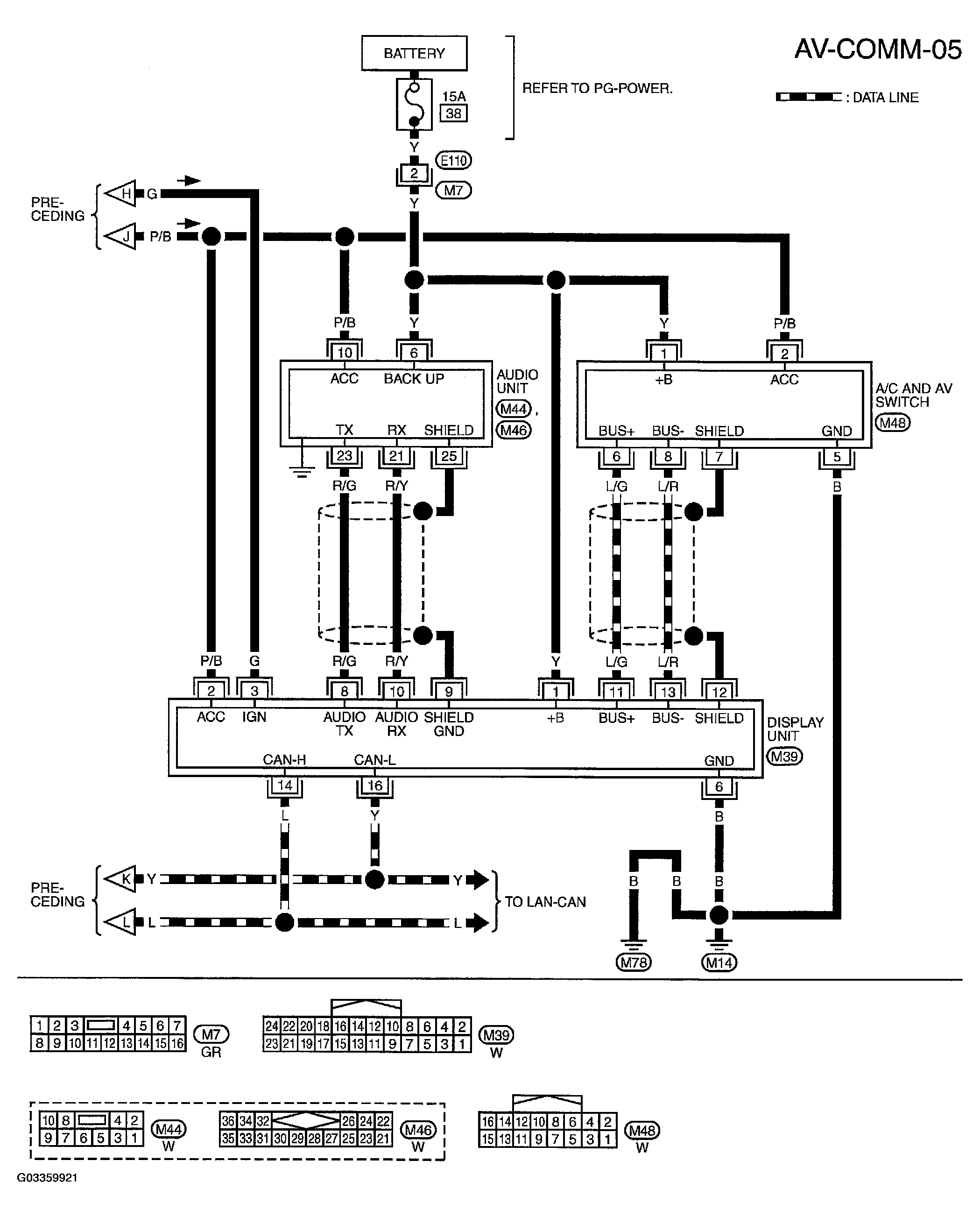

Fig 2: Wiring Diagram - Communication System - AV-COMM-05

Courtesy of NISSAN MOTOR CO., U.S.A.
