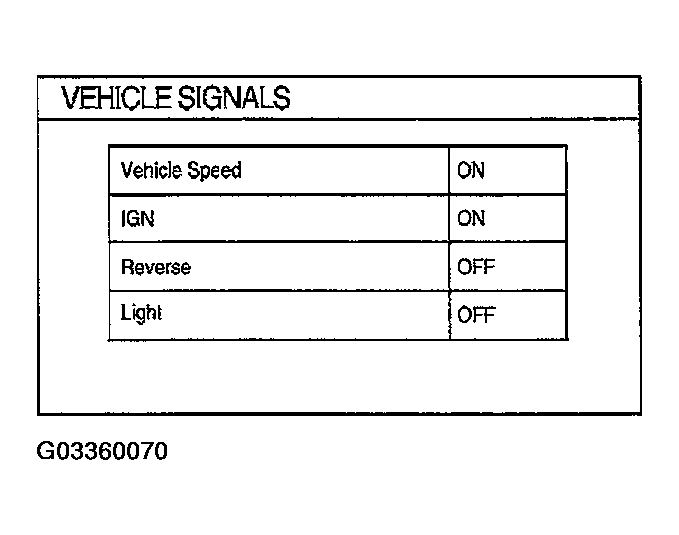

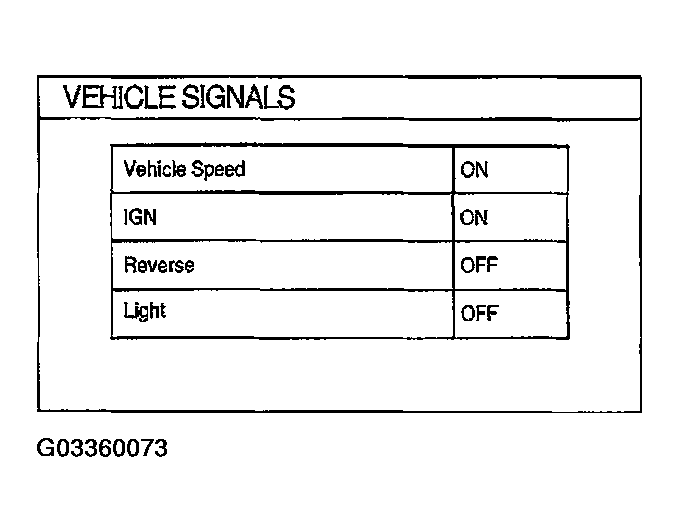

Vehicle Signals
WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
- A comparison check can be made of each actual vehicle signal and the signals recognized by the system.CAUTION: In case of confirming light signal, set D/N mode to ON/OFF of lighting switch (normal setting).
- OFF: D (Day mode)
- ON: N (Night mode)
Unless above setting, light signal (ON/OFF) may not be accurately displayed.
PROBLEM DIAGNOSIS CHART
| Diagnosis item | Display | Condition | Remarks |
|---|---|---|---|
| Vehicle speed | ON | Vehicle speed > 0 km/h (0 MPH) | Changes in indication may be delayed by approx. 1.5 seconds. This is normal. |
| OFF | Vehicle speed = 0 km/h (0 MPH) | ||
| - | Ignition switch in ACC position | ||
| Light | ON | Lighting switch ON | - |
| OFF | Lighting switch OFF | ||
| IGN | ON | Ignition switch ON | - |
| OFF | Ignition switch ACC or OFF | ||
| Reverse | ON | Selector lever in R position | Changes in indication may be delayed by approx. 1.5 seconds. This is normal. |
| OFF | Selector lever in other than R position | ||
| - | Ignition switch in ACC position |
- If vehicle speed is NG, refer to VEHICLE SPEED SIGNAL CHECK FOR DISPLAY CONTROL UNIT .
- If light is NG, refer to ILLUMINATION SIGNAL CHECK FOR DISPLAY CONTROL UNIT .
- If IGN is NG, refer to IGNITION SIGNAL CHECK FOR DISPLAY CONTROL UNIT .
- If reverse is NG, refer to REVERSE SIGNAL CHECK FOR DISPLAY CONTROL UNIT .
- A comparison check can be made of each actual vehicle signal and the signals recognized by the system.CAUTION: In case of confirming light signal, set D/N mode to ON/OFF of light switch (normal setting).
- OFF: D (Day mode)
- ON: N (Night mode)
Unless above setting, light signal (ON/OFF) may not be accurately displayed.PROBLEM DIAGNOSTICDiagnosis item Display Condition Remarks Vehicle speed ON Vehicle speed > 0 km/h (0 MPH) Changes in indication may be delayed by approx. 1.5 seconds. This is normal. OFF Vehicle speed = 0 km/h (0 MPH) - Ignition switch in ACC position Light ON Lighting switch ON - OFF Lighting switch OFF IGN ON Ignition switch ON - OFF Ignition switch ACC or OFF Reverse ON Selector lever in R position Changes in indication may be delayed by approx. 1.5 seconds. This is normal. OFF Selector lever in other than R position - Ignition switch in ACC position - If vehicle speed is NG, refer to VEHICLE SPEED SIGNAL CHECK FOR NAVI CONTROL UNIT .
- If light is NG, refer to ILLUMINATION SIGNAL CHECK FOR NAVI CONTROL UNIT .
- If IGN is NG, refer to IGNITION SIGNAL CHECK FOR NAVI CONTROL UNIT .
- If reverse is NG, refer to REVERSE SIGNAL CHECK FOR NAVI CONTROL UNIT .
