Map Display

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Function of each icon is as follows:

Azimuth indication.
Position marker.
- The tip of the arrow shows the current location. The shaft of the arrow indicates the direction in which the vehicle is traveling.
- GPS reception signal (indicates current reception conditions).
- Distance display (shows the distance in a reduced scale).

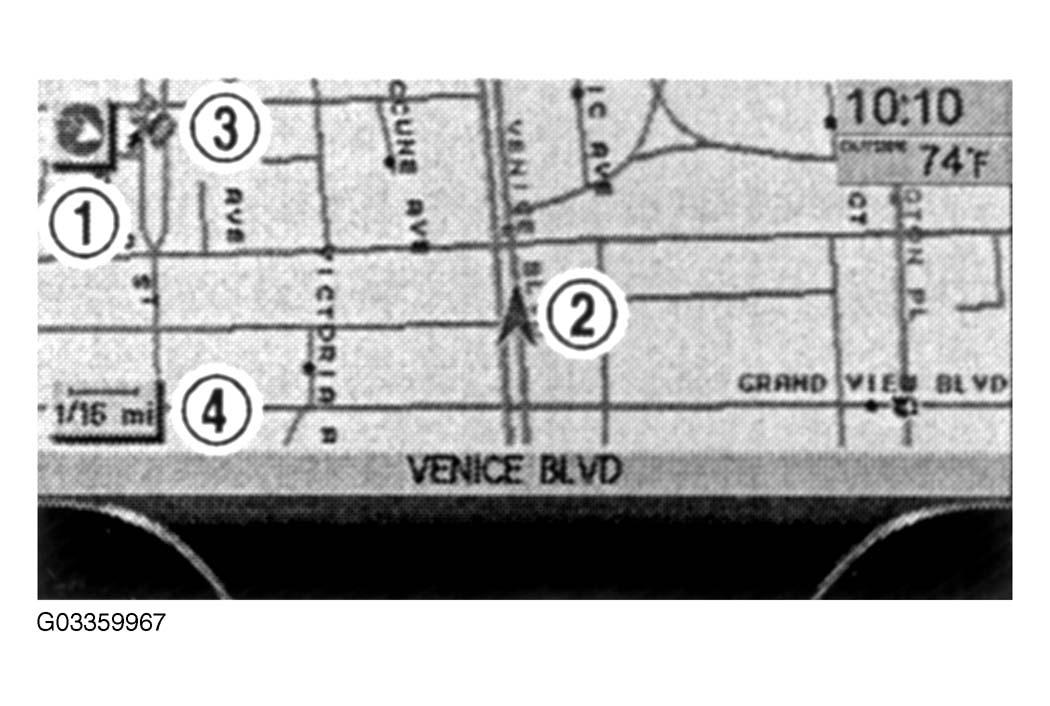

Fig 1: Identifying Icons On Birdview Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
