Warning Indications
WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
Warning signal (Door switch signal) is received from BCM through CAN communication line.

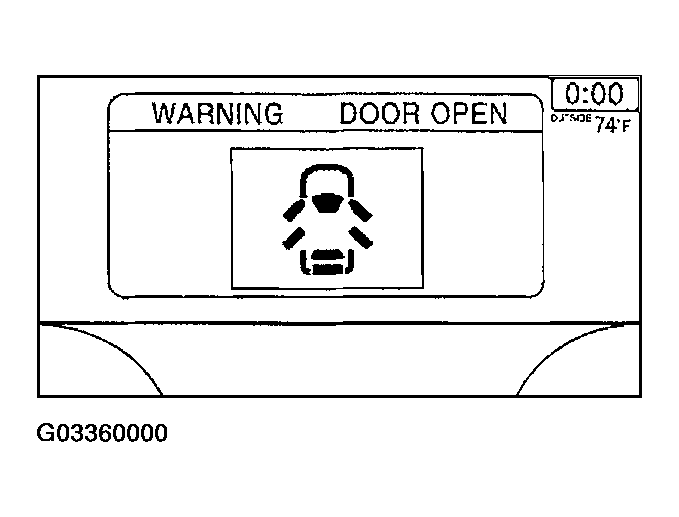

WARNING INDICATIONS CHART
| Warning indicators | Warning lamps in Instrument panel | Warning detection and cancel conditions | Cases of malfunction | |
|---|---|---|---|---|
| DOOR OPEN | Door | Detection condition | Vehicle is running [approx. 5 km/h (3 MPH) or faster] and door ajar of any of the doors is detected. | Door is open |
| Cancel condition | Vehicle is stopped and all the doors lock. | |||
