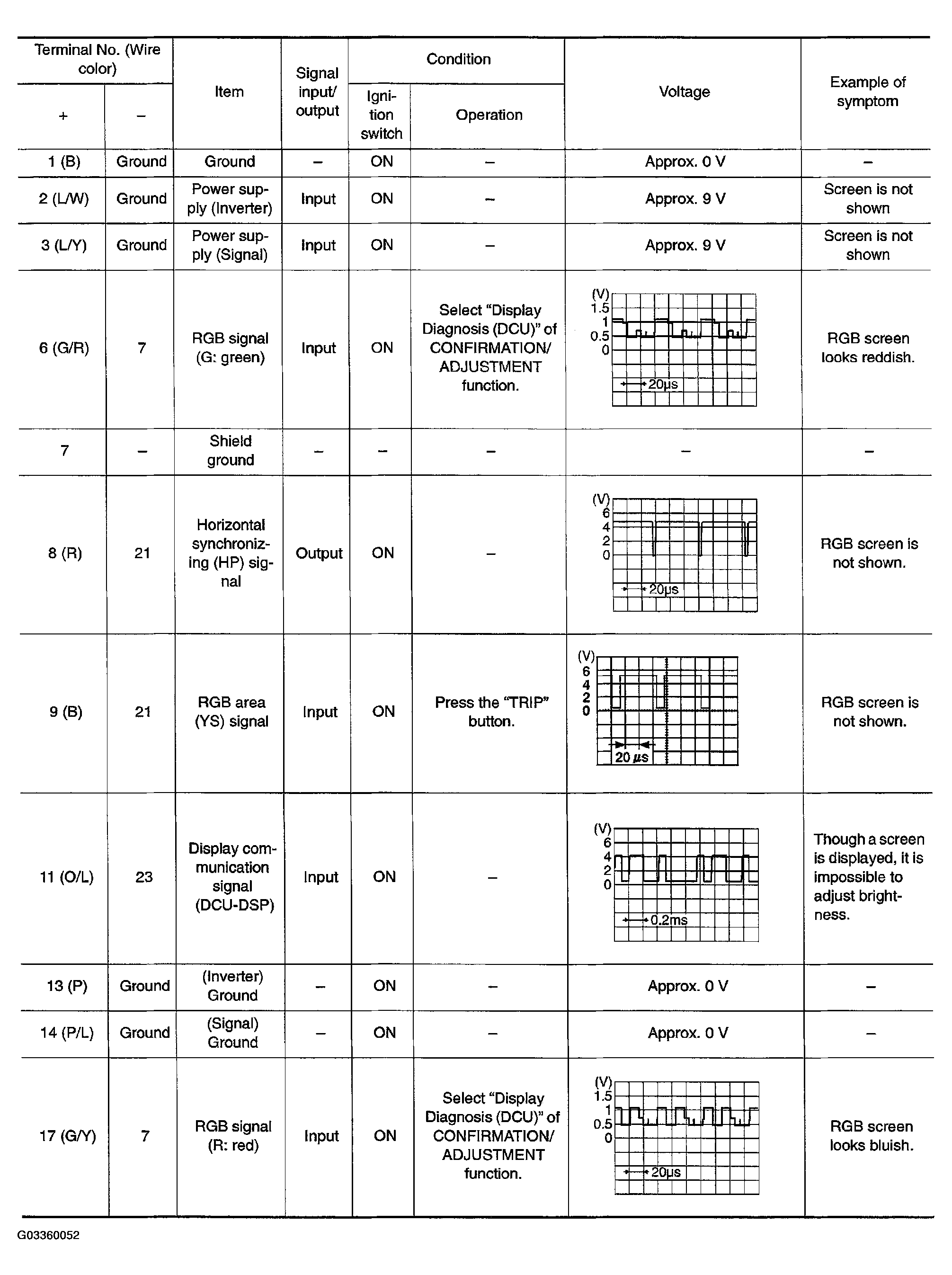

Fig 1: Display Terminals And Reference Value Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

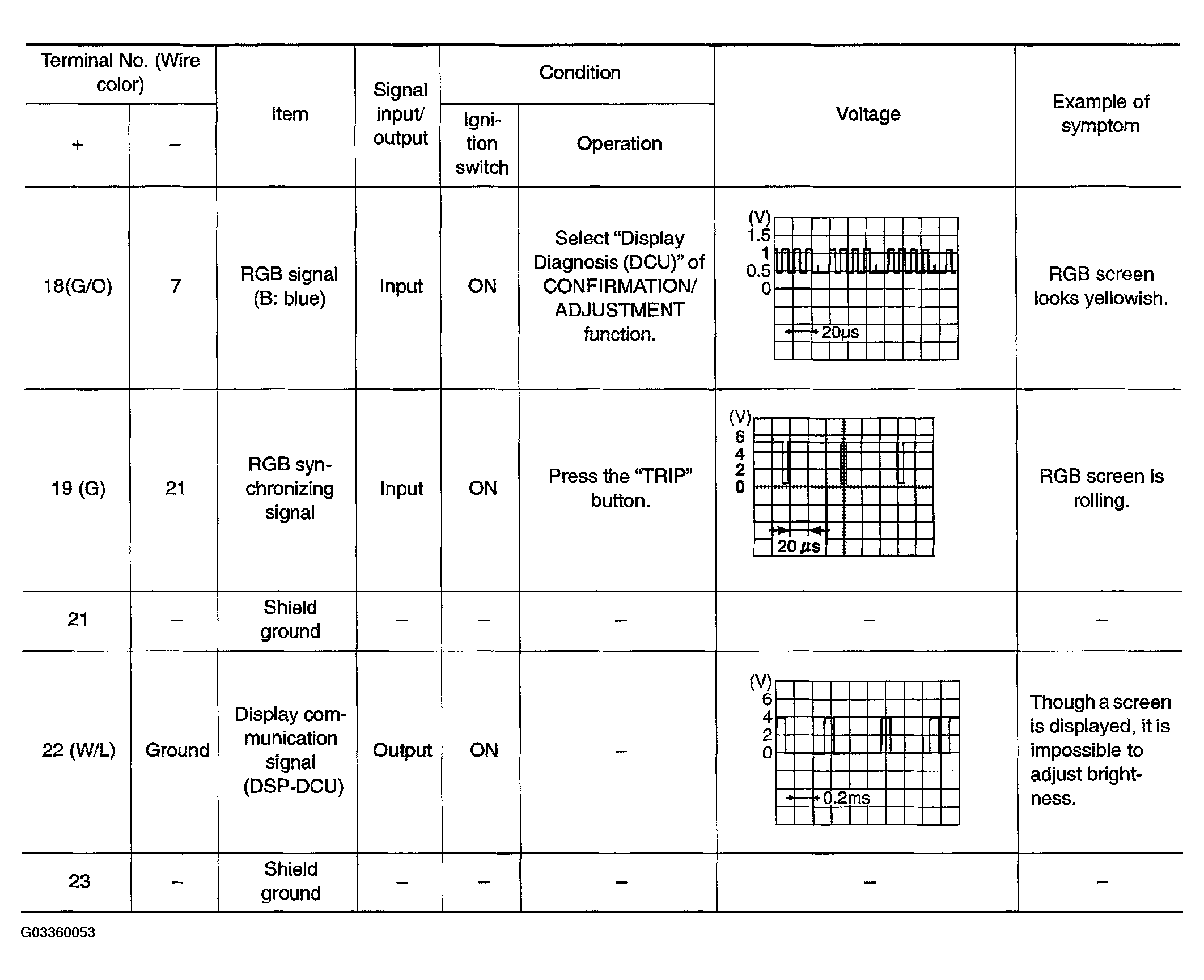

Fig 2: Display Terminals And Reference Value Chart (2 Of 2)
