Method B

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove No. 1 ignition coil.

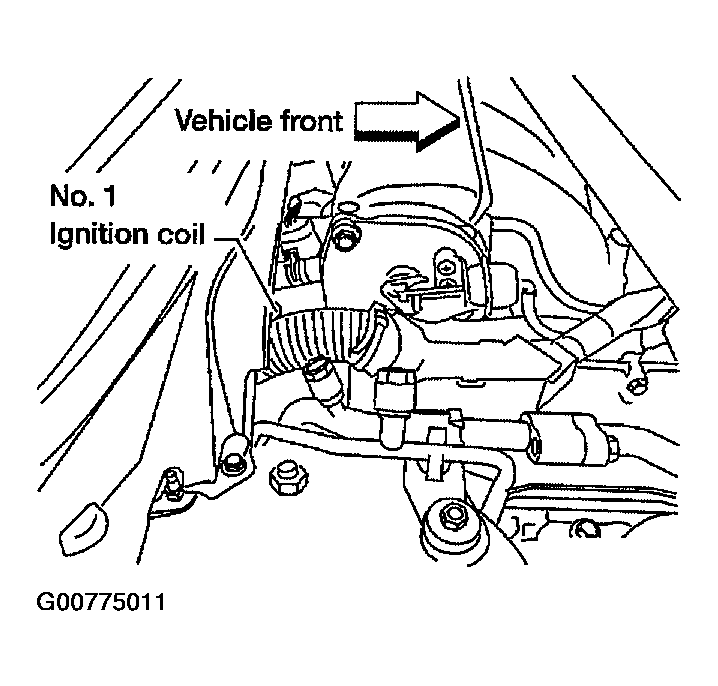

    Fig 1: Removing No. 1 Ignition Coil
    G00775011Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Connect No. 1 ignition coil and spark plug with suitable high-tension wire as shown, and attach timing light clamp to this wire.

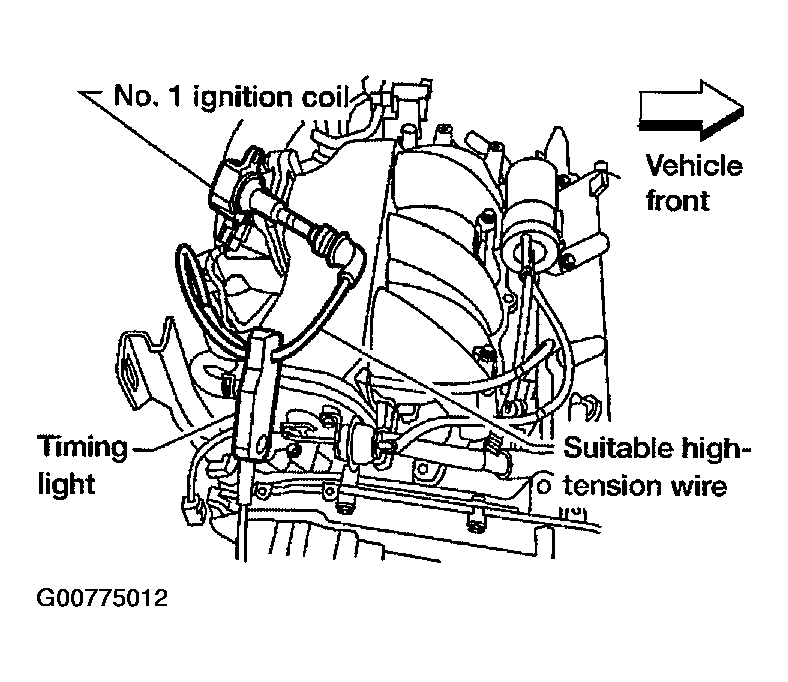

    Fig 2: Connecting No. 1 Ignition Coil And Spark Plug With Suitable High-Tension Wire
    G00775012Courtesy of NISSAN MOTOR CO., U.S.A.

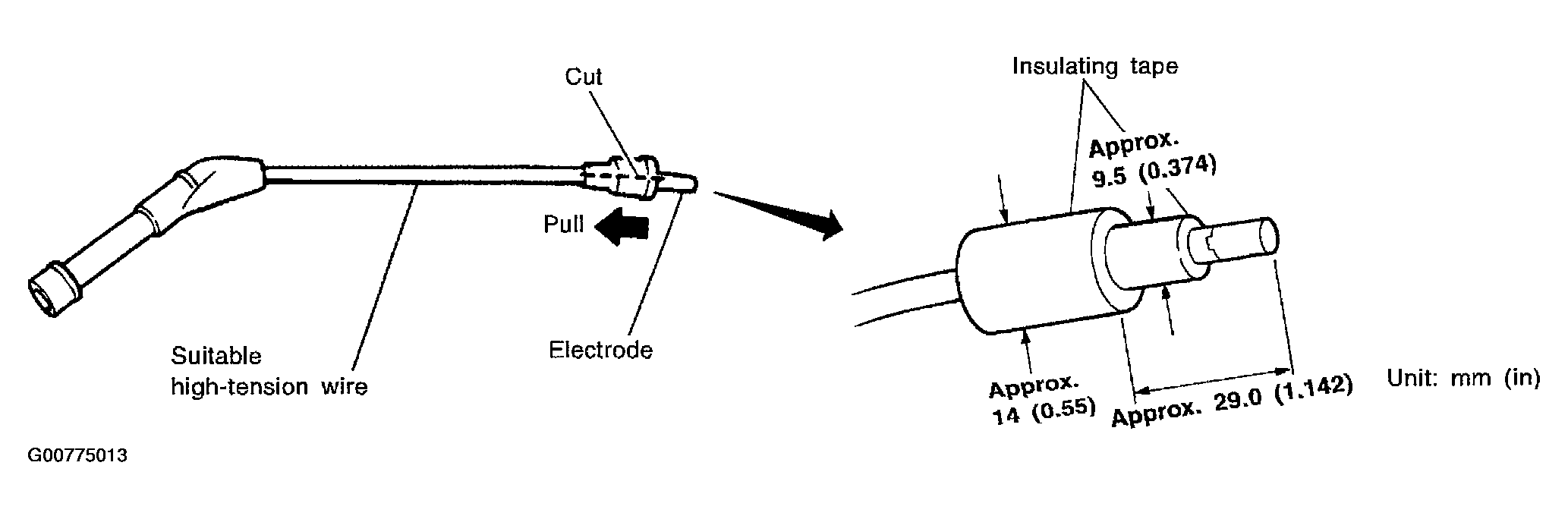

    Fig 3: Identifying High-Tension Wire
    G00775013Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Check ignition timing.

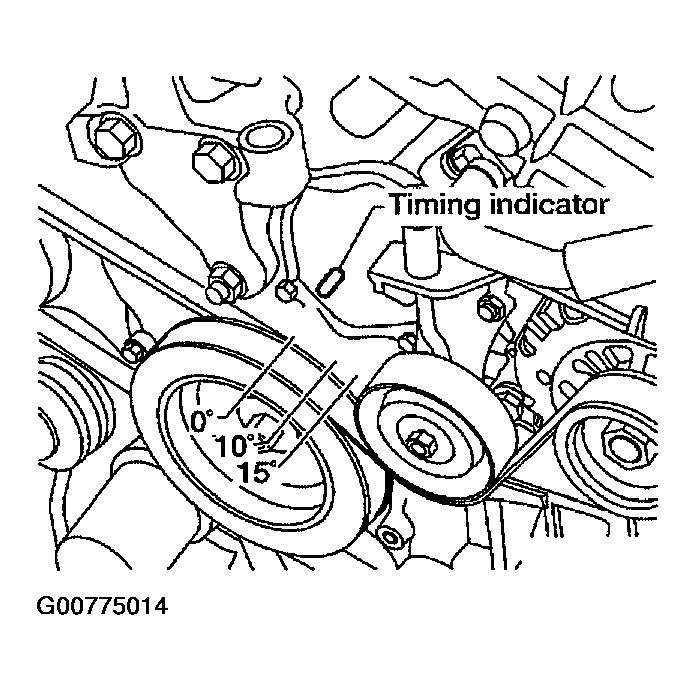

    Fig 4: Checking Ignition Timing
    G00775014Courtesy of NISSAN MOTOR CO., U.S.A.
