With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open engine hood.
  2. Start engine and warm it up to normal operating temperature.
  3. Turn ignition switch OFF and wait at least 10 seconds.
  4. Turn ignition switch ON again and select "DATA MONITOR" mode with CONSULT-II.
  5. Start engine and run it for at least 1 minute at idle speed.
  6. If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE  .

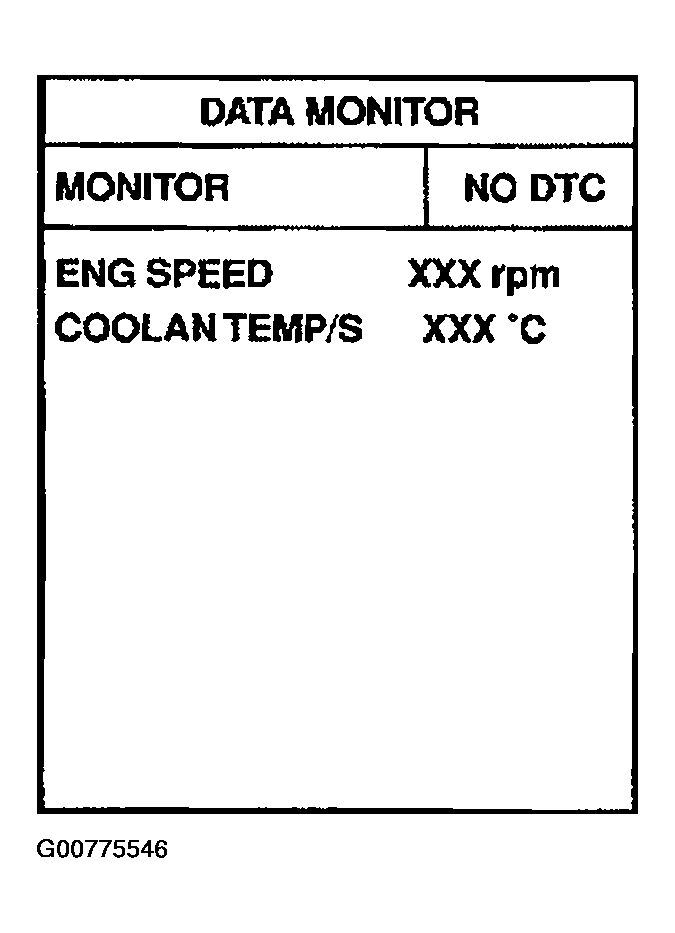

    Fig 1: Displaying Data Monitor Screen
    G00775546Courtesy of NISSAN MOTOR CO., U.S.A.
