System Description

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

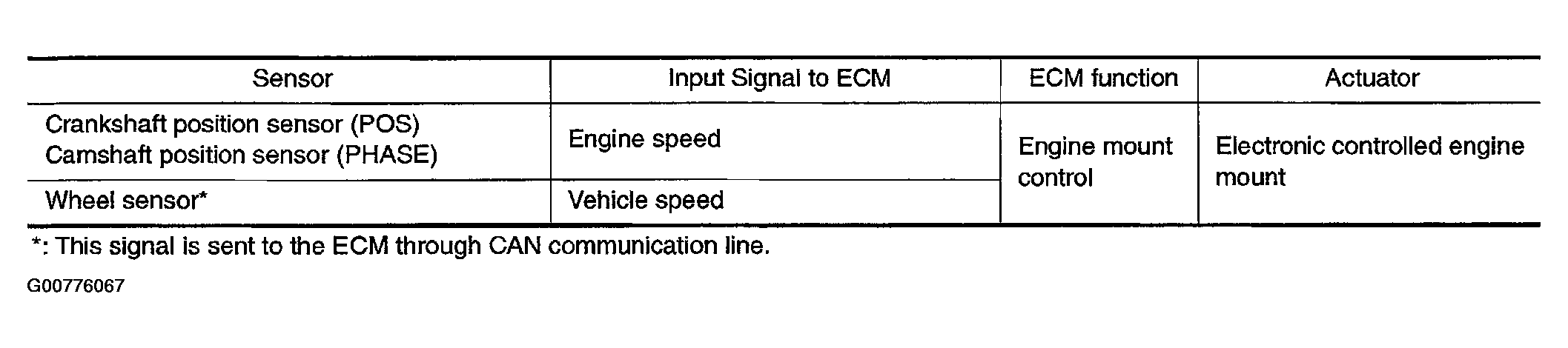

Fig 1: Electronic Controlled Engine Mount System Description

Courtesy of NISSAN MOTOR CO., U.S.A.

The ECM controls the engine mount operation corresponding to the engine speed and the vehicle speed. The control system has 2-step control [Soft/Hard]

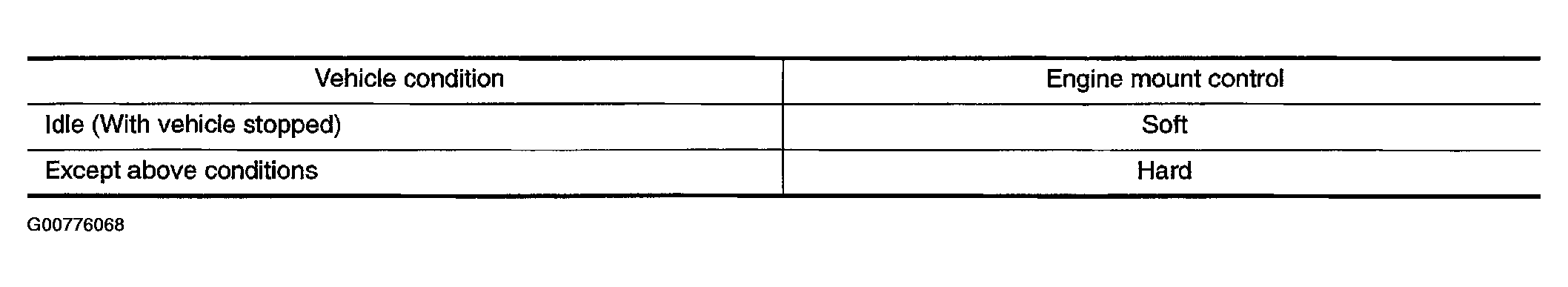

Fig 2: Vehicle Item Condition

Courtesy of NISSAN MOTOR CO., U.S.A.
