Removal and Installation: Notes
WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

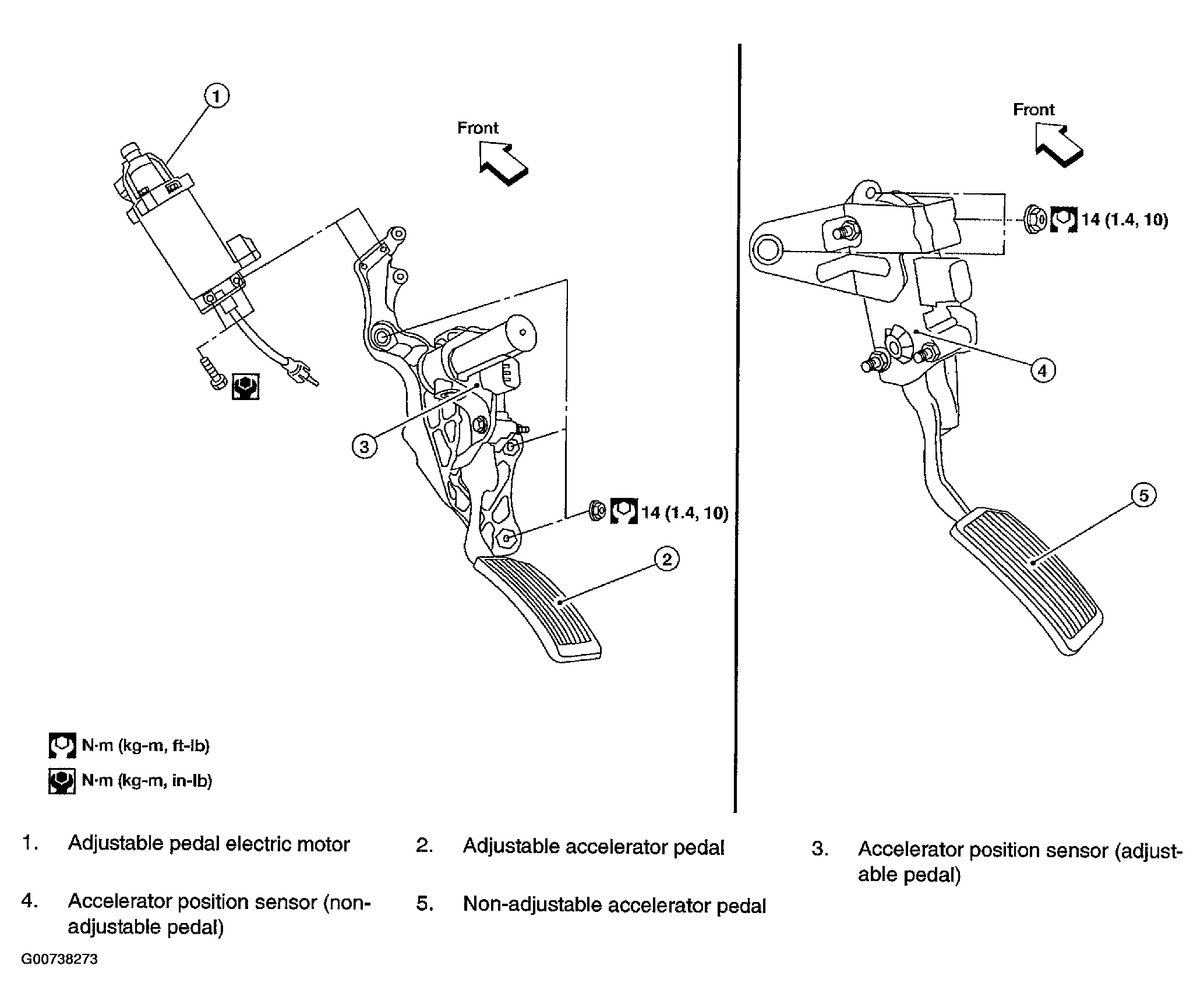

Adjustable and Non-adjustable Accelerator Pedal
- Adjustable pedal electric motor
- Adjustable accelerator pedal
- Accelerator position sensor (adjustable pedal)
- Accelerator position sensor (non-adjustable pedal)
- Non-adjustable accelerator pedal
CAUTION:
- Before removal and installation the accelerator and brake pedals must be in the frontmost position. This is to align the base position of the accelerator and brake pedals (adjustable type only).
- Do not disassemble the accelerator pedal assembly.
- Do not remove the accelerator pedal position sensor from the accelerator pedal bracket.
- Do not disassemble the accelerator pedal adjusting mechanism (adjustable type only).
- Avoid damage from dropping the accelerator pedal assembly during handling.
- Keep the accelerator pedal assembly away from water.
