Key Fob Id Set Up With Consult-II

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • If a key fob is lost, the ID code of the lost key fob must be erased to prevent unauthorized use. A specific ID code can be erased with CONSULT-II. However, when the ID code of a lost key fob is not known, all controller ID codes should be erased. After all ID codes are erased, the ID codes of all remaining and/or new key fobs must be re-registered.
  • When registering an additional key fob, the existing ID codes in memory may or may not be erased. If five ID codes are stored in memory when an additional code is registered, only the oldest code is erased. If less than five codes are stored in memory when an additional code is registered, the new ID code is added and no ID codes are erased.
  • Entry of a maximum of five ID codes is allowed. When more than five codes are entered, the oldest ID code will be erased.
  • Even if the same ID code that is already in memory is input, the same ID code can be entered. The code is counted as an additional code.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry on CAN communication.
  1. Turn ignition switch OFF.
  2. Connect "CONSULT-II" to the data link connector.

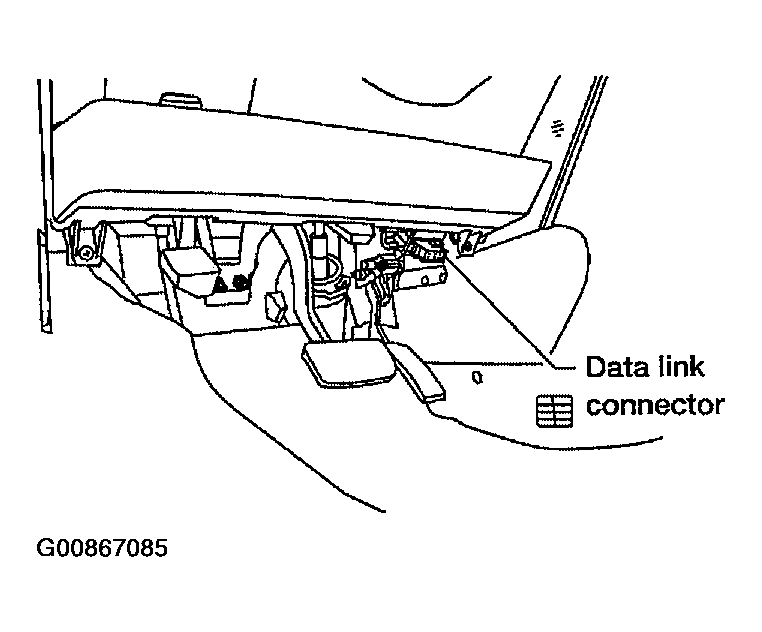

    Fig 1: Connecting "Consult-II" To The Data Link Connector
    G00867085Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch ON.
  4. Touch "START (NISSAN BASED VHCL)".

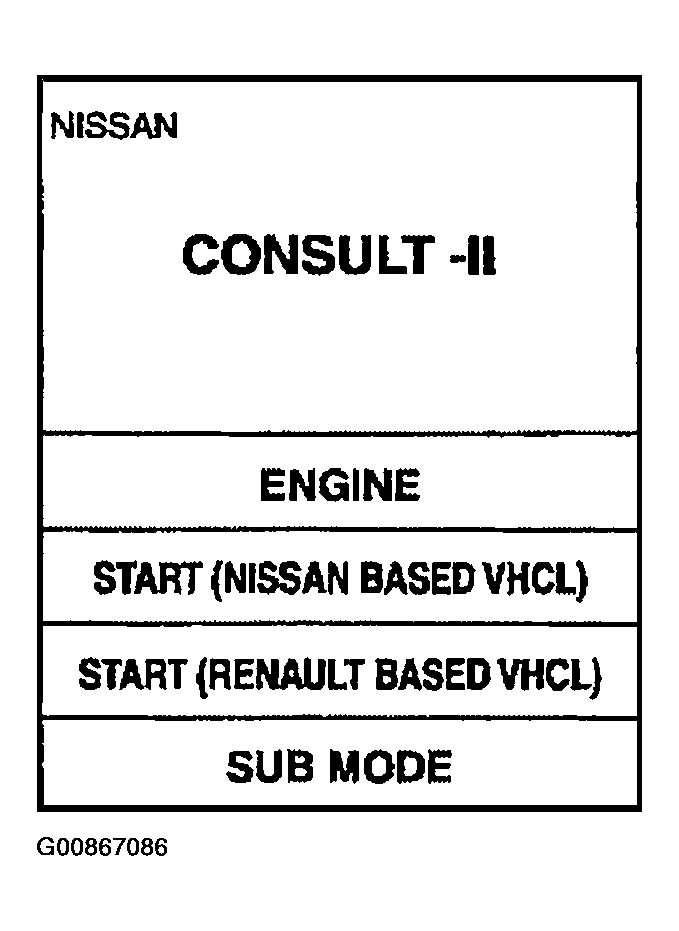

    Fig 2: Touch "Start (Nissan Based VHCL)" Display
    G00867086Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "BCM".

    If "BCM" is not indicated, refer to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

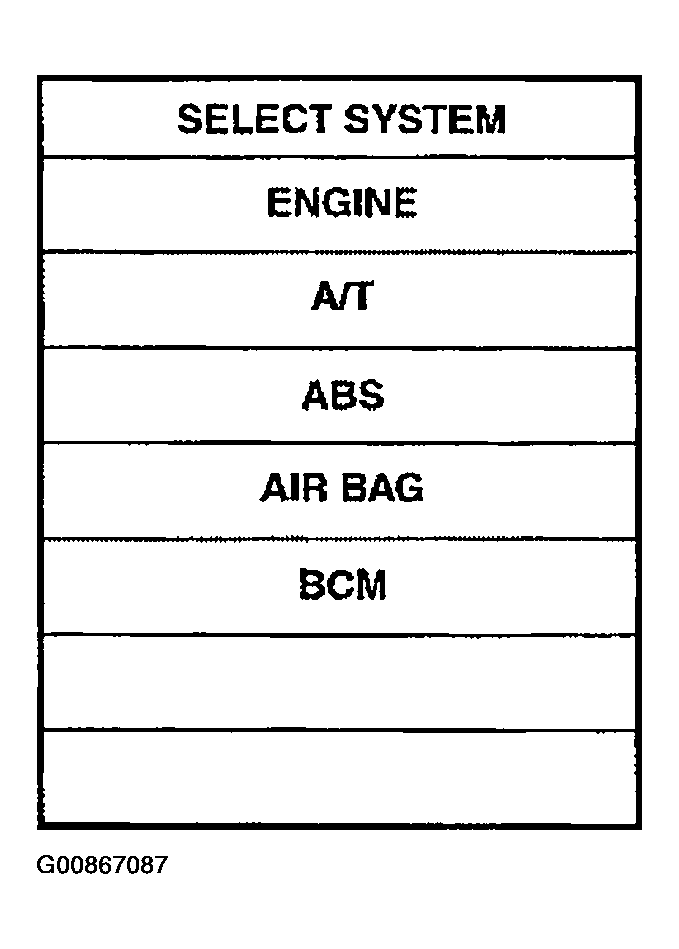

    Fig 3: Touch "BCM" Display
    G00867087Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "MULTI REMOTE ENT".

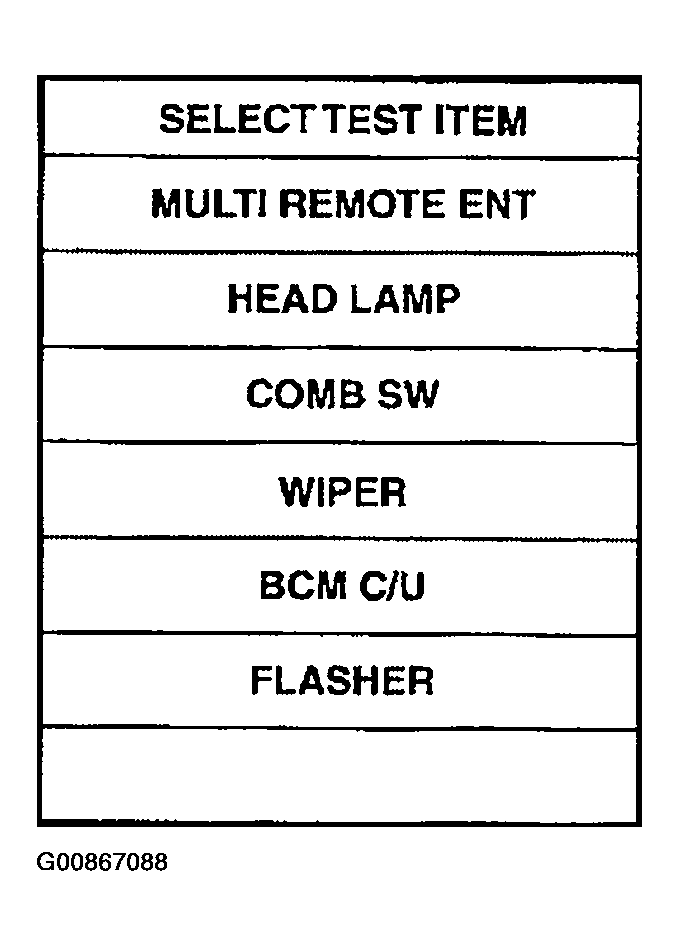

    Fig 4: Touch "Multi Remote ENT" Display
    G00867088Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch "WORK SUPPORT".

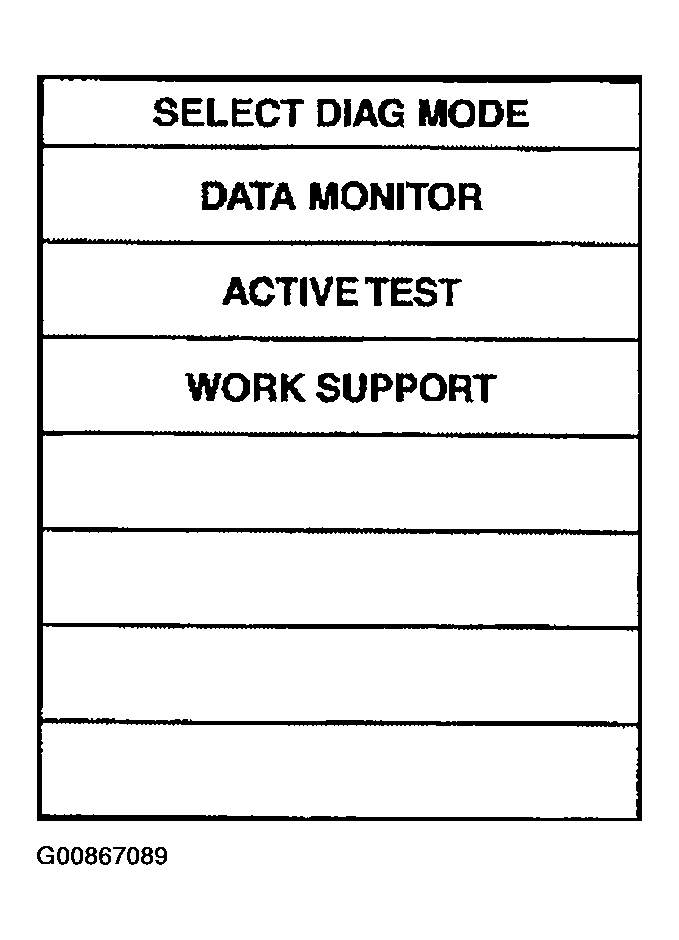

    Fig 5: Touch "Work Support" Display
    G00867089Courtesy of NISSAN MOTOR CO., U.S.A.
  8. The items are shown on the figure at left can be set up.
    • "REMO CONT ID CONFIR"

      Use this mode to confirm if a key fob ID code is registered or not.

    • "REMO CONT ID REGIST"

      Use this mode to register a key fob ID code.

      Fig 6: "REMO CONT ID REGIST" Display
      G00867090Courtesy of NISSAN MOTOR CO., U.S.A.
      NOTE: Register the ID code when key fob or BCM is replaced, or when additional key fob is required.
    • "REMO CONT ID ERASUR" Use this mode to erase a key fob ID code.
