Terminals and Reference Value for Display Control unit
WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

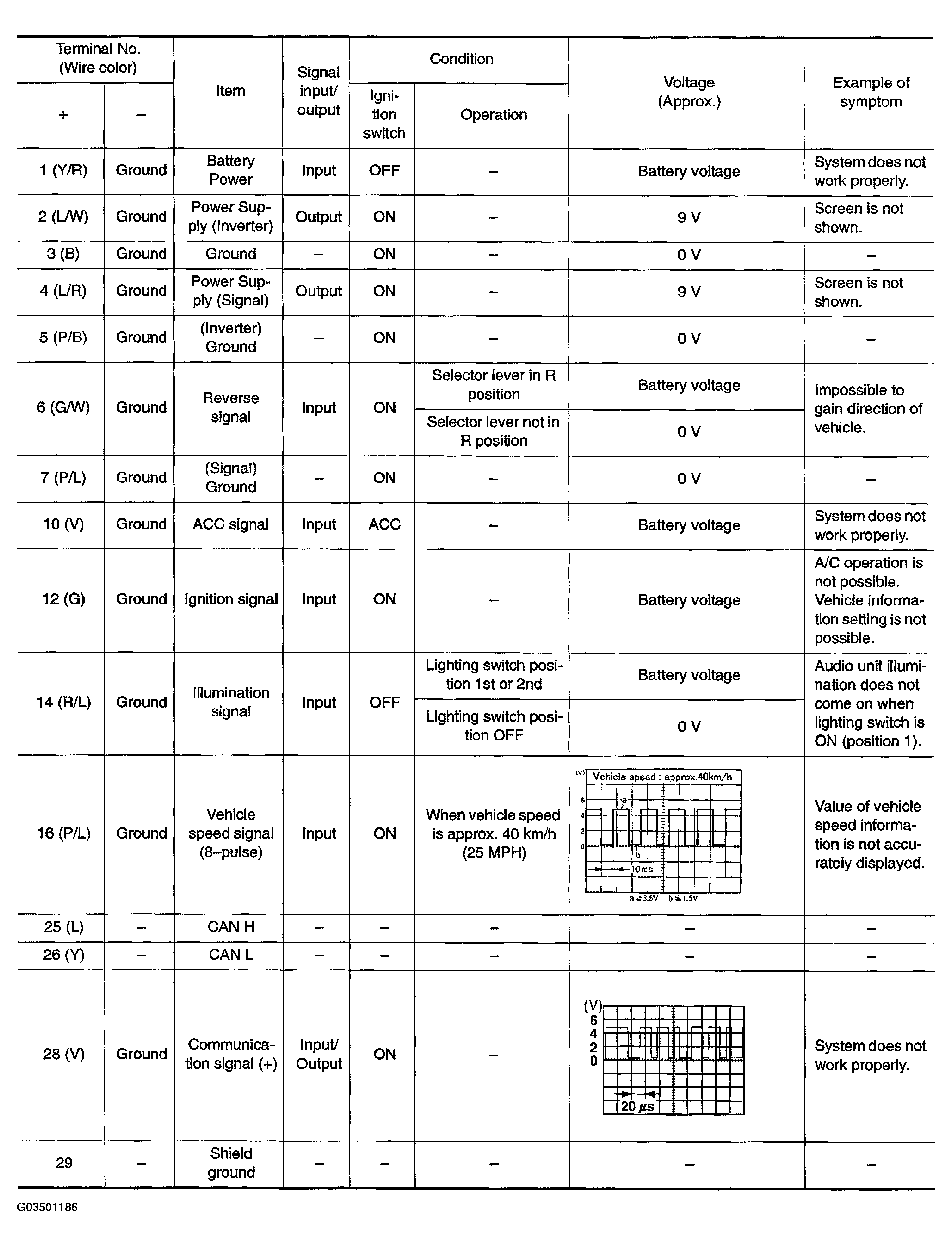

Fig 1: Terminals And Reference Value For Display Control Unit (1 of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

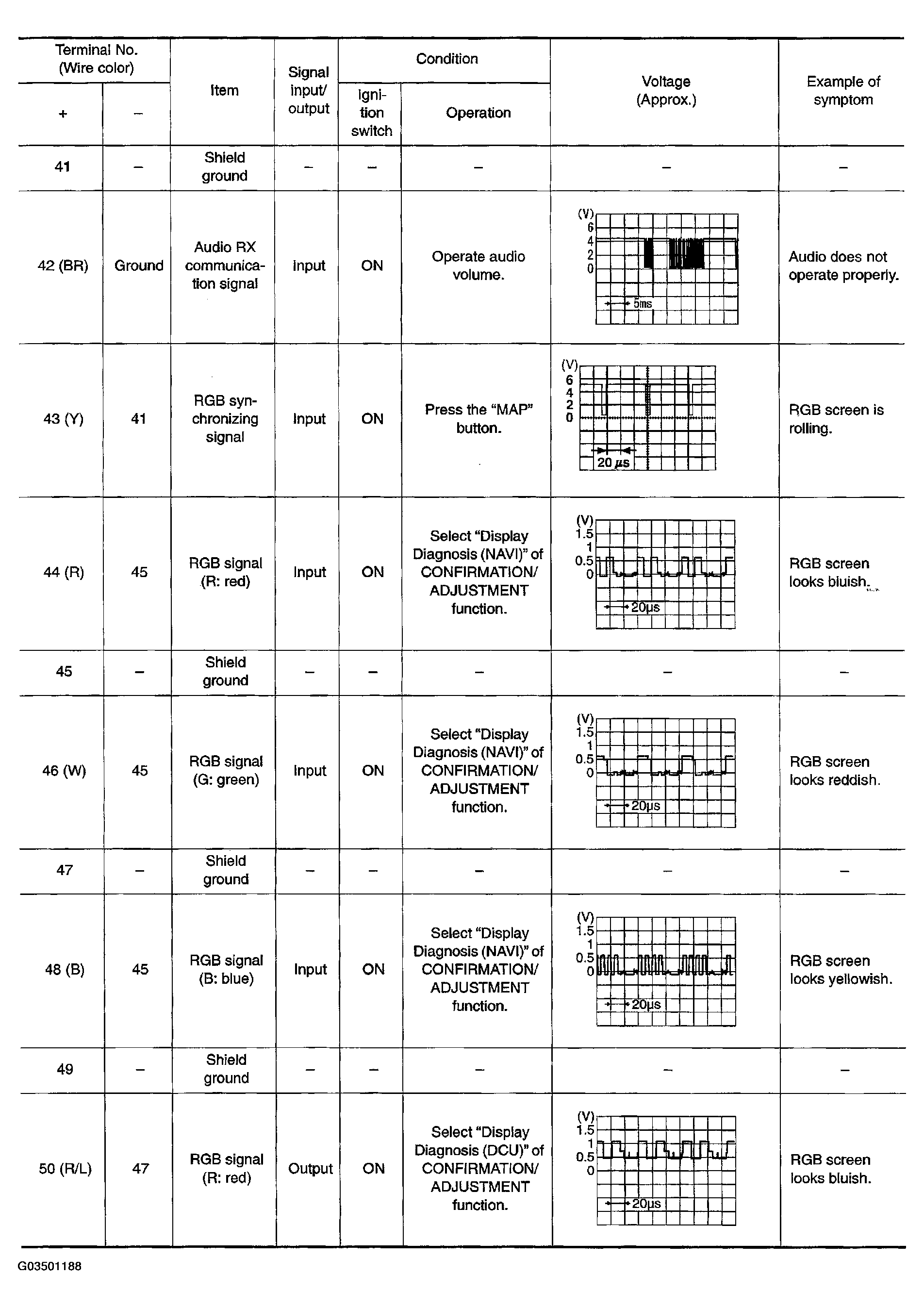

Fig 2: Terminals And Reference Value For Display Control Unit (2 of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

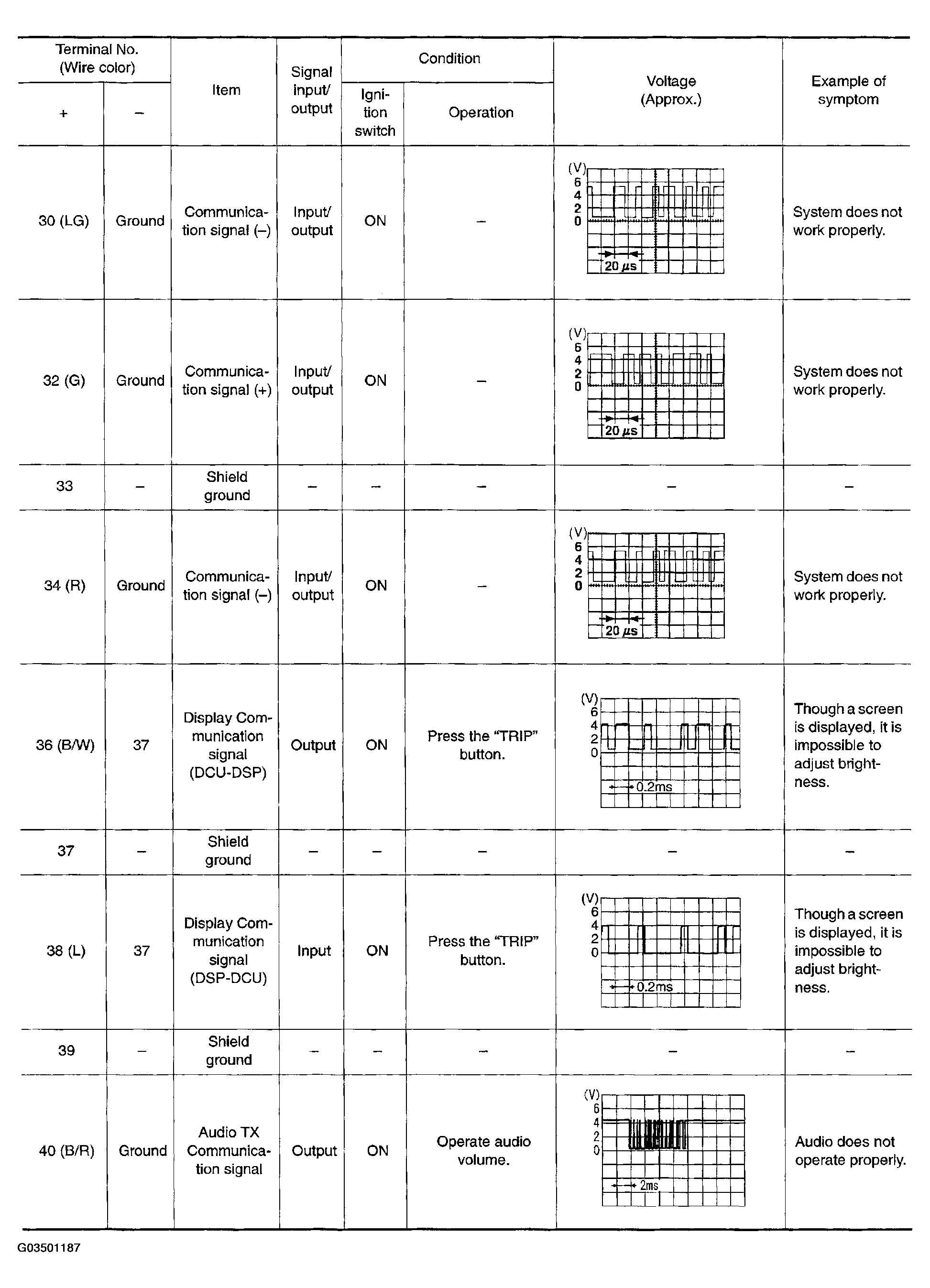

Fig 3: Terminals And Reference Value For Display Control Unit (3 of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

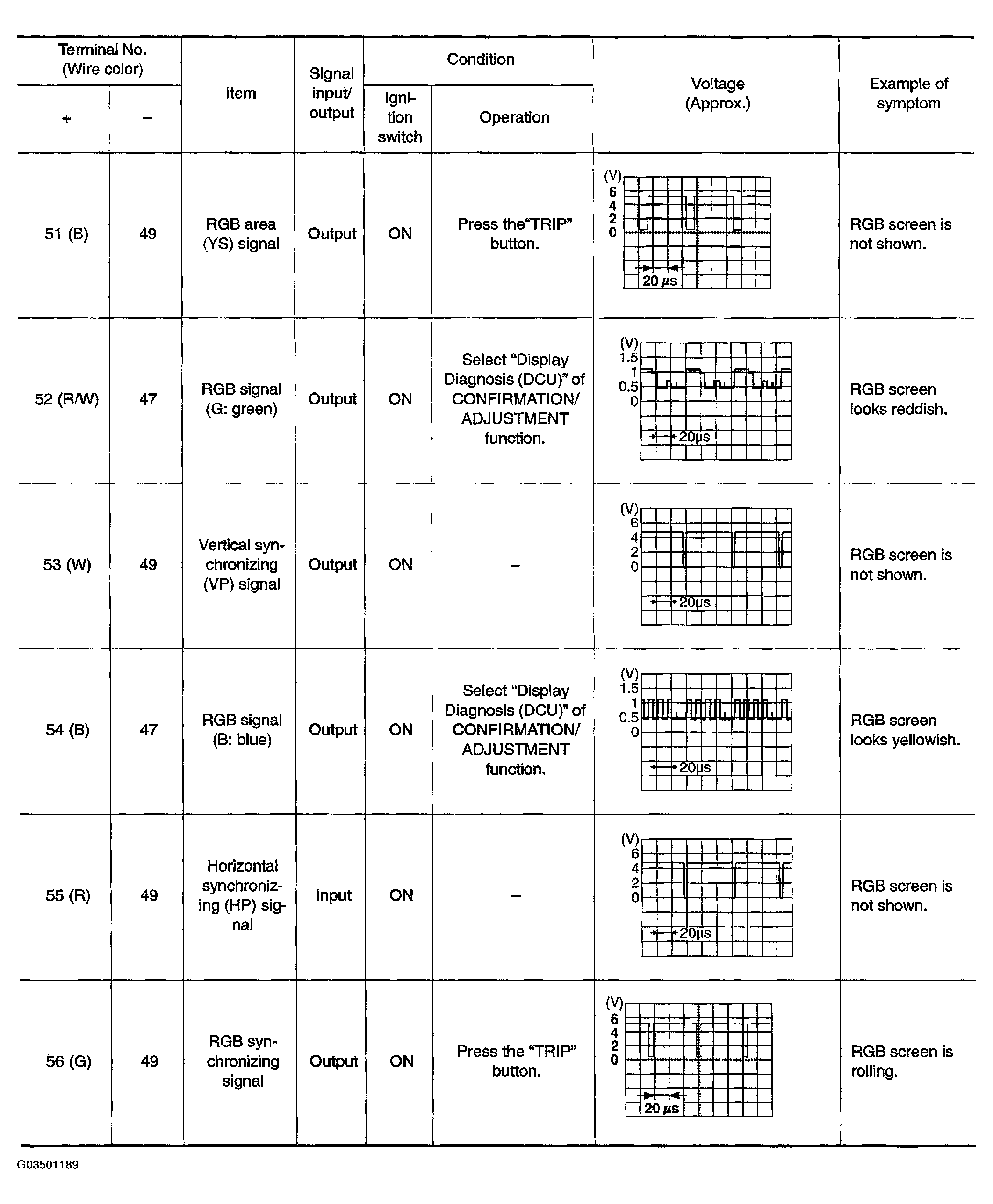

Fig 4: Terminals And Reference Value For Display Control Unit (4 of 4)
