ASCD Brake Switch

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF.
Disconnect ASCD brake switch harness connector.
Check continuity between ASCD brake switch terminals 1 and 2 under the following conditions.

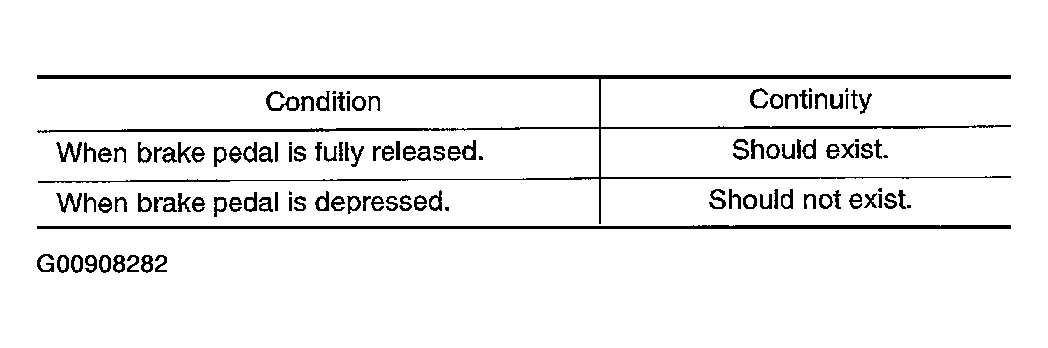

Fig 1: Continuity Specification Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, adjust ASCD brake switch installation, refer to BRAKE PEDAL FREE PLAY , and perform step 3 again.

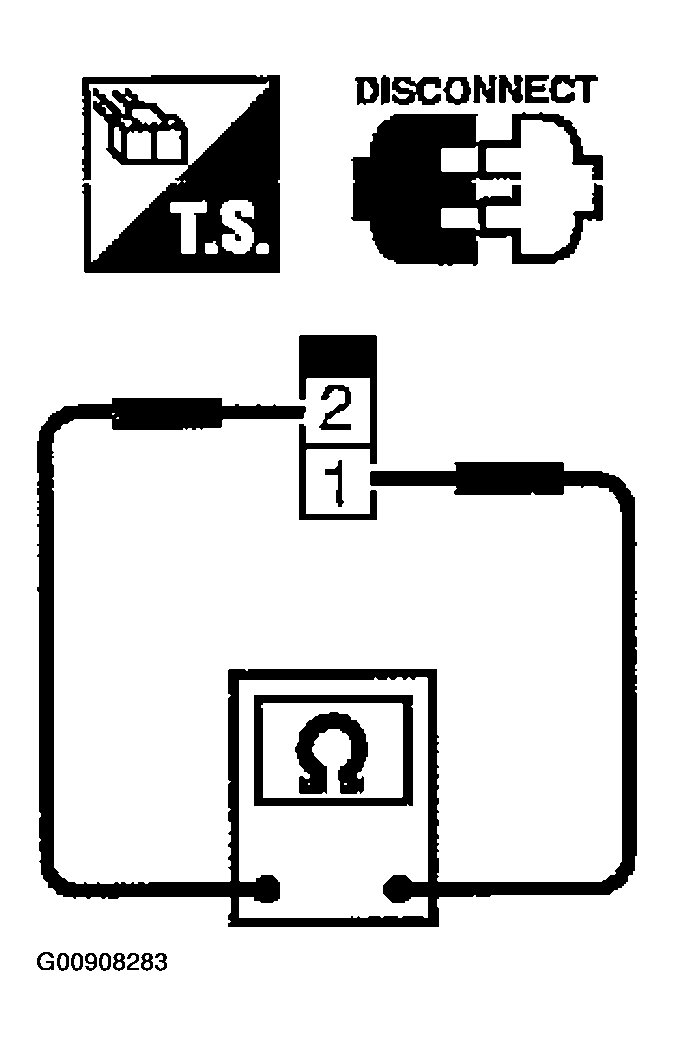

Fig 2: Checking Continuity Between ASCD Brake Switch Terminals 1 And 2

Courtesy of NISSAN MOTOR CO., U.S.A.
