Stop Lamp Switch

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF.
Disconnect stop lamp switch harness connector.
Check continuity between stop lamp switch terminals 1 and 2 under the following conditions.

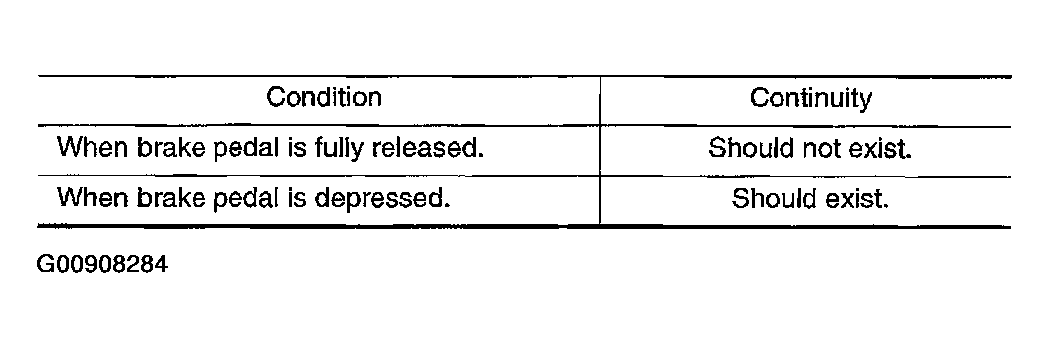

Fig 1: Continuity Specification Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, adjust stop lamp switch installation, refer to BRAKE PEDAL FREE PLAY , and perform step 3 again.

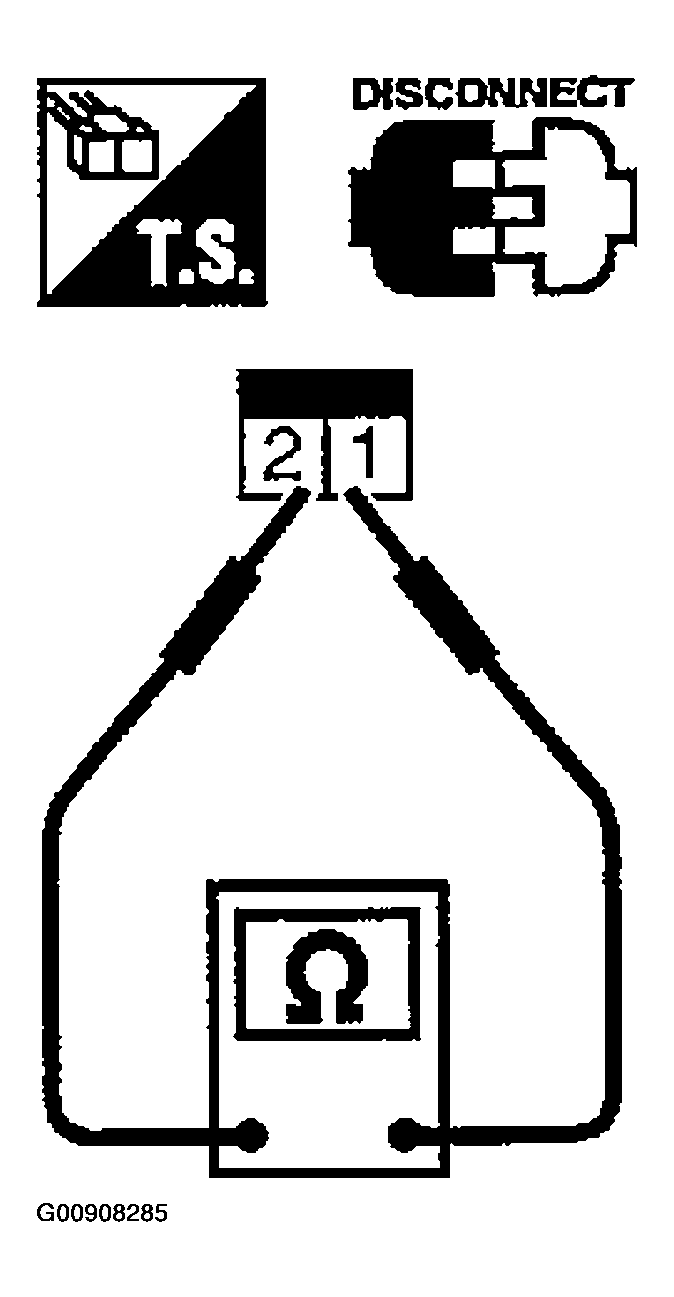

Fig 2: Checking Continuity Between Stop Lamp Switch Terminals 1 And 2

Courtesy of NISSAN MOTOR CO., U.S.A.
